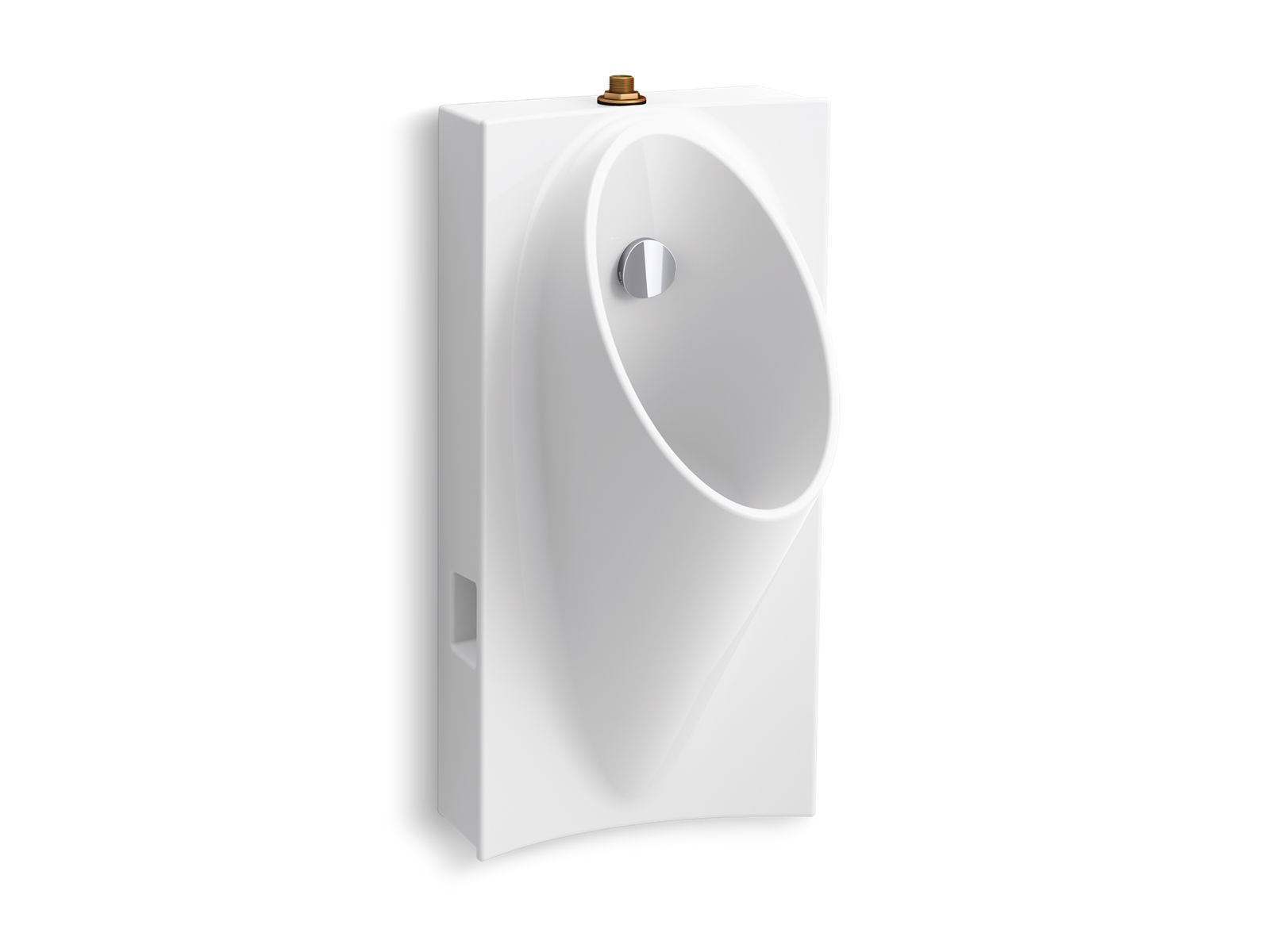

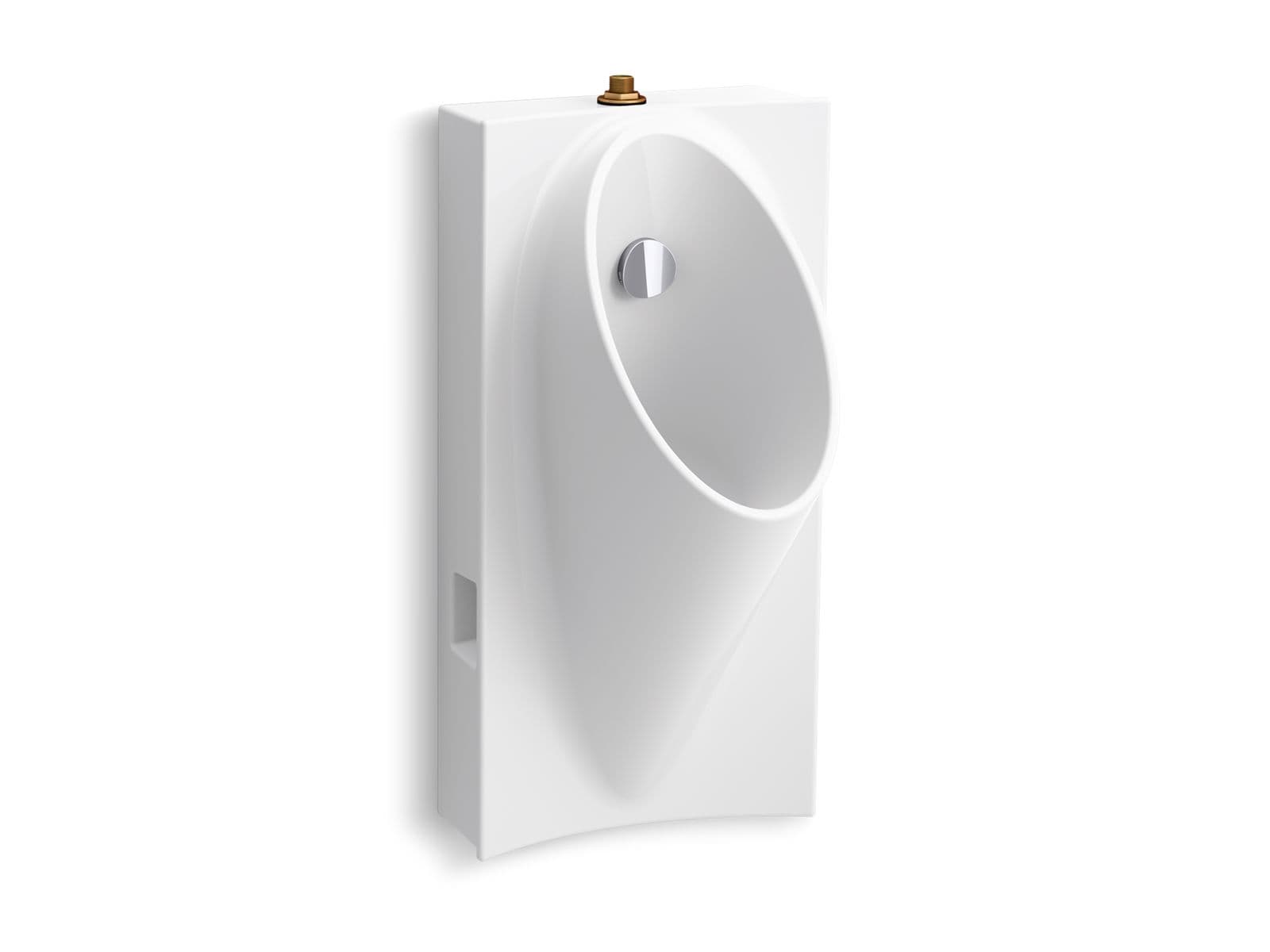

Kohler Steward Wall Mount Urinal - Washout - Top Spud - 0.125 GPF in White
Item #: 5244-ET-0
UPC: 885612211842
Finish: White
Offered in 2 colors
Free Shipping on LTL freight orders over $99
Overview
Steward® Washout half-stall 0.125 gpf urinal, top spud
Washout half-stall 0.125 gpf urinal, top spud
Features
- Revolutionary funnel design virtually eliminates splashback
- KOHLER-engineered water flushing spreader successfully rinses the inverted back wall, sides, and front of the urinal basin for a more sanitary customer experience
- Ultra-low consumption. Operates at 0.125 gpf (0.47 lpf)
- 3/4" (19 mm) top spud
- Includes removable strainer, 2" outlet spud, universal mounting bracket, and hangers
- Offers 80% water savings compared to standard 1.0-gpf urinals
- This product can help a building earn Water Efficiency points in LEED® Green Building Rating System
- Washout urinal
- 0.125 gpf (0.47 lpf)
- 15-5/8" (397 mm) extended rim
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| GTIN | 00885612211842 |
| Finish | White |
| CALGreen | Yes |
| Shipping | L:19.88"x W:18.63"x H:33.94" 68 lbs. |
| Oversized | Yes |
| Collection | Steward |
| Watersense | Yes |
| Product Type | Wall Mount Urinal |
| Product Style | Contemporary |
| Ansi Compliant | Yes |
| Asme Standards | ASME A112.19.2/CSA B45.1 |
| Prop65 Warning | Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Product Warranty | KOHLER® One-Year Limited Warranty |
| Introduction Date | 8/8/2013 |
| Online Product ID | 556920 |
Dimensions
| Width | 15" |
|---|---|
| Height | 29.625" |
| Length | 15.625" |
| Weight | 68.000 |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #5244-ET-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Kohler Genuine Parts Connector HOSE Service KIT | K-1218574 | $36.01 | |
 | Kohler Genuine Parts Strainer ASSY - Polished Chrome | K-1195702-CP | $29.95 | |

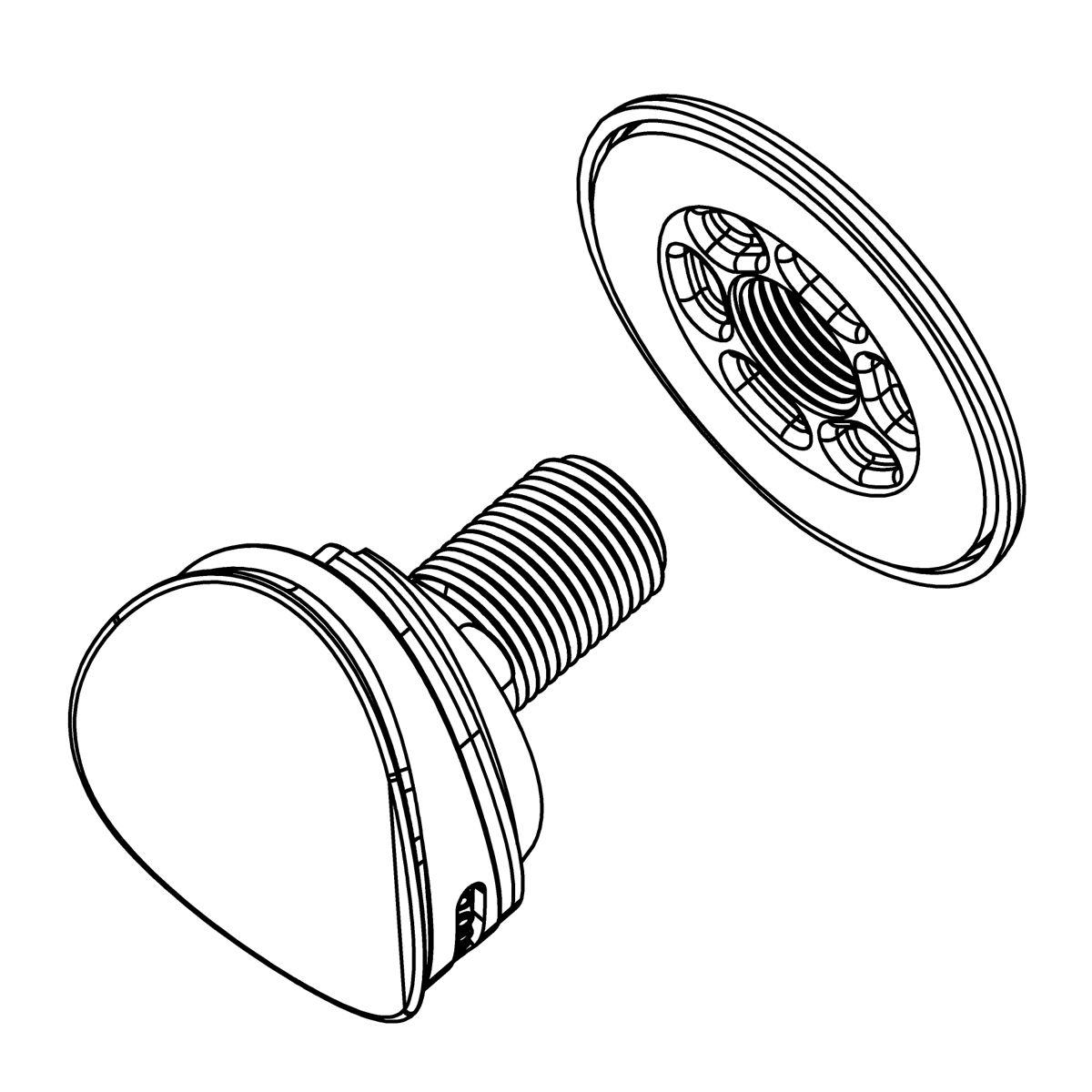

 | Kohler Genuine Parts Urinal Spreader Service KIT - Polished Chrome | K-1218378-CP | $97.11 | |

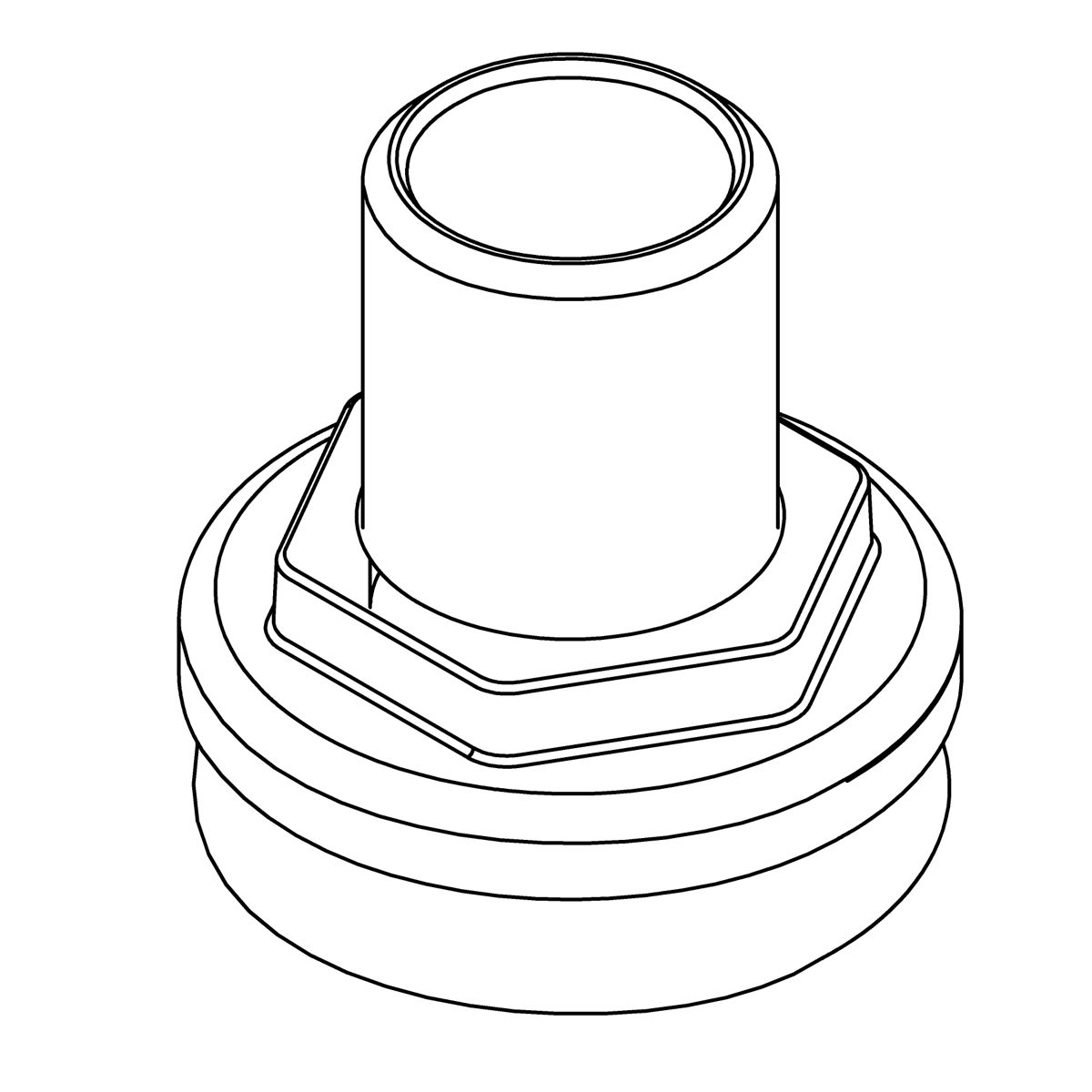

 | Urinal Spud Assembly | K-1212716 | $51.11 | |
