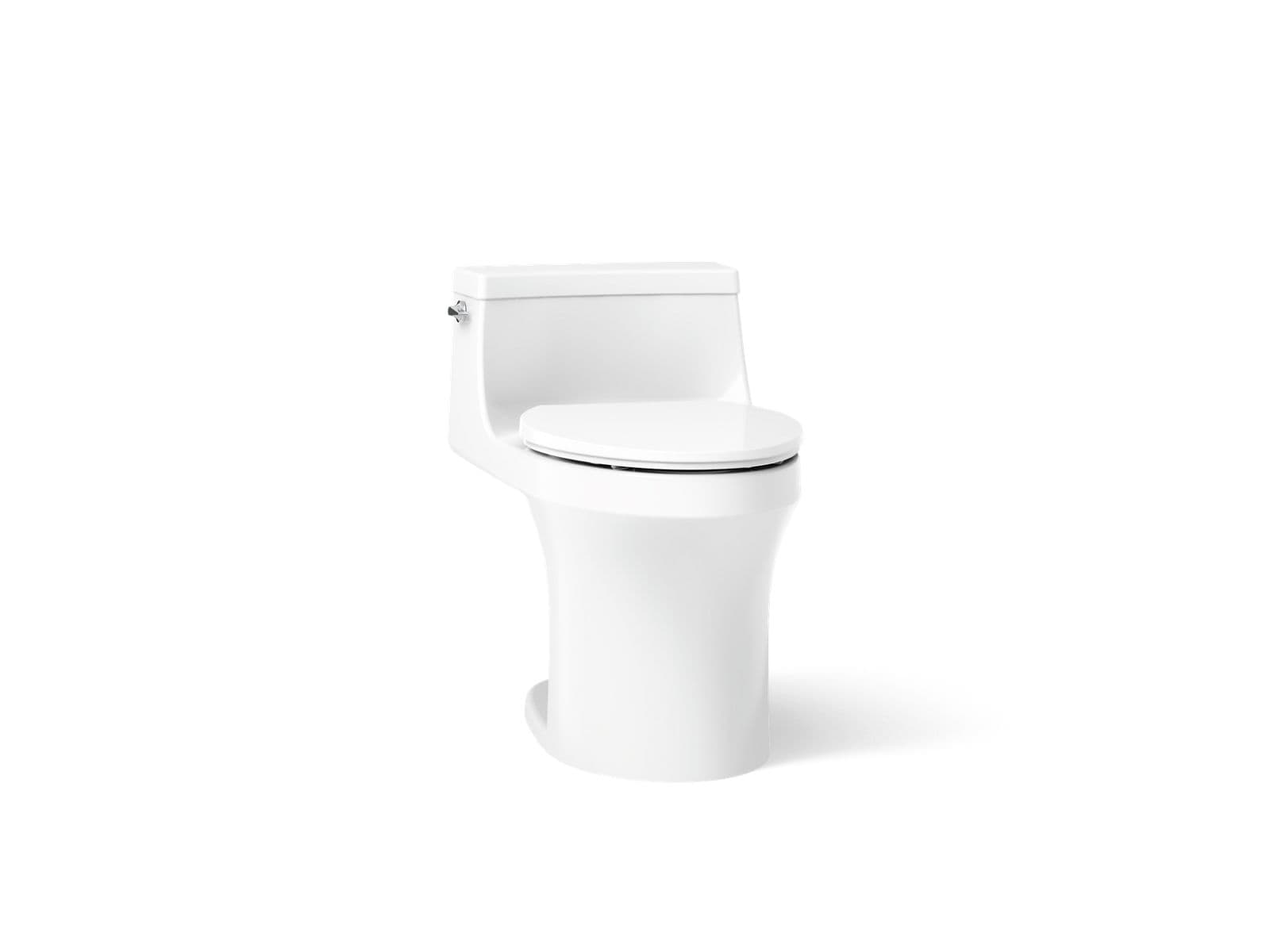

Kohler San Souci One-Piece Compact Elongated Toilet - 1.28 GPF in White
Item #: 5172-0
UPC: 885612356628
Finish: White
Offered in 9 colors
Free Shipping on LTL freight orders over $99
Overview
The KOHLER® San Souci one-piece toilet offers a sleek, contemporary design with a convenient chair-height and elongated bowl for comfortable use. This one-piece elongated toilet features innovative AquaPiston technology, a patented flush engine that delivers a fast, powerful, and virtually plug-free flush. A 1.28-gallon flush provides significant water savings of up to 16,500 gallons per year, compared to a 3.5-gallon toilet, without sacrificing performance.
One-piece compact elongated toilet with concealed trapway, 1.28 gpf
Features
- One-piece toilets integrate the tank and bowl into a seamless, easy-to-clean design
- Compact elongated bowl offers added comfort while occupying the same space as a round-front bowl
- Low-profile design
- Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
- 1.28 gpf (4.8 lpf)
- Concealed trapway and Clean Caps® low-profile bolt caps facilitate easier cleaning and enhance design
- Includes Impro® ReadyLatch® Quiet-Close™ toilet seat
- Left-hand Polished Chrome trip lever
- Easy-to-flush canister design requires less force to actuate than a 3" (76 mm) flapper, and has 90% less exposed seal material which resists conditions that cause wear, tear, shrinkage and swelling
- Eligible for consumer rebates in some municipalities
- 2-1/8" (54 mm) fully glazed trapway
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| GTIN | 00885612356628 |
| Finish | White |
| CALGreen | Yes |
| Shipping | L:31.2"x W:20.9"x H:29.06" 99.55 lbs. |
| Oversized | Yes |
| Collection | San Souci |
| Watersense | Yes |
| Product Type | Floor Mount One Piece Toilet |
| Stock Status | in_stock |
| Csa Compliant | Yes |
| Product Style | Contemporary |
| Asme Standards | ASME A112.19.2/CSA B45.1 |
| Prop65 Warning | Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Introduction Date | 7/11/2014 |
| Online Product ID | 1742082 |
| Freight Policy Type | 4 |
| Release For Shipment | 2014-07-11T00:00:00Z |
Dimensions
| Width | 16.41" |
|---|---|
| Height | 25.32" |
| Length | 27.5" |
| Weight | 99.550 |
| Overall Width Inches | 16-7/16" |
| Overall Height Inches | 25-5/16" |
| Overall Length Inches | 28" |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #5172-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | GASKET KIT | K-1070291 | $2.17 | |
 | Kohler Genuine Parts B5-1271 - Locknut Assy.shank - TWO Piece | K-1057941 | $2.28 | |
 | Kohler Genuine Parts Canister Valve Assy, Service KIT (SO) | K-1237538 | $34.95 | |
 | Kohler Genuine Parts Cover, Toilet TANK - White White | K-1182368-0 | $84.47 | |
 | Kohler Genuine Parts FILL Valve Service KIT (SO) | K-1237539 | $20.91 | |
 | Kohler Genuine Parts FILL Valve Service KIT, 375A HIGH Refill | K-1468016 | $21.13 | |
 | Kohler Genuine Parts LOW Profile BOLT CAP Service KIT - White White | K-1232262-0 | $21.55 | |
| — | Kohler Genuine Parts TRIP Lever KIT - Polished Chrome | K-1241200-CP | $38.25 | |
| — | Kohler Genuine Parts TRIP Lever KIT - Polished Chrome | K-1238613-CP | $20.70 | |
 | Refill Tube | K-1248138 | $2.28 | |
 | Seal | K-1001958 | $5.40 | |
 | Seal for All Single Flush Class 5 and Class 6 Canister Toilets | K-GP1059291 | $7.90 | |
 | Supply Nut | K-42397 | $2.73 | |
 | Washer | K-42398 | $2.17 | |
 | Washer, Shank | K-85307 | $2.40 | |
| — | — | 83996 | — | |
| — | — | 1060306 | — | |
| — | — | 1181762 | — | |
