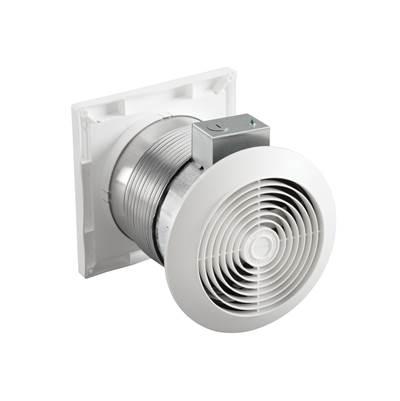

Broan Nutone 70 CFM Through-Wall Ventilation Fan in White
Item #: 512M
UPC: 026715067138
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Exhaust Fan
- Finish: White
- Length: 8"
- Width: 5"
- Height: 8"
- Weight: 3 lbs.
Features
- 70 CFM - ventilate up to 65 sq. ft.
- 6.0 Audible Sones
- Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room
- Built-in exterior wall cap/vent, no ducting needed for installation
- Effectively ventilate a one car garage, either attached or detached from the home
- Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
- Tested and approved for extreme hot and cold weather
- Motor assembly offers a fast and easy twist-lock installation
- Housing adjusts to fit walls from 5 -1/4'' - 10'' thick
- Galvanized steel housing for superior protection against the elements and wear and tear
- Pair this fan with a motion or humidity sensing wall control to provide automatic ventilation (sold separately)
- Install with a delay-off or countdown timer wall control to automatically turn off the fan after leaving the room/garage (sold separately)
Specifications
Product Specifications
| Sones | 6 |
|---|---|
| Blades | Polymeric |
| Finish | White |
| Airflow | 70 |
| Cfm Hvi | 70 |
| Listing | UL |
| Voltage | 120v |
| Wattage | 25.4 |
| Includes | No Additional Items Included |
| Mounting | Through The Wall |
| Shipping | L:9"x W:9"x H:10" 3.3 lbs. |
| Warranty | 1 Year |
| Duct Size | 6'' |
| Ul Listed | Yes |
| Duct Shape | Round |
| Frequency Hz | 60 |
| Grille Shape | Circle |
| Product Line | Broan |
| Product Type | Exhaust Fan |
| Amperage Amps | 0.7 |
| Hvi Vertified | Yes |
| Duct Direction | Horizontal/Vertical |
| Motor Speed Rpm | 2600 |
| Hardware Included | Yes |
| Installation Type | Online Tools |
| Online Product ID | 524415 |
| Grille Diameter In | 8 |
| Certification File No | E17814 |
| Minimum Order Quantity | 1 |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 65 |
| Contain Electronic Equipment | Yes |
| Ceiling Fan Amps At High Speed | 0.7 |
Dimensions
| Width | 5" |
|---|---|
| Height | 8" |
| Length | 8" |
| Weight | 3 lbs. |
| Dimensions | Variable x 8 x 8 |
| Ship Width | 8.5000 |
| Ship Height | 9.8000 |
| Ship Length | 8.5000 |
| Ship Weight | 3.4000 |
| Housing Width In | 6 |
| Housing Dimensions In | 6'' Round x 4-3/8'' |
| Grille Length Depth In | 8 |
| Housing Length Depth In | 4.38 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Steel |
