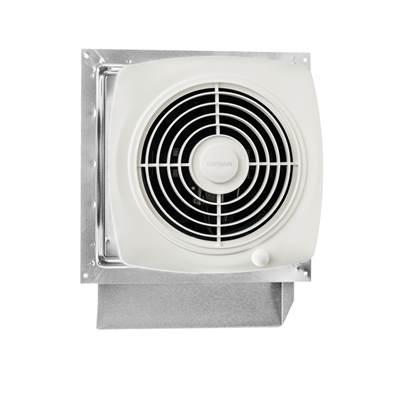

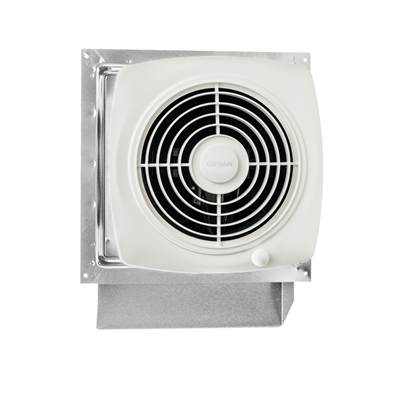

Broan Nutone Through-Wall Bathroom Exhaust Fan - 200 CFM in White
Item #: 509S
UPC: 026715022908
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Fan Only Exhaust Fan
- Finish: White
- Length: 11.5"
- Width: 11.5"
- Height: 9.25"
- Weight: 14 lbs.
Features
- 200 CFM - ventilate up to 195 sq. ft.
- 8.5 Audible Sones
- Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room
- Built-in exterior wall cap/vent, no ducting needed for installation
- Effectively ventilate a one car garage, either attached or detached from the home
- Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
- Tested and approved for extreme hot and cold weather
- Integrated on/off switch dial on the fan cover prevents the need for wiring a wall switch.
- Motor assembly offers a fast and easy twist-lock installation
- Housing adjusts to fit walls from 4-1/2''-9-1/2'' thick
- Galvanized steel housing for superior protection against the elements and wear and tear
Specifications
Product Specifications
| Sones | 8.5 |
|---|---|
| Blades | Polymeric |
| Finish | White |
| Airflow | 180 |
| Cfm Hvi | 200 |
| Listing | UL |
| Voltage | 120v |
| Wattage | 89.2 |
| Includes | No Additional Items Included |
| Mounting | Through The Wall |
| Shipping | L:19.25"x W:10.75"x H:15" 13 lbs. |
| Duct Size | 8'' |
| Ul Listed | Yes |
| Duct Shape | Round |
| Frequency Hz | 60 |
| Grille Shape | Square |
| Product Line | Broan |
| Product Type | Fan Only Exhaust Fan |
| Amperage Amps | 1.8 |
| Hvi Vertified | Yes |
| Duct Direction | Horizontal/Vertical |
| Motor Speed Rpm | 1925 |
| Hardware Included | Yes |
| Installation Type | Wall |
| Online Product ID | 524410 |
| Certification File No | E17814 |
| Minimum Order Quantity | 1 |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 170 |
| Contain Electronic Equipment | Yes |
| Ceiling Fan Amps At High Speed | 1.5 |
Dimensions
| Width | 11.5" |
|---|---|
| Height | 9.25" |
| Length | 11.5" |
| Weight | 14 lbs. |
| Dimensions | Variable x 14.25 x 14.25 |
| Ship Width | 10.7500 |
| Ship Height | 14.2500 |
| Ship Length | 19.2500 |
| Ship Weight | 13.0000 |
| Grille Width In | 11.5 |
| Housing Width In | 14.25 |
| Housing Dimensions In | 14-1/4'' x 14-1/4'' |
| Grille Length Depth In | 11.5 |
| Housing Length Depth In | 14.25 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
