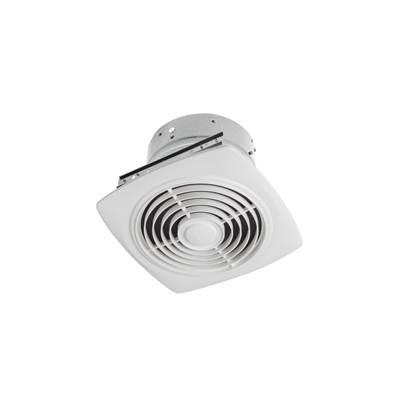

Broan Nutone 8-Inch Vertical Discharge Bathroom Exhaust Fan - 200 CFM - 8.5 Sones in White
Item #: 505
UPC: 026715022854
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Fan Only Exhaust Fan
- Finish: White
- Length: 11.5"
- Width: 11.5"
- Height: 8"
- Weight: 7 lbs.
Features
- 200 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors from larger rooms
- 8.5 audible sones provides powerful ventilation
- Built-in damper minimizes backdrafts for energy efficiency
- Housing 8-1/4 in. Dia x 7 in. high
- Duct size 8 in. Dia
- Grille - 11.5 square
- Galvanized steel housing for superior durability
Specifications
Product Specifications
| Sones | 8.5 |
|---|---|
| Blades | Polymeric |
| Finish | White |
| Airflow | 180 |
| Cfm Hvi | 200 |
| Listing | UL |
| Voltage | 120v |
| Wattage | 76.5 |
| Includes | No Additional Items Included |
| Shipping | L:13.7"x W:8.5"x H:13.9" 7 lbs. |
| Warranty | 1 Year |
| Duct Size | 8'' |
| Ul Listed | Yes |
| Duct Shape | Round |
| Ceiling Only | Yes |
| Frequency Hz | 60 |
| Grille Shape | Square |
| Product Line | Broan |
| Product Type | Fan Only Exhaust Fan |
| Amperage Amps | 1.5 |
| Hvi Vertified | Yes |
| Duct Direction | Horizontal/Vertical |
| Motor Speed Rpm | 1975 |
| Hardware Included | Yes |
| Installation Type | Ceiling |
| Online Product ID | 524405 |
| Certification File No | E17814 |
| Minimum Order Quantity | 1 |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 195 |
| Contain Electronic Equipment | Yes |
| Ceiling Fan Amps At High Speed | 1.5 |
| Minimum Construction Space Required | 2'' x 8'' |
Dimensions
| Width | 11.5" |
|---|---|
| Height | 8" |
| Length | 11.5" |
| Weight | 7 lbs. |
| Dimensions | 8.05 x 11.5 x 11.5 |
| Ship Width | 8.9000 |
| Ship Height | 13.9000 |
| Ship Length | 13.8000 |
| Ship Weight | 7.0000 |
| Grille Width In | 11.5 |
| Housing Height In | 7 |
| Housing Dimensions In | 8-1/4'' Round x 7'' |
| Grille Length Depth In | 11.5 |
| Housing Length Depth In | 8.25 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
