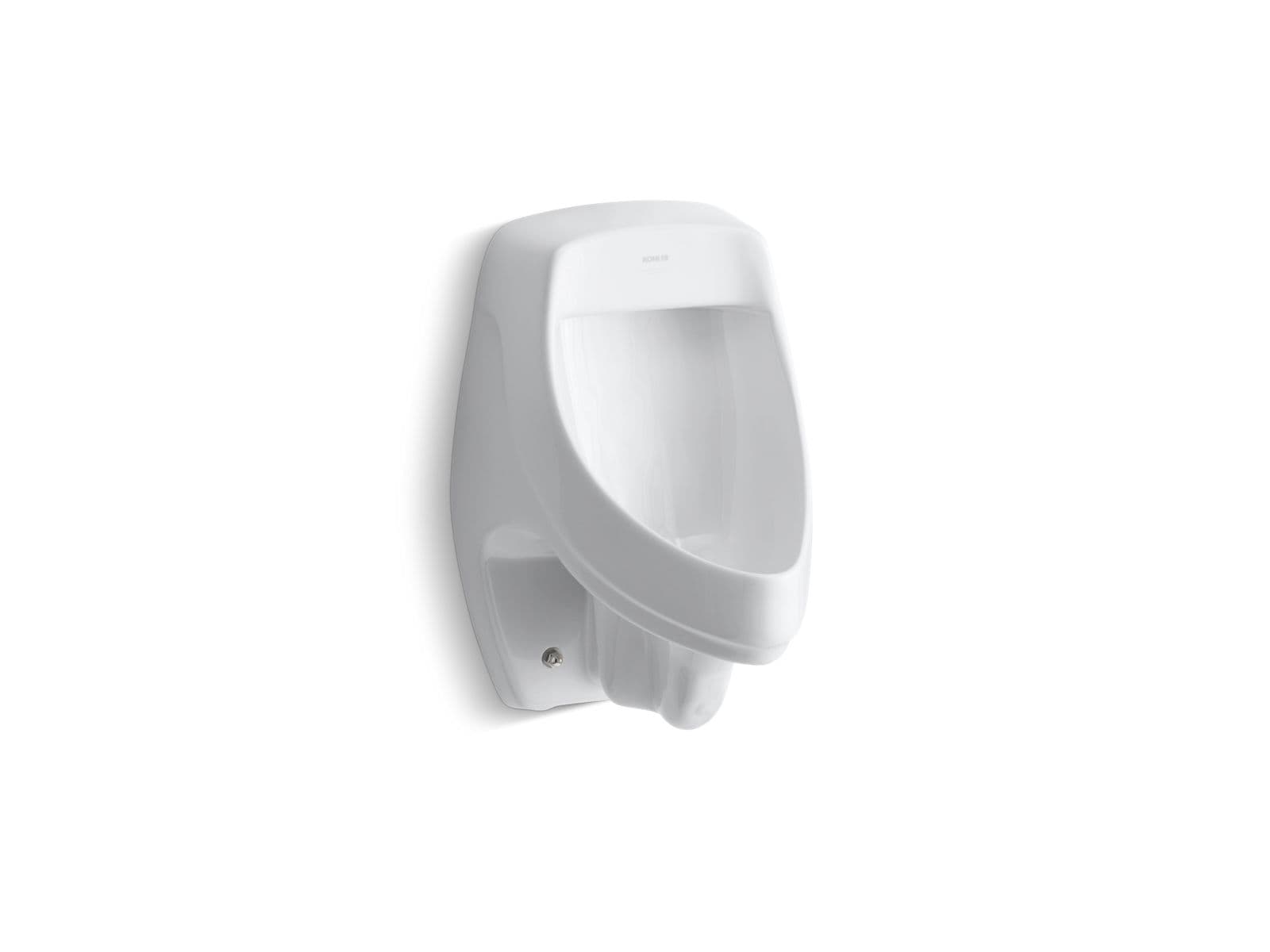

Kohler Dexter® Wall Mount Urinal - Siphon Jet - Rear Spud - 0.5 or 1.0 GPF in White
Item #: 5016-ER-0
UPC: 040688778655
Finish: White
Offered in 3 colors
Free Shipping on LTL freight orders over $99
Overview
Dexter™ Siphon-jet half-stall 0.5–1.0 gpf urinal, rear spud
Siphon-jet half-stall 0.5–1.0 gpf urinal, rear spud
Features
- Siphon jet
- 3/4" (19 mm) rear spud
- 0.5 or 1.0 gpf (1.9 or 3.8 lpf) based on valve selected
- Includes inlet and outlet spuds and hangers
- Includes anti-backsplash walls
- 14-1/2"(368 mm) extended rim.
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| GTIN | 00040688778655 |
| Finish | White |
| Shipping | L:23.63"x W:15.13"x H:16.75" 42 lbs. |
| Collection | Dexter |
| Watersense | Yes |
| Product Type | Wall Mount Urinal |
| Product Style | Transitional |
| Ansi Compliant | Yes |
| Asme Standards | ASME A112.19.2/CSA B45.1 |
| Product Warranty | KOHLER® One-Year Limited Warranty |
| Introduction Date | 3/28/2001 |
| Online Product ID | 556758 |
Dimensions
| Width | 13.5" |
|---|---|
| Height | 20.375" |
| Length | 14.5" |
| Weight | 42.000 |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #5016-ER-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | 2" 11-1/2 Npt Outlet Bracket, Urinal | 1462780 | — | |
 | Closet Screw Assembly | K-21402 | $7.29 | |
 | Hanger | K-64508 | $23.80 | |
 | Hanger | K-64515 | $34.06 | |
 | Hanger Kit | K-1224196 | $12.56 | |
 | Kohler Genuine Parts BOLT CAP Accessory PACK - White White | K-GP1013092-0 | $5.55 | |
 | Kohler Genuine Parts Bolt, Hanger, PLN. Cntr. | K-84321 | $2.55 | |
 | Kohler Genuine Parts Closet SPUD Assy, 1 1/2 | K-18357 | $37.93 | |
 | Kohler Genuine Parts Collar, Female, 2 I.P. | K-53405 | $65.35 | |
 | Kohler Genuine Parts Floor BOLT Accessory PACK - White White | K-1017124-0 | $8.50 | |
 | Kohler Genuine Parts Gasket, Urinal/1pc Toilets | K-GP53410 | $9.30 | |
 | Kohler Genuine Parts Outlet Bracket - CAST Iron, Urinal | K-1507372 | $24.68 | |
 | Kohler Genuine Parts Urinal SPUD Assy, 3/4 | K-18774 | $59.83 | |
 | Kohler Genuine Parts Urinal SPUD Assy, 3/4 | K-18376 | $30.75 | |
 | Kohler Genuine Parts Washer, .330 ID X 7/8 OD | K-32572 | $2.17 | |
 | Kohler Genuine Parts Washer, Friction FOR VIT Intergral Drain | K-33834 | $2.17 | |
 | Nut, | K-50798 | $16.80 | |
 | Nut, .25-20Unc-2B | K-51775 | $2.55 | |
 | Nut, 1.25-11.5Npsm | K-53026 | $22.73 | |
 | Sink hanger | K-64503 | $19.40 | |
 | Spud | K-51088 | $65.85 | |
 | Spud Assembly, 1 1/4" | K-18759 | $87.35 | |
 | Spud Washer, 1 1/2" | K-50800 | $5.40 | |
 | Urinal Outlet Kit | K-18766 | $67.73 | |
 | Washer | K-53027 | $8.02 | |
 | Washer, Friction | K-53028 | $2.30 | |
 | Washer, Hard Fiber | K-50799 | $2.60 | |
 | Washer, Spud | K-53017 | $5.21 | |
| — | — | 089669 | — | |
| — | — | 1001964 | — | |
