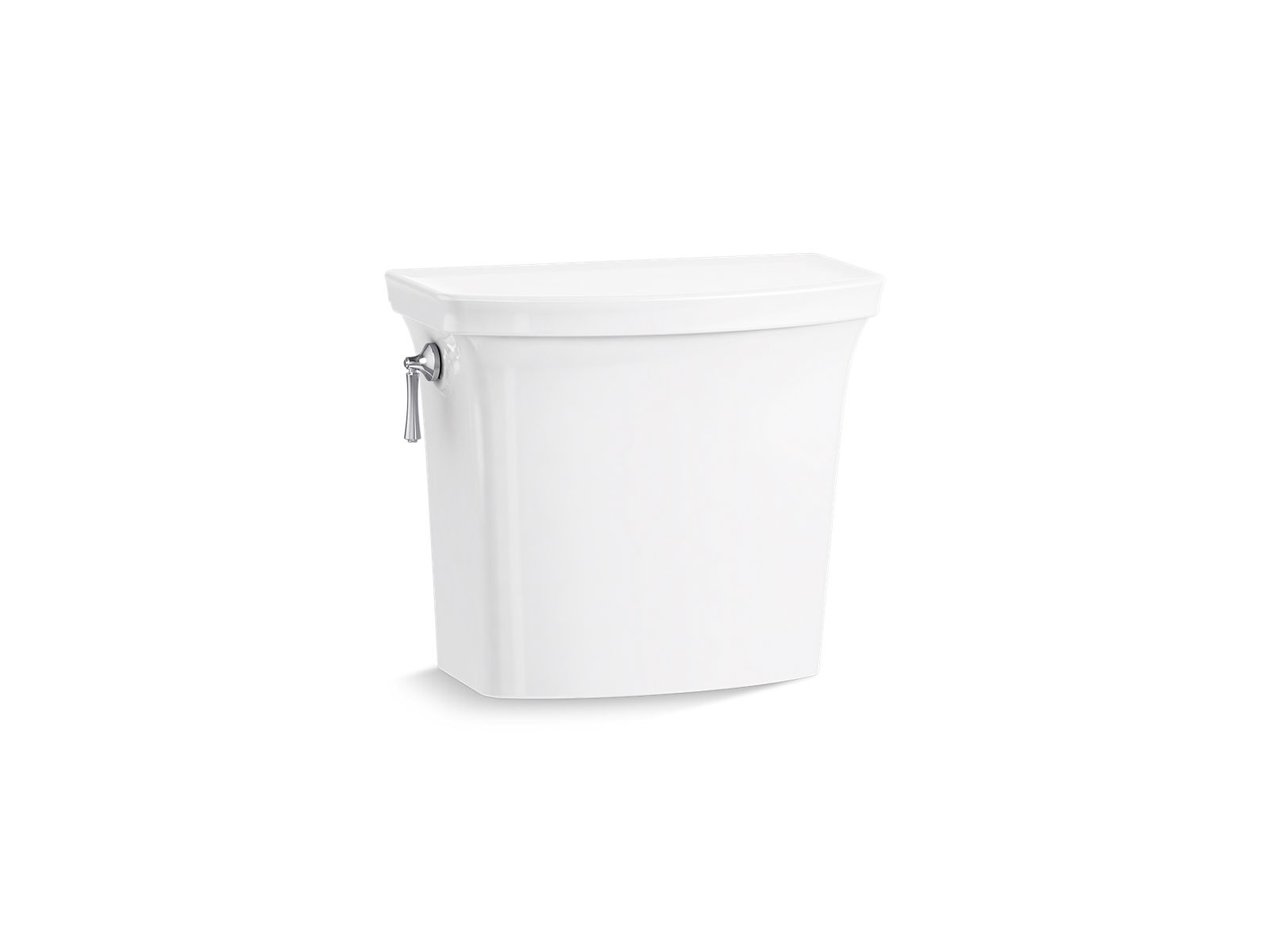

Kohler Corbelle Toilet Tank - 1.28 GPF in White
Item #: 4143-0
UPC: 885612611833
Finish: White
Offered in 5 colors
Free Shipping on LTL freight orders over $99
Overview
This KOHLER® Corbelle toilet tank features innovative AquaPiston® technology, a patented flush engine that delivers a fast, powerful, and virtually plug-free flush. A 1.28-gallon flush provides significant water savings of up to 16,500 gallons per year, compared to a 3.5-gallon toilet, without sacrificing performance. Pair this toilet tank with a Corbelle toilet bowl for a beautiful, sleek two-piece toilet.
Toilet tank, 1.28 gpf
Features
- 1.28 gpf (4.8 lpf)
- Combines with the K-4144 bowl to create a complete K-3814 Corbelle toilet
- Alternative options available: Corbelle toilet tank with ContinousClean - K-5711
- AquaPiston® canister optimizes the flow out of the tank, harnessing gravity and the natural, powerful reducing cascade of water to increase the power and effectiveness of the flush
- Easy-to-flush canister design requires less force to actuate than a 3" (76 mm) flapper, and has 90% less exposed seal material which resists conditions that cause wear, tear, shrinkage and swelling
- Left-hand trip lever
Specifications
Product Specifications
| GTIN | 00885612611833 |
|---|---|
| Finish | White |
| Shipping | L:20"x W:9.63"x H:17.31" 31.8 lbs. |
| Collection | Corbelle |
| Flush Rate | 1.28 gal/flush |
| Watersense | Yes |
| Product Type | Toilet Tank |
| Stock Status | in_stock |
| Product Style | Transitional |
| Asme Standards | ASME A112.19.2/CSA B45.1 |
| Prop65 Warning | Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Introduction Date | 6/29/2017 |
| Online Product ID | 2920881 |
| Freight Policy Type | 1 |
| Release For Shipment | 2017-06-29T00:00:00Z |
Dimensions
| Width | 16.42" |
|---|---|
| Height | 13" |
| Length | 8.51" |
| Weight | 31.800 |
| Overall Width Inches | 16-7/16" |
| Overall Height Inches | 13" |
| Overall Length Inches | 8-1/2" |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Specification Sheets
Other Documents
Replacement Parts
Genuine Kohler replacement parts compatible with Item #4143-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Bushing, Spherical | K-1213082 | $3.62 | |
 | Canister Repair Kit | K-GP1229656 | $10.70 | |
 | FLUSH VALVE KIT | K-1309116 | $21.13 | |
 | GASKET KIT | K-1070291 | $2.17 | |
 | Kohler Genuine Parts B5-1271 - Locknut Assy.shank - TWO Piece | K-1057941 | $2.28 | |
 | Kohler Genuine Parts B5-1816 - NUT, 2-11.5NPSM | K-50751 | $3.62 | |
 | Kohler Genuine Parts BOLT CAP KIT - White White | K-1225543-0 | $4.30 | |
 | Kohler Genuine Parts CAM Assembly KIT, Angled BASE | K-1267750 | $58.55 | |
 | Kohler Genuine Parts Cover, Tank, Close Coupled - White White | K-1306245-0 | $27.95 | |
 | Kohler Genuine Parts FILL Valve Service KIT, 375A STD Refill | K-1468017 | $18.02 | |
 | Kohler Genuine Parts FILL Valve Service KIT, 400A Series | K-GP1138930 | $20.55 | |
 | Kohler Genuine Parts Grommet Service KIT | K-1324795 | $8.17 | |
 | Kohler Genuine Parts Screw, HEX HEAD TAP | K-1232059 | $2.39 | |
 | Kohler Genuine Parts Service CAP Assembly | K-1057940 | $7.01 | |
 | Kohler Genuine Parts TRIP Lever Assembly - Polished Chrome | K-1292297-CP | $20.60 | |
 | Kohler Genuine Parts TRIP Lever Assembly, RH - Polished Chrome | K-1292860-CP | $51.95 | |
 | Kohler Genuine Parts Trapway Service KIT, Plastic | K-1265858 | $72.79 | |
 | Refill Tube | K-1248135 | $2.28 | |
 | Retainer Nut | K-78132 | $2.28 | |
 | Seal Diaphragm | K-83143 | $5.73 | |
 | Seal for All Single Flush Class 5 and Class 6 Canister Toilets | K-GP1059291 | $7.90 | |
 | Washer, Rubber | K-1101470 | $2.84 | |
 | Washer, Shank | K-85307 | $2.40 | |
