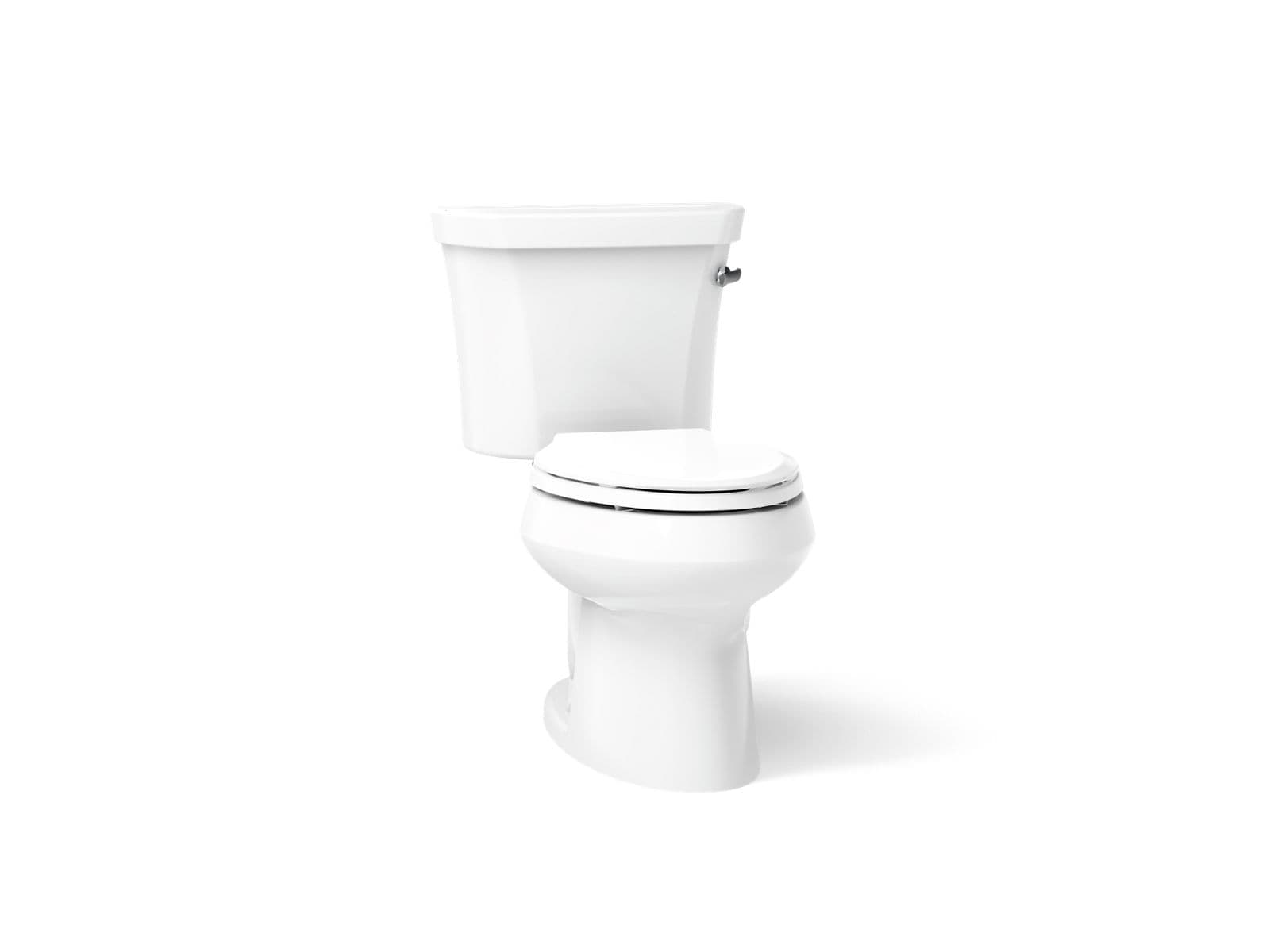

Kohler Wellworth Elongated Two-Piece Toilet - 1.28 GPF in White
Item #: 3998-RZ-0
UPC: 650531970701
Finish: White
Offered in 2 colors
Free Shipping on LTL freight orders over $99
Overview
KOHLER® Wellworth toilets have been an American benchmark for style, innovation, and performance since 1936. This Wellworth high-efficiency two-piece elongated toilet delivers significant water savings with a 1.28-gallon flush setting that saves up to 16,500 gallons per year, compared to an old 3.5-gallon toilet, without sacrificing flush power. This model includes tank lid locks and an insulated tank liner to help prevent condensation on the outside of the tank.
Two-piece elongated toilet, 1.28 gpf
Features
- Two-piece design
- Elongated bowl offers added room and comfort
- Right-hand Polished Chrome trip lever
- Insuliner® tank liner minimizes condensation on the tank
- Tank cover locks included
- Combination consists of toilet bowl and tank
- Coordinates with other products in the Wellworth collection
- KOHLERs canister flush valve harnesses the natural force of gravity and optimizes flushing performance
- Eligible for consumer rebates in some municipalities
- 1.28 gpf (4.8 lpf)
- 2-1/8" (54 mm) fully glazed trapway
- Class Five® canister optimizes the flow out of the tank, harnessing gravity and the natural, powerful reducing cascade of water to increase the power and effectiveness of the flush
Specifications
Product Specifications
| GTIN | 00650531970701 |
|---|---|
| Finish | White |
| CALGreen | Yes |
| Shipping | L:0"x W:0"x H:0" 86.3 lbs. |
| Oversized | Yes |
| Collection | Wellworth |
| Flush Rate | 1.2 gal/flush |
| Watersense | Yes |
| Product Line | Wellworth |
| Product Type | Floor Mount Two Piece Toilet |
| Stock Status | out_of_stock |
| Product Style | Transitional |
| Asme Standards | ASME A112.19.2/CSA B45.1 |
| Introduction Date | 12/7/2010 |
| Online Product ID | 555023 |
| Freight Policy Type | 1 |
| Release For Shipment | 2010-12-07T00:00:00Z |
Dimensions
| Width | 18" |
|---|---|
| Height | 29.25" |
| Length | 30" |
| Weight | 86.300 |
| Overall Width Inches | 18" |
| Overall Height Inches | 29-1/4" |
| Overall Length Inches | 30" |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #3998-RZ-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | CLOSET TANK BOLT | K-51624 | $3.06 | |
 | GASKET KIT | K-1070291 | $2.17 | |
 | Kohler Genuine Parts B5-1271 - Locknut Assy.shank - TWO Piece | K-1057941 | $2.28 | |
 | Kohler Genuine Parts BOLT Cover Accessory PACK - Bone Natural Almond | K-1013092-47 | $4.75 | |
 | Kohler Genuine Parts Cover, Tank, Toilet - White Multiple options available | K-1138565-0 | $43.70 | |
 | Kohler Genuine Parts FILL Valve Service KIT, 375A HIGH Refill | K-1468016 | $21.13 | |
 | Kohler Genuine Parts Flush Valve KIT, 1.28 | K-1142714 | $30.60 | |
 | Kohler Genuine Parts KIT, Adjustable FILL Valve | K-GP1083167 | $21.55 | |
 | Kohler Genuine Parts Service CAP Assembly | K-1057940 | $7.01 | |
 | Kohler Genuine Parts Washer, .330 ID X 7/8 OD | K-32572 | $2.17 | |
 | NUT- .312"-18UNC-2B | K-51533 | $2.40 | |
 | Refill Tube | K-1248135 | $2.28 | |
 | Retainer Nut | K-78132 | $2.28 | |
 | Seal Diaphragm | K-83143 | $5.73 | |
 | Supply Nut | K-42397 | $2.73 | |
 | Triangle Tank Gasket with Bolts | K-GP51487 | $15.00 | |
 | WASHER K-507 | K-50752 | $2.39 | |
 | Washer | K-42398 | $2.17 | |
 | Washer, Rubber | K-1101470 | $2.84 | |
 | Washer, Shank | K-85307 | $2.40 | |
| — | — | 1059291 | — | |
| — | — | 1142713 | — | |
| — | — | 1112257 | — | |
