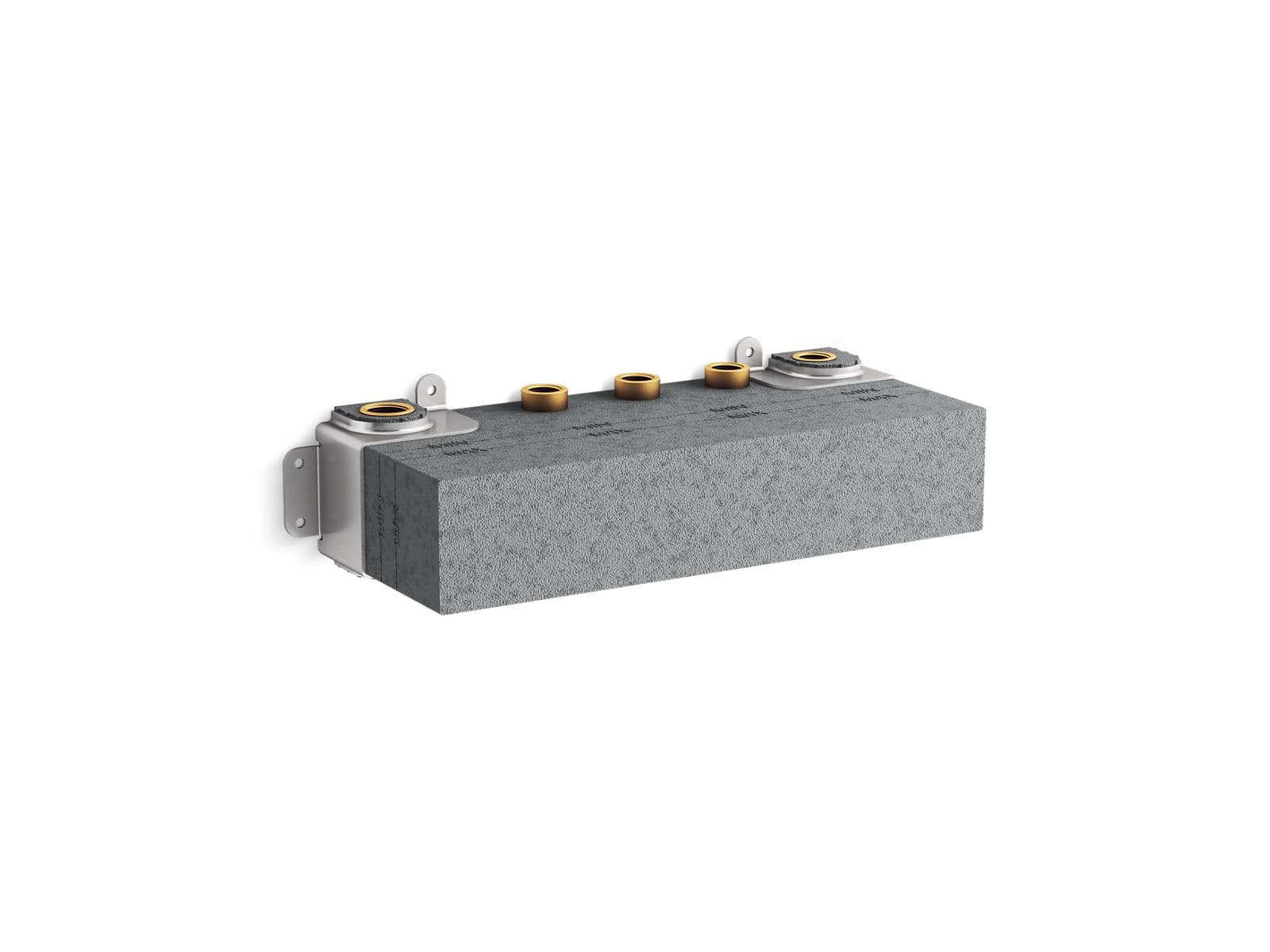

Kohler Four-port recessed mechanical thermostatic valve

Name: Kohler Four-port recessed mechanical thermostatic valve
Brand: Kohler
SKU: 39015-NA
Price: 825.35 USD
Availability: InStock

Item #: 39015-NAUPC: 195711260765

$971.00 MSRP

PROP65

Description

Thermostatic KOHLER® Anthem technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class Anthem thermostatic valve comes mostly assembled for easy installation, and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With four independently controllable ports, this valve is ideally suited for applications where up to four outlets are required.

Features

High-flow thermostatic mixing valve
Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
3/4" female NPT inlet connections
1/2" female NPT outlet connections
Service stops with integral filters
Antiscald protection
Integrated adjustable high-temperature limit stop to control maximum water temperature
Adjustable comfort setting (preset at approximately 104°F)
Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired

Materials

Cast dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions

Specifications

UOMeach

UPC195711260765

GTIN00195711260765

StyleTransitional

Width16.52"

Height4.88"

Length6.1"

Weight12.701

ShippingL:15.313"x W:8.500"x H:7.625" 12.701 lbs.

backorderfalse

CollectionAnthem

Product TypeItem

review_count0

stock_statusin_stock

variant_skus39015-NA

special_orderfalse

Country of OriginCN

Online Product ID17609823

review_rating_range5

Overall Width Inches16-1/2"

release_for_shipment2025-06-27T00:00:00Z

Overall Height Inches4-7/8"

Overall Length Inches6-1/8"

Documents

Revit Family (RFA)Installation Guide Parts Diagram Technical Specifications

gerhardsstore.comItem #: 39015-NA

Kohler Four-port recessed mechanical thermostatic valve by Kohler

Hover to zoom

Kohler Four-port recessed mechanical thermostatic valve

Item #: 39015-NA

UPC: 195711260765

Four-port recessed mechanical thermostatic valve

Features

High-flow thermostatic mixing valve
Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet
3/4" female NPT inlet connections
1/2" female NPT outlet connections
Service stops with integral filters
Antiscald protection
Integrated adjustable high-temperature limit stop to control maximum water temperature
Adjustable comfort setting (preset at approximately 104°F)
Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired

Materials

Cast dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions

Certifications & Compliance

PROP 65

Warranty	KOHLER® Faucet Lifetime Limited Warranty
Country of Origin	CN

Replacement Parts

Part Number	Description	Price
K-1347562	31 mm Click Valve	$37.25	View
K-1391702	Button Connector	$4.90	View
K-1128483	Check Valve	$4.45	View
K-1299821	Click Valve Nut	$7.70	View
K-1259076	Filter	$16.80	View
K-1391697-RP	Kohler Genuine Parts GEAR - Rough Plate	$10.45	View
K-1411256	Kohler Genuine Parts KIT, COLD Check Valve ASSY	$26.55	View
K-1411258	Kohler Genuine Parts KIT, COLD Service STOP ASSY	$41.55	View
K-1516722	Kohler Genuine Parts KIT, FLOW Regulator	$7.05	View
K-1411260	Kohler Genuine Parts KIT, HOT Check Valve ASSY	$27.15	View
K-1411262	Kohler Genuine Parts KIT, HOT Service STOP ASSY	$41.85	View
K-1516721	Kohler Genuine Parts KIT, Service STOP Rebuild	$8.70	View
K-3007774	Kohler Genuine Parts Screw, M4-0.7mm X 8MM, DOME HEAD	$1.60	View
K-832940	Ring	$2.85	View
K-1391712	Spline Adapter	$2.90	View
K-1242353	Spring Ring	$3.25	View
K-1494151	Th Handle Kit	$5.95	View
K-835239	Valve	$143.45	View
K-1391698	Valve Nut	$6.50	View
