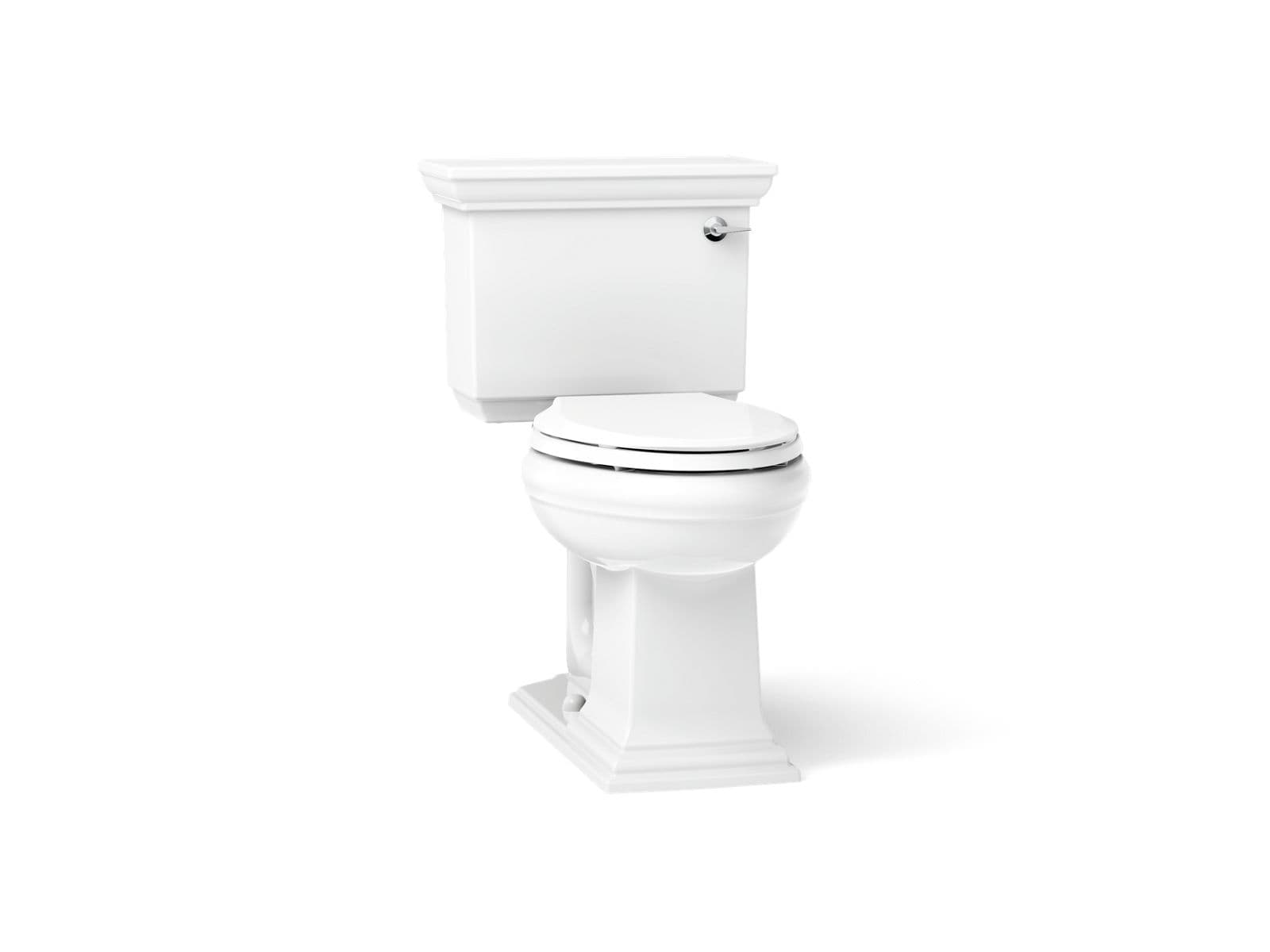

Kohler Memoirs Stately Elongated Two-Piece Toilet - 1.28 GPF in White
Item #: 3817-RA-0
UPC: 650531998286
Free Shipping on LTL freight orders over $99
Overview
Featuring the elegant architectural Memoirs Stately look of the KOHLER® Memoirs collection with Stately design, this two-piece elongated toilet combines water-saving flush performance with traditional style. A high-efficiency 1.28-gallon flush offers up to 16,500 gallons of water savings per year, compared to a 3.5-gallon toilet, without compromising flush power. The elongated bowl is positioned at a convenient height for comfort and ease of use.
Two-piece elongated toilet, 1.28 gpf
Features
- Two-piece design
- Elongated bowl offers added room and comfort
- Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
- Right-hand Polished Chrome trip lever
- Combination consists of toilet bowl and tank
- Coordinates with other products in the Memoirs collection
- Easy-to-flush canister design requires less force to actuate than a 3" (76 mm) flapper, and has 90% less exposed seal material which resists conditions that cause wear, tear, shrinkage and swelling
- Eligible for consumer rebates in some municipalities
- 1.28 gpf (4.8 lpf)
- 2-1/8" (54 mm) fully glazed trapway
- AquaPiston® canister optimizes the flow out of the tank, harnessing gravity and the natural, powerful reducing cascade of water to increase the power and effectiveness of the flush
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| GTIN | 00650531998286 |
| Finish | White |
| CALGreen | Yes |
| Shipping | L:0"x W:0"x H:0" 105 lbs. |
| Oversized | Yes |
| Collection | Memoirs Stately |
| Flush Rate | 1.28 gal/flush |
| Watersense | Yes |
| Product Type | Floor Mount Two Piece Toilet |
| Stock Status | in_stock |
| Csa Compliant | Yes |
| Product Style | Traditional |
| Asme Standards | ASME A112.19.2/CSA B45.1 |
| Introduction Date | 1/7/2011 |
| Online Product ID | 554335 |
| Freight Policy Type | 1 |
| Release For Shipment | 2011-01-07T00:00:00Z |
Dimensions
| Width | 18.875" |
|---|---|
| Height | 31.313" |
| Length | 30.375" |
| Weight | 105.000 |
| Overall Width Inches | 18-7/8" |
| Overall Height Inches | 31-5/16" |
| Overall Length Inches | 30-3/8" |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Other Documents
Replacement Parts
Genuine Kohler replacement parts compatible with Item #3817-RA-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | CLOSET TANK BOLT | K-51624 | $3.06 | |
 | GASKET KIT | K-1070291 | $2.17 | |
 | Kohler Genuine Parts B5-1271 - Locknut Assy.shank - TWO Piece | K-1057941 | $2.28 | |
 | Kohler Genuine Parts BOLT Cover Accessory PACK - Bone Natural Almond | K-1013092-47 | $4.75 | |
 | Kohler Genuine Parts Canister Valve Assy, Service KIT | K-1216622 | $26.48 | |
 | Kohler Genuine Parts Cover, TANK - Black Black | K-1052861-7 | $85.33 | |
 | Kohler Genuine Parts Cover, TANK - White Multiple options available | K-1052862-0 | $76.05 | |
 | Kohler Genuine Parts FILL Valve Service KIT, 375A HIGH Refill | K-1468016 | $21.13 | |
 | Kohler Genuine Parts KIT, Adjustable FILL Valve | K-GP1083167 | $21.55 | |
 | Kohler Genuine Parts Service CAP Assembly | K-1057940 | $7.01 | |
 | Kohler Genuine Parts TRIP Lever Service KIT - Polished Chrome | K-1160317-CP | $63.00 | |
 | Kohler Genuine Parts TRIP Lever Service KIT - Polished Chrome | K-1160316-CP | $63.60 | |
 | Kohler Genuine Parts Washer, .330 ID X 7/8 OD | K-32572 | $2.17 | |
 | NUT- .312"-18UNC-2B | K-51533 | $2.40 | |
 | Refill Tube | K-1248135 | $2.28 | |
 | Retainer Nut | K-78132 | $2.28 | |
 | Seal Diaphragm | K-83143 | $5.73 | |
 | Seal for All Single Flush Class 5 and Class 6 Canister Toilets | K-GP1059291 | $7.90 | |
 | Supply Nut | K-42397 | $2.73 | |
 | Triangle Tank Gasket with Bolts | K-GP51487 | $15.00 | |
 | WASHER K-507 | K-50752 | $2.39 | |
 | Washer | K-42398 | $2.17 | |
 | Washer, Rubber | K-1101470 | $2.84 | |
 | Washer, Shank | K-85307 | $2.40 | |
| — | — | GP1063553 | — | |
| — | — | 1181762 | — | |
| — | — | 1112257 | — | |
