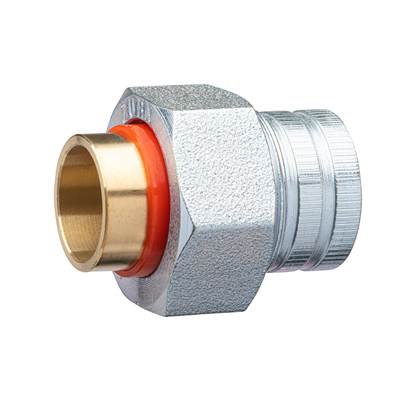

Zurn Industries DUXLC Dielectric Union - 3/4″ FNPT - 3/4″ Female Copper Sweat
Item #: 34-DUXLC
UPC: 612052076010
Free Shipping on LTL freight orders over $99
Overview
The 3/4'' DUXLC Dielectric Union is utilized on potable water applications for protection against piping system deterioration caused by galvanic and stray current corrosion. Required where dissimilar metals are used in piping systems, materials for the DUXLC include a zinc-coated steel body, union nut, bolts, and nuts, as well as cast steel flanges, low lead brass tailpiece, nylon insulator, and EPDM gaskets. Its maximum working water pressure is 250 psi for threaded fittings and 175 psi for flanged fittings, with a 180°F maximum working water temperature. The DUXLC comes standard with a female iron pipe x female copper sweat joint.
Features
- Multiple size options for versatile installation
- Couples dissimilar piping materials for ultimate convenience and low installation costs
- High protection from piping deterioration
- Female iron pipe x female copper sweat connection comes standard
- Certified to NSF/ANSI 372 by IAPMO R&T
Specifications
Product Specifications
| Shipping | 0.5 lbs. |
|---|---|
| Collection | DUXLC |
| Product Type | Plumbing Part |
| Prop65 Warning | Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Online Product ID | 2972154 |
| Low Lead Compliant | Yes |
Dimensions
| Width | 1.65" |
|---|---|
| Height | 2.08" |
| Length | 1.85" |
| Weight | 0.444 lbs. |
| Ship Weight | 0.5000 |
