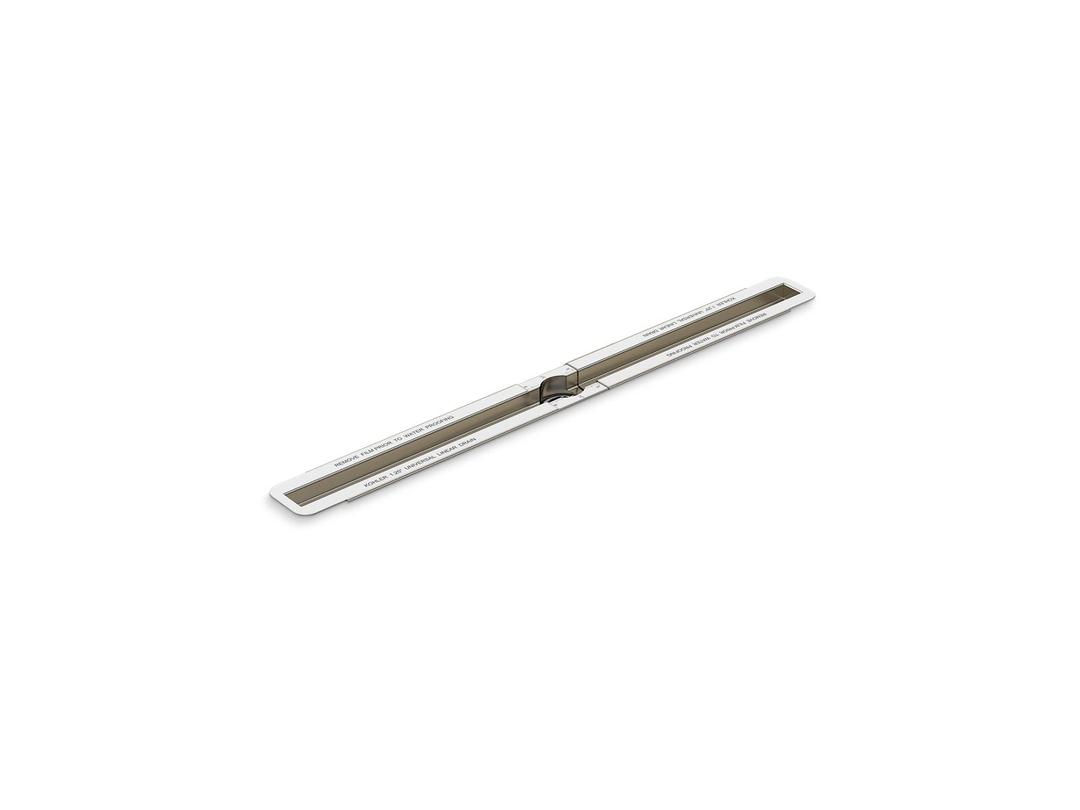

Kohler Linear Drain Channel - 1-1/4″ x 36″-60″
Item #: 32619-NA
UPC: 885612935113
Free Shipping on LTL freight orders over $99
Overview
Incorporate this KOHLER® easy-to-install, linear shower drain channel into your next contemporary shower project for a sleek minimalist look with maximum function. This innovative drain solution delivers the best-in-class quality you’ve come to expect from KOHLER®, along with customizable channel length and outlet location, premium hair strainer, and durable, easy-to-clean electropolished stainless steel base. Designed for single-slope tiled shower floors and flush-to-wall placements, the drain channel is effortless to size, adjust, and tile against in your home or commercial shower installation.
1-1/4" x 36"-60" linear drain channel
Features
- Flush-to-wall design (recommended) provides a clean aesthetic; can also be installed within shower floor interior
- Extend channel length from 36" to 60" for easier specification and precise wall-to-wall installation (if desired)
- Channel is pitched to outlet for easy cleaning and complete drainage; handles up to 15 gpm (56.8 lpm) flow capacity (rate may vary by installation)
- Drain outlet location can be adjusted to bypass joints, venting, or other in-floor obstacles
- Outlet adapter can be preattached to drain pipe for simplified installation and access to couplings
- Easy-clean domed hair strainer prevents clogs
- Subfloor brackets are height-adjustable to ensure the drain channel is mounted at the correct height during installation
- Removable tile guide/mud guard keeps channel clean of debris during installation and provides a straight edge to tile against
- Wide-top flange with protective film ensures excellent waterproof adhesion
- Includes subfloor mounting brackets, tile guide/mud guard, hair strainer, and threaded collar, along with straight pipe and threaded outlet adapters
- Can also be installed with KOHLER side-outlet adapter K-28987 (sold separately)
- Requires Kohler 1¼" x 36", 1¼" x 48", or 1¼" x 60" linear drain grate
Specifications
Product Specifications
| GTIN | 00885612935113 |
|---|---|
| Finish | Not Applicable |
| Shipping | L:39.57"x W:6.57"x H:4.13" 11.95 lbs. |
| Product Type | Drain Cover |
| Stock Status | in_stock |
| Product Style | Transitional |
| Product Warranty | KOHLER® One-Year Limited Warranty |
| Introduction Date | 9/22/2021 |
| Online Product ID | 10059704 |
| Freight Policy Type | 1 |
| Release For Shipment | 2021-09-22T00:00:00Z |
Dimensions
| Width | 4.07" |
|---|---|
| Height | 2.88" |
| Length | 61.42" |
| Weight | 11.950 |
| Overall Width Inches | 4-1/16" |
| Overall Height Inches | 2-7/8" |
| Overall Length Inches | 61-7/16" |
Materials
| Material | Stainless Steel |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
Replacement Parts
Genuine Kohler replacement parts compatible with Item #32619-NA.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Kohler Genuine Parts Assembly,cast IRON Drain BODY | K-1358955 | $78.60 | |

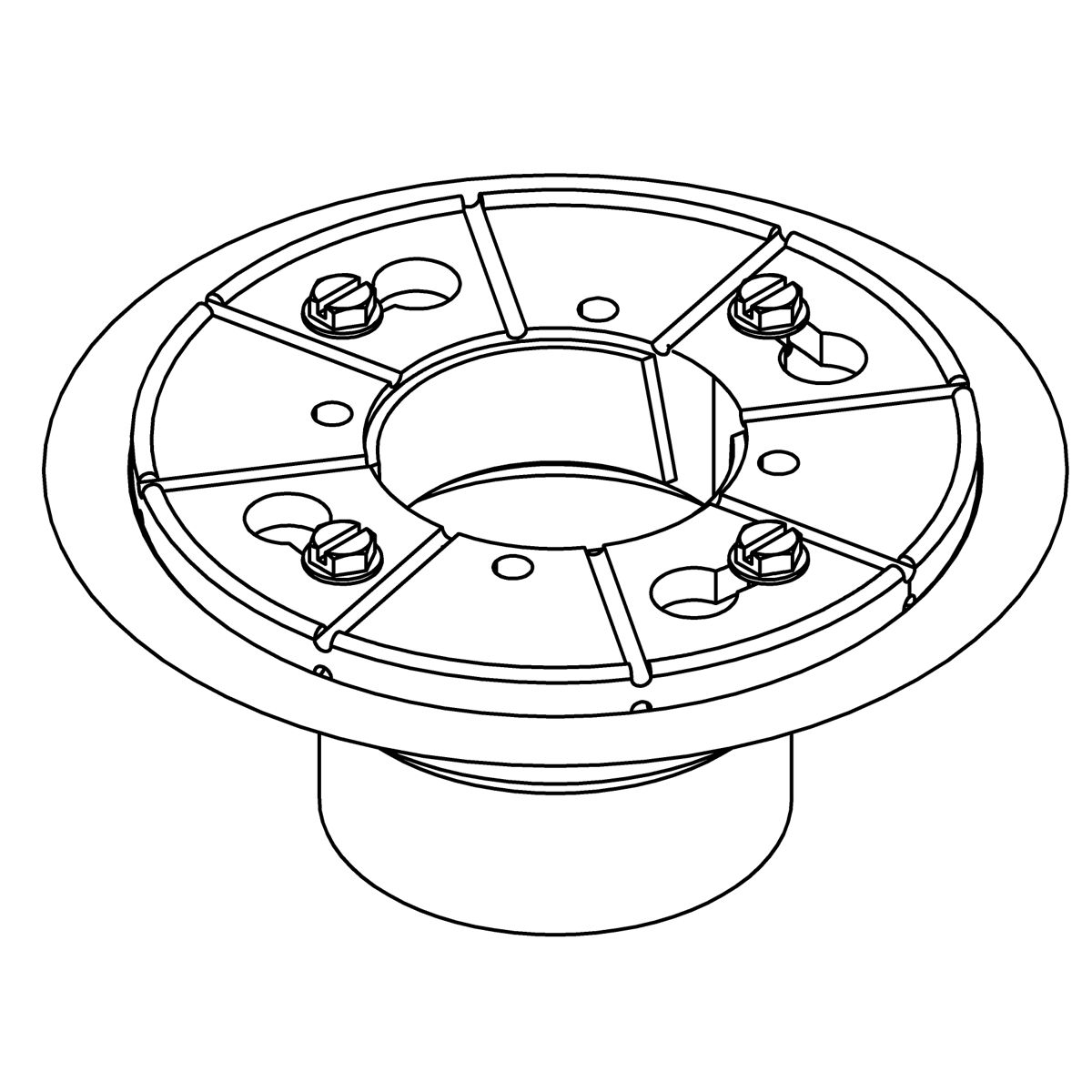

 | Kohler Genuine Parts Assembly,plastic Drain BODY | K-1458250 | $26.15 | |
| — | Kohler Genuine Parts HAIR Strainer - Rough Plate | K-1435791-RP | $24.60 | |
| — | Kohler Genuine Parts SUB Floor Bracket Service Kit-1.25 | K-1457370 | $20.25 | |

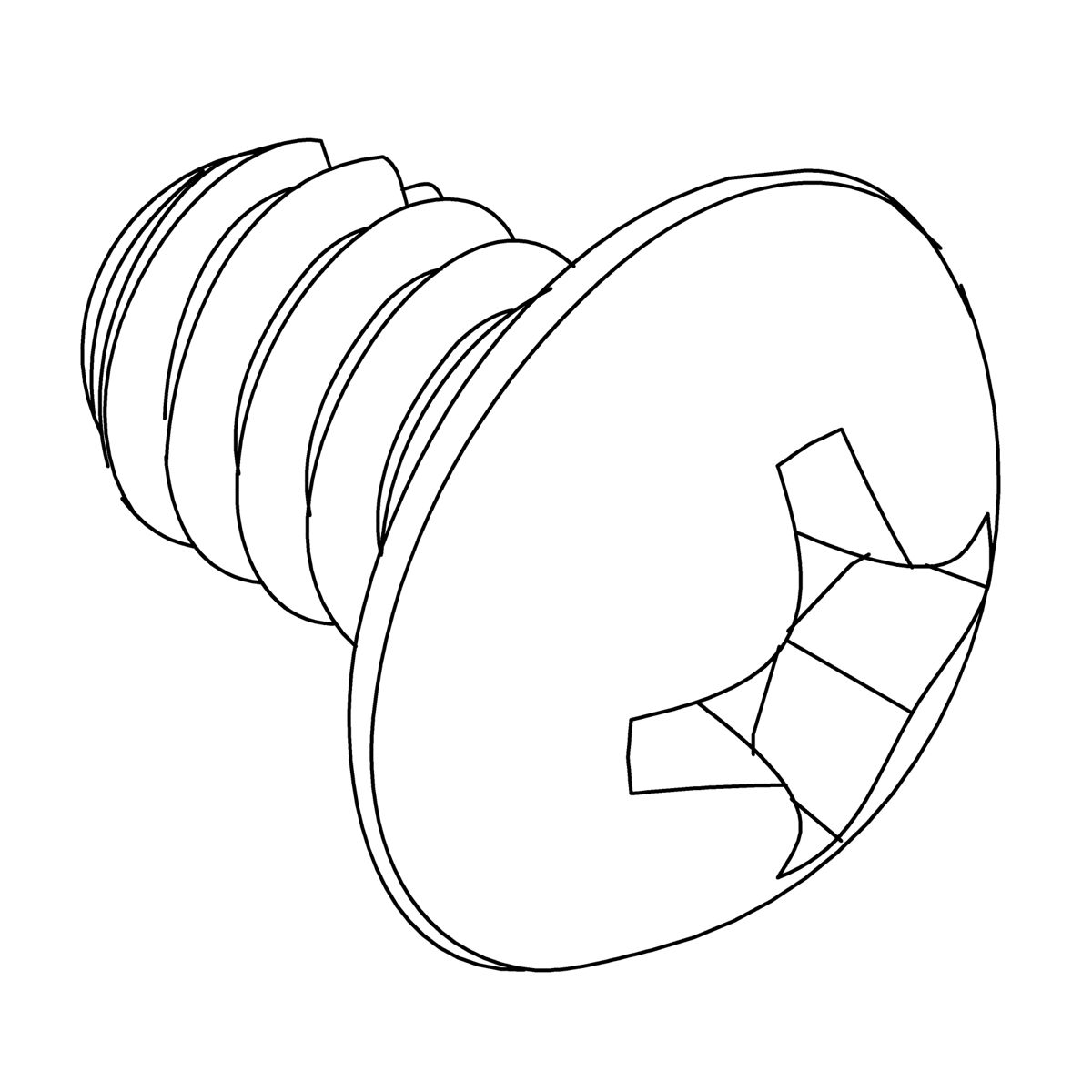

 | Kohler Genuine Parts Screw SELF TAP, 6-32, KIT | K-1586782 | $5.00 | |

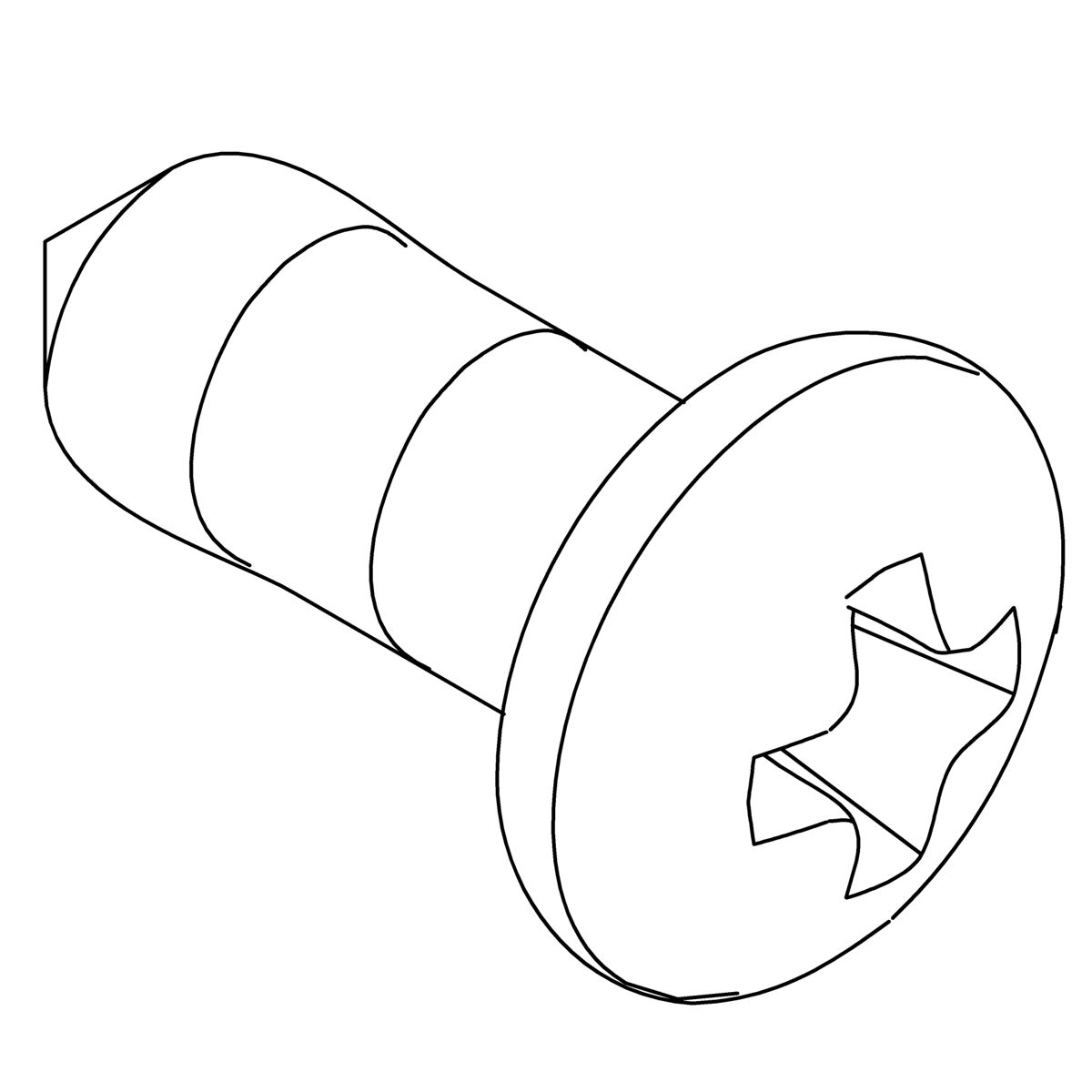

 | Kohler Genuine Parts Screw, 4-48X0.246, PAN Head, KIT | K-1586781 | $5.00 | |

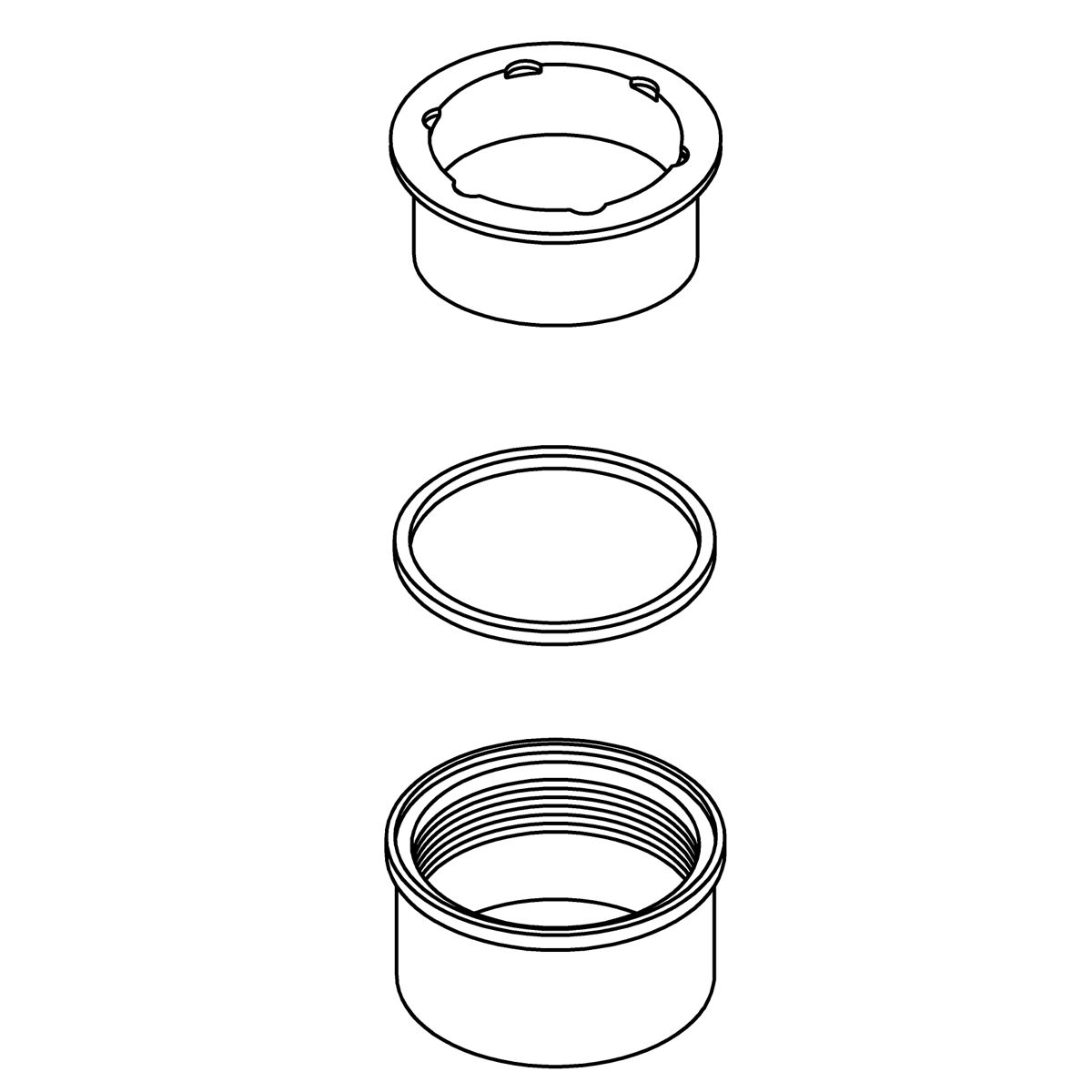

 | Kohler Genuine Parts Standard Drain Collar Service KIT | K-1457368 | $46.75 | |
 | Kohler Genuine Parts TAIL Piece Service KIT | K-1457367 | $56.45 | |
