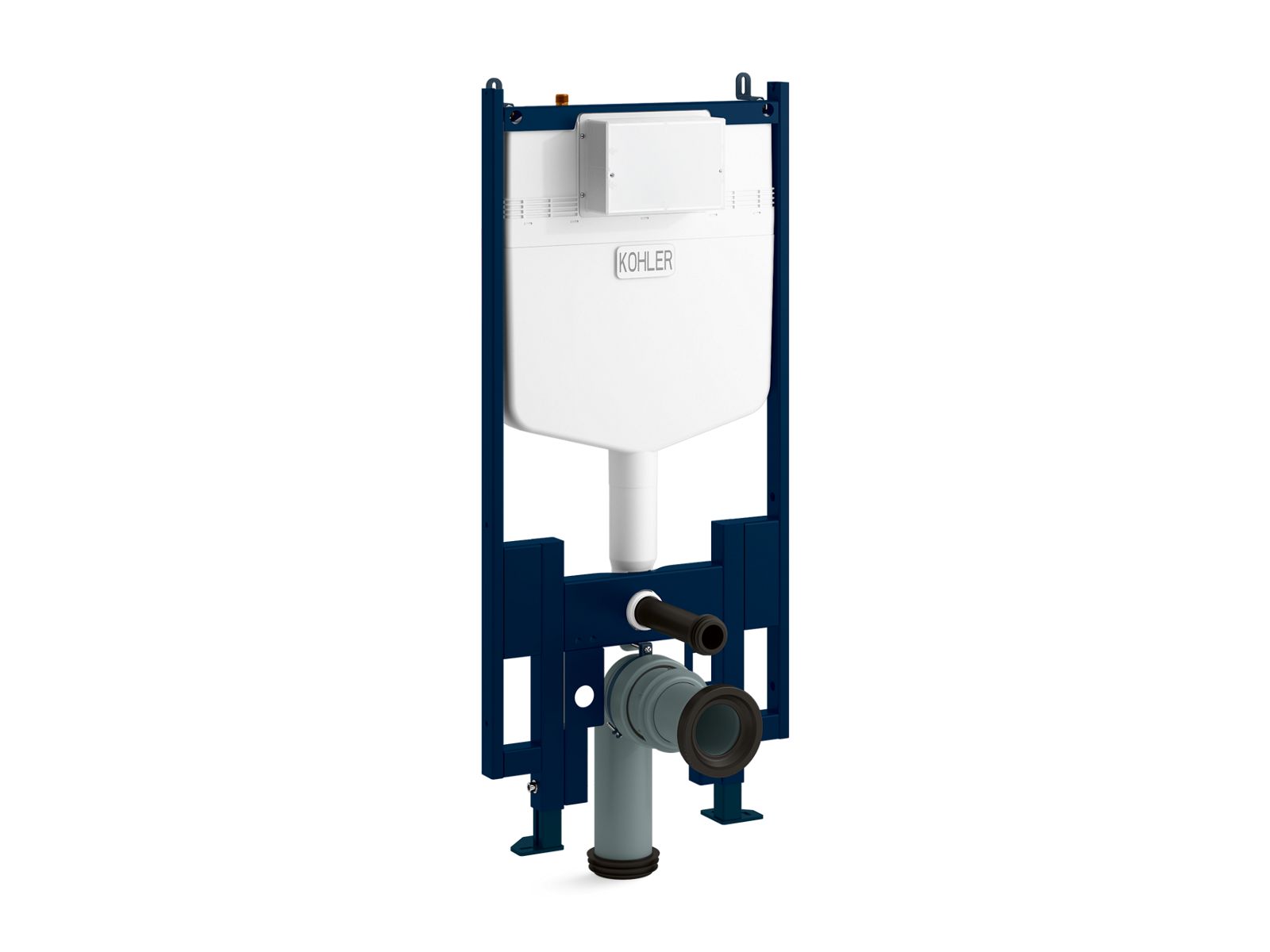

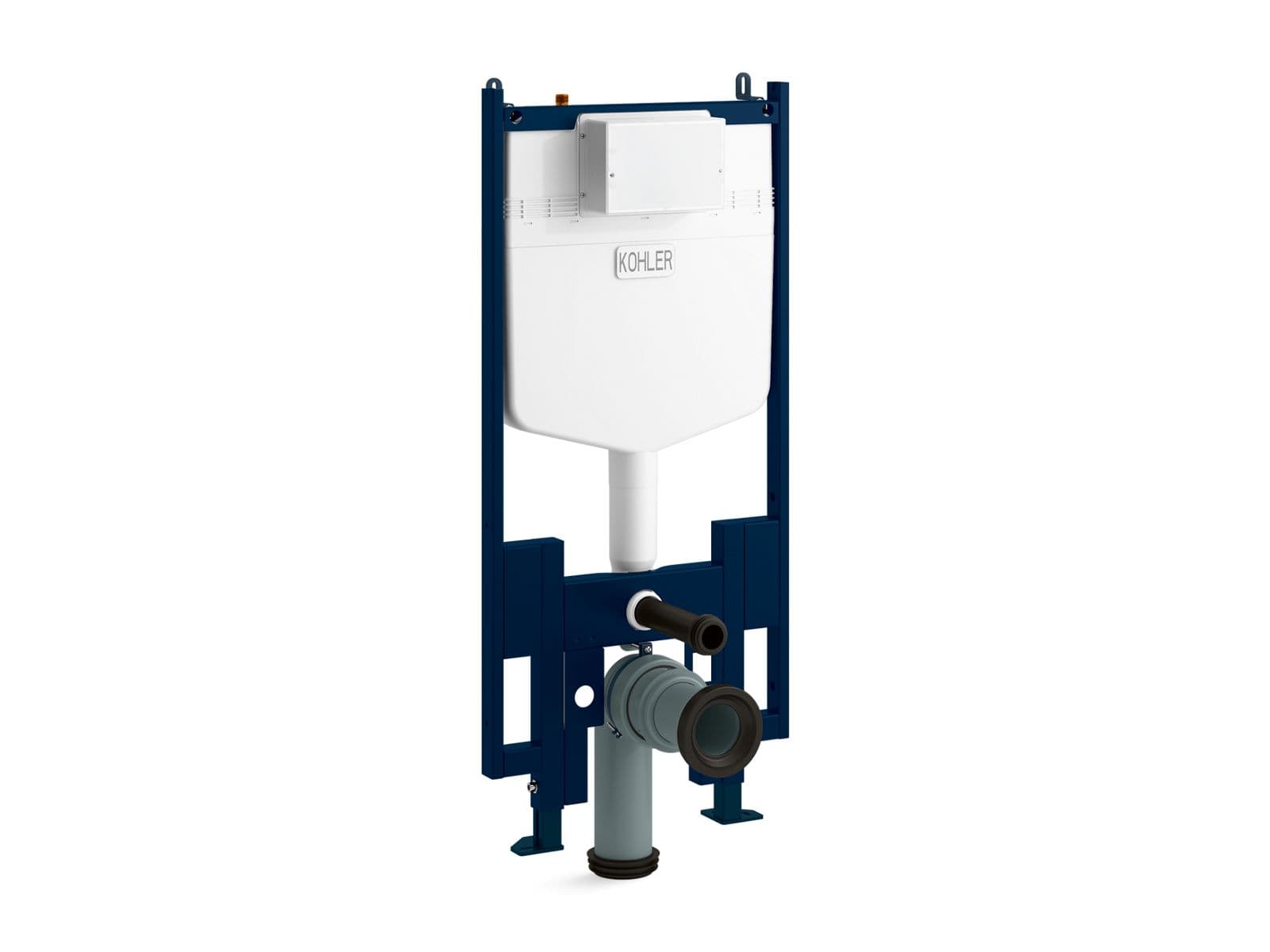

Kohler In-Wall Tank and Carrier System - 0.8 or 1.6 GPF
Item #: 28829-NA
UPC: 195711065490
Free Shipping on LTL freight orders over $99
Additional items needed for installation
Overview
With its insulated tank, durable steel frame, large flush actuator opening, and adjustable height, this KOHLER® in-wall 0.8 or 1.6 gpf toilet tank and carrier system provides unparalleled installation flexibility. The dual-flush actuator offers a choice of 0.8 or 1.6 gpf, and this in-wall tank combines with compatible wall-hung toilet bowls and select flush actuator plates to create a complete toilet solution. With KOHLER®, it’s easy to find the design solution that’s right for you.
In-wall tank and carrier system
Features
- Robust steel frame
- Insulated tank to prevent sweating
- Dual-flush actuator offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0 lpf)
- Large flush actuator plate opening can be removed for easy access to inner tank
- Adjustable height allows bowl to be set from drainage outlet centerline to frame bottom 6-7/16" – 19-13/16" (164 – 503 mm) from floor
- Works with compatible wall-hung bowls and select flush actuator plates to create a complete solution
- Eligible for consumer rebates in some municipalities
Specifications
Product Specifications
| GTIN | 00195711065490 |
|---|---|
| Finish | Not Applicable |
| Shipping | L:23.23"x W:55.91"x H:7.87" 18.2 lbs. |
| Collection | Kohler |
| Product Type | Toilet Tank |
| Stock Status | in_stock |
| Prop65 Warning | Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Online Product ID | 16217663 |
| Release For Shipment | 2023-05-22T00:00:00Z |
| Manufacturer Warranty | KOHLER® Toilets and Seats Limited Warranty |
Dimensions
| Width | 20.47" |
|---|---|
| Height | 45.67" |
| Length | 3.15" |
| Weight | 18.2 lbs. |
| Overall Width Inches | 20-1/2" |
| Overall Height Inches | 45-11/16" |
| Overall Length Inches | 3-1/8" |
Materials
| Material | Steel |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Replacement Parts
Genuine Kohler replacement parts compatible with Item #28829-NA.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | 1M Air Pipe Flush Assembly | 1455963 | — | |
| — | 1M Air Pipe Flush Assembly | 1472638 | — | |
| — | 62MM - 4.8L PA Flush Valve Assembly | 1516268 | — | |
| — | 62MM - 6L PA Flush Valve Assembly | 1516264 | — | |
| — | ASSEMBLY KIT FOR WALL HUNG BOWL | 1409098 | — | |
| — | Air Hose - Kohler Blue 4M | 1410781 | — | |
| — | Air Hose- Dark Blue 4M | 1410780 | — | |
| — | Angle Valve | 1357395 | — | |
| — | Assembly Kit forWall-hung Bowl | 1360138 | — | |
| — | Bracket Support | 1365359 | — | |
| — | Buckle | 1357411 | — | |
| — | CU Angle Valve | 1411861 | — | |
| — | Cover For Pneumatic | 1413977 | — | |
| — | Fixation Frame | 1534067 | — | |
| — | Fixation Pipe | 1411623 | — | |
| — | Flush valve Seat | 1373309 | — | |
| — | Frame Screw | 1372929 | — | |
| — | G12 A Filter Assembly | 1405343 | — | |
| — | Inlet Valve A1420A with Elbow - PA | 1572214 | — | |
| — | Inlet Valve Bracket | 1357407 | — | |
 | Kohler Genuine Parts KIT, Connecting PIPE | K-1242554 | $17.18 | |
| — | L-Adjustment Pipe | 1365351 | — | |
| — | Oulet Pipe Gasket | 1360107 | — | |
| — | Outlet Pipe | 1405351 | — | |
| — | P-Trap Waste Pipe Assembly | 1523533 | — | |
| — | Pneumatic Actuator | 1365358 | — | |
| — | Rubber Gasket | 1406059 | — | |
| — | Rubber Gasket | 1406060 | — | |
| — | Rubber Gasket C | 1406067 | — | |
| — | Square Mask Assembly | 1360118 | — | |
| — | Support Foot Left | 1409101 | — | |
| — | Waste Pipe Assembly | 1655811 | — | |
| — | — | 1523534 | — | |
| — | — | 1522877 | — | |
| — | — | 1409102 | — | |
