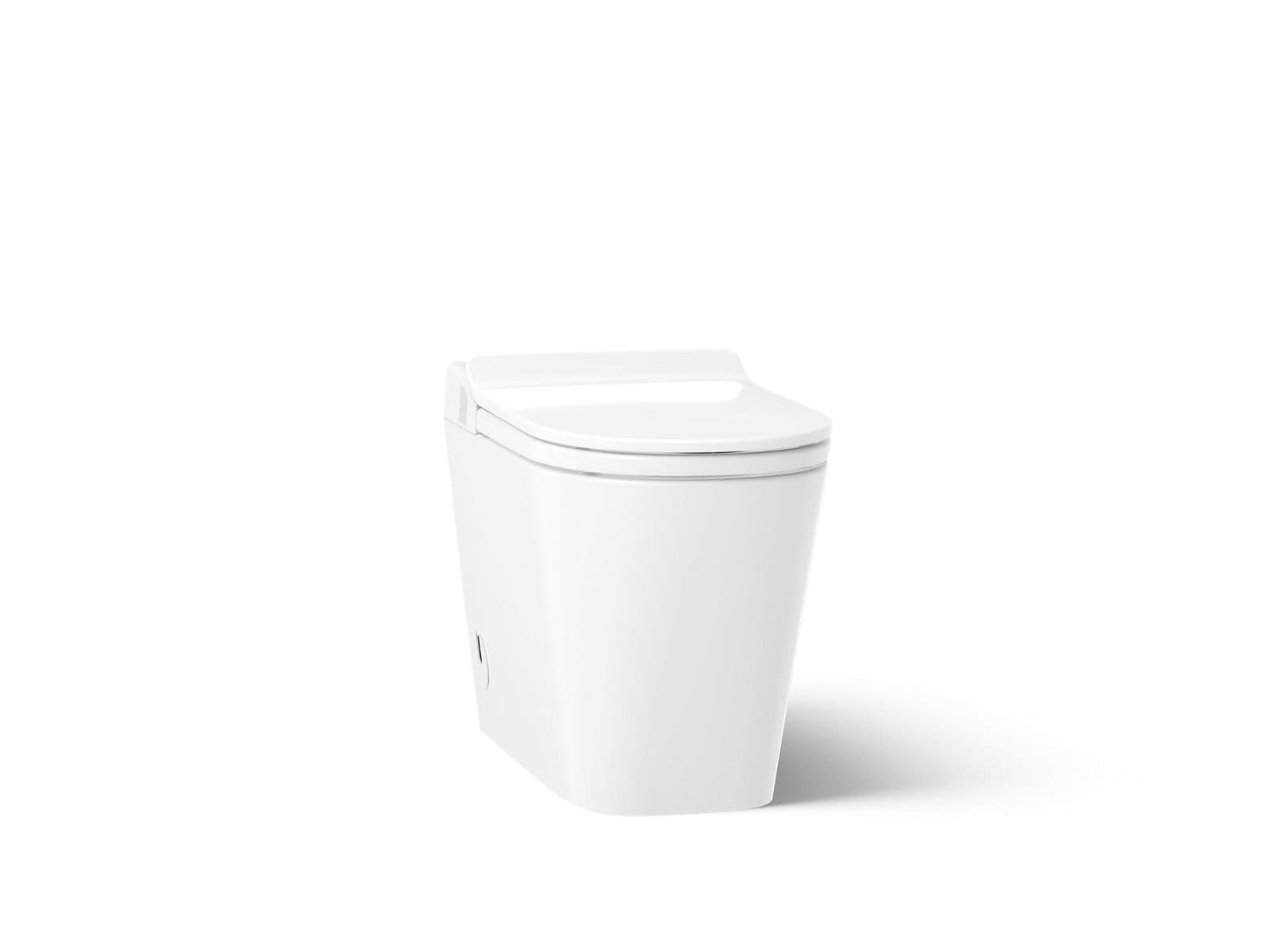

Kohler Leap® One-Piece Elongated Smart Toilet - Dual-Flush - Comfort Height in White
Item #: 28529-0
UPC: 195711189318
Free Shipping on LTL freight orders over $99
Overview
Leap™ One-piece elongated smart toilet, dual-flush
One-piece elongated smart toilet, dual-flush
Features
- Slim, contemporary one-piece smart toilet with integrated personal cleansing
- Elongated bowl offers added room and comfort
- Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
- Designed to support easier transfers from wheelchair
- Dual-flush offers a choice of 1.0 or 1.28 gpf (3.4 or 4.8 lpf)
- Fully skirted trapway simplifies cleaning
- Easy installation system provides a simple solution for skirted toilets
- Quiet-Close™ elongated lid and seat prevents slamming
- Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions
- Self-cleaning function uses UV light to automatically clean the wand surfaces
- Motion-activated, hands-free opening/closing of cover
- Heated seat with adjustable temperature settings
- Warm-air drying system
- Automatic deodorization system
- Sleek, handheld remote control
- Emergency flush supports up to 100 flushes during power outage with simple touch-button activation
- Energy Save feature monitors usage and adjusts heated seat settings to save energy
- Automatic flushing after every use; flush can also be controlled by the remote control or backup button
- Includes complete toilet and seat, supply stop valve, braided inlet supply hose, power cord, and remote control
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| GTIN | 00195711189318 |
| Finish | White |
| CALGreen | Yes |
| Shipping | L:27.76"x W:16.06"x H:17.72" 86.08 lbs. |
| Warranty | KOHLER® Intelligent Toilet and C3® Cleansing Seat Three-Year Limited Warranty |
| Glb Path | /api/models/kohler/28529-ny.glb |
| Oversized | Yes |
| Collection | Leap |
| Watersense | Yes |
| Vntana Uuid | 9253dad9-5041-46de-9269-acd5fc030951 |
| Product Type | Intelligent Toilet |
| Csa Compliant | Yes |
| Product Style | Contemporary |
| Asme Standards | ASME A112.4.2/CSA B45.16;ASME A112.19.2/CSA B45.1;ASME A112.19.14 |
| Prop65 Warning | WARNING: Cancer – www.P65Warnings.ca.gov |
| Product Warranty | KOHLER® Intelligent Toilet and C3® Cleansing Seat Three-Year Limited Warranty |
| Online Product ID | 15379762 |
Dimensions
| Width | 14.51" |
|---|---|
| Height | 20.03" |
| Length | 26.8" |
| Weight | 105.727 lbs. |
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #28529-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Angled Base Pair CAM Assembly Kit | 1559420 | — | |

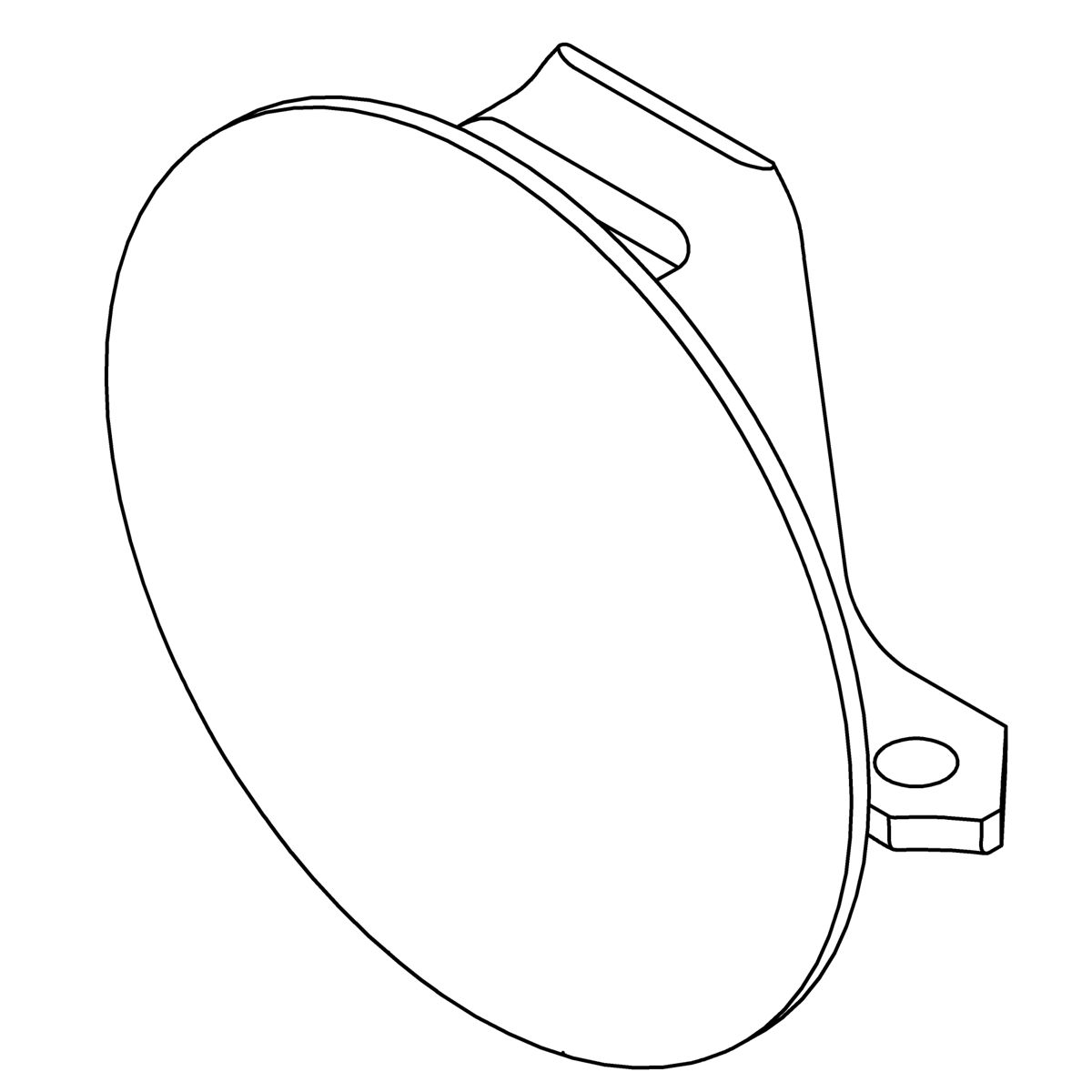

 | Cover | K-1469097 | $2.41 | |
| — | Cover for VC Side Hole | 1563185 | — | |
 | Filter Ball Valve | K-1575640 | $15.30 | |
 | Hinge Cap | K-1563151 | $1.18 | |
 | Kohler Genuine Parts Deodorization Block | K-1563182 | $11.30 | |
| — | Kohler Genuine Parts LEAP RF Remote Control | K-1577445 | $85.80 | |

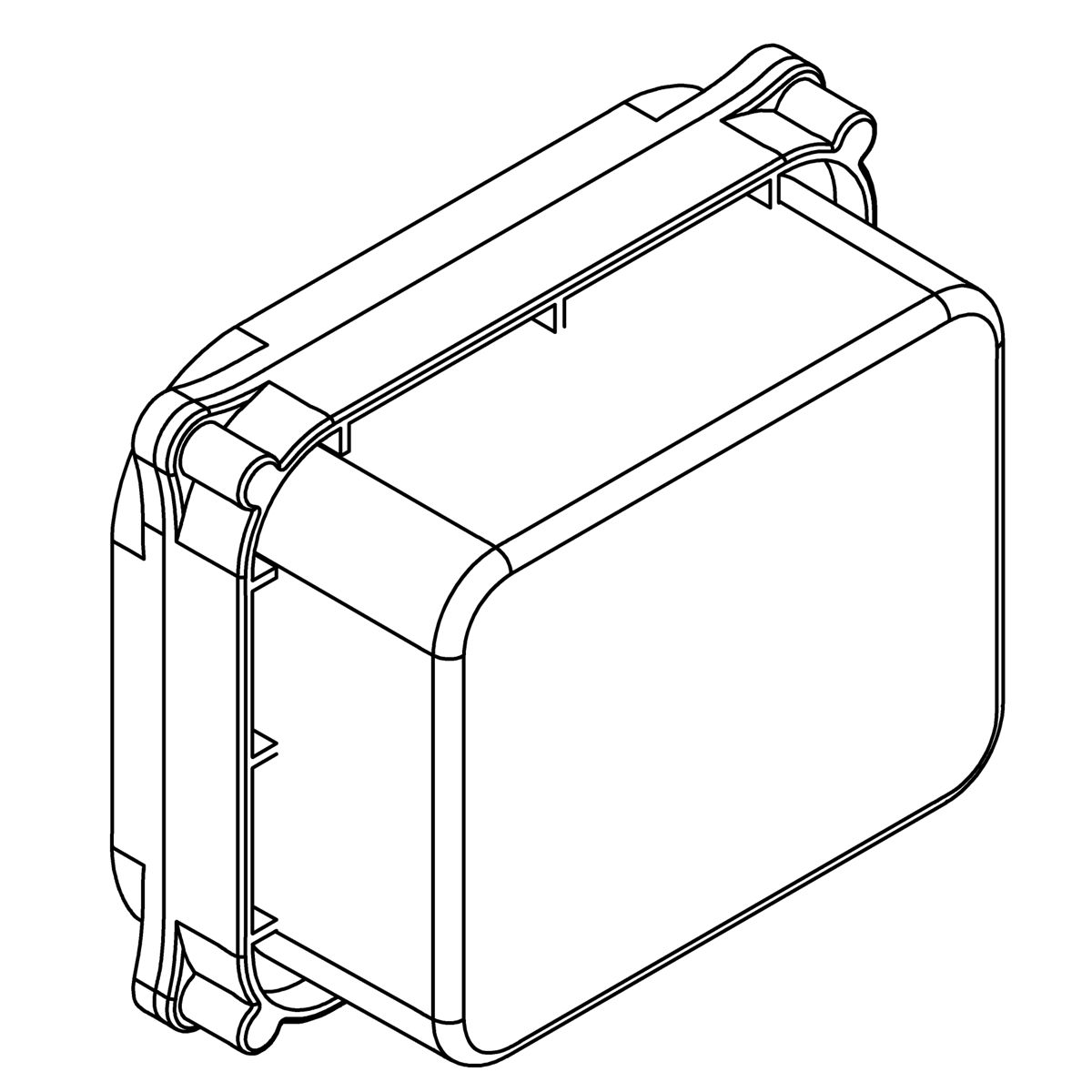

 | Kohler Genuine Parts OPP Battery BOX ASM PA | K-1575643 | $42.25 | |
 | Kohler Genuine Parts Stainless Steel WIRE Braided PIPE | K-1575644 | $15.95 | |
 | Lid Bumper | K-1563138 | $1.18 | |
 | Seat Bumper | K-1563168 | $1.18 | |
| — | — | 1612361 | — | |
| — | — | 1612366 | — | |
| — | — | 1658601 | — | |
