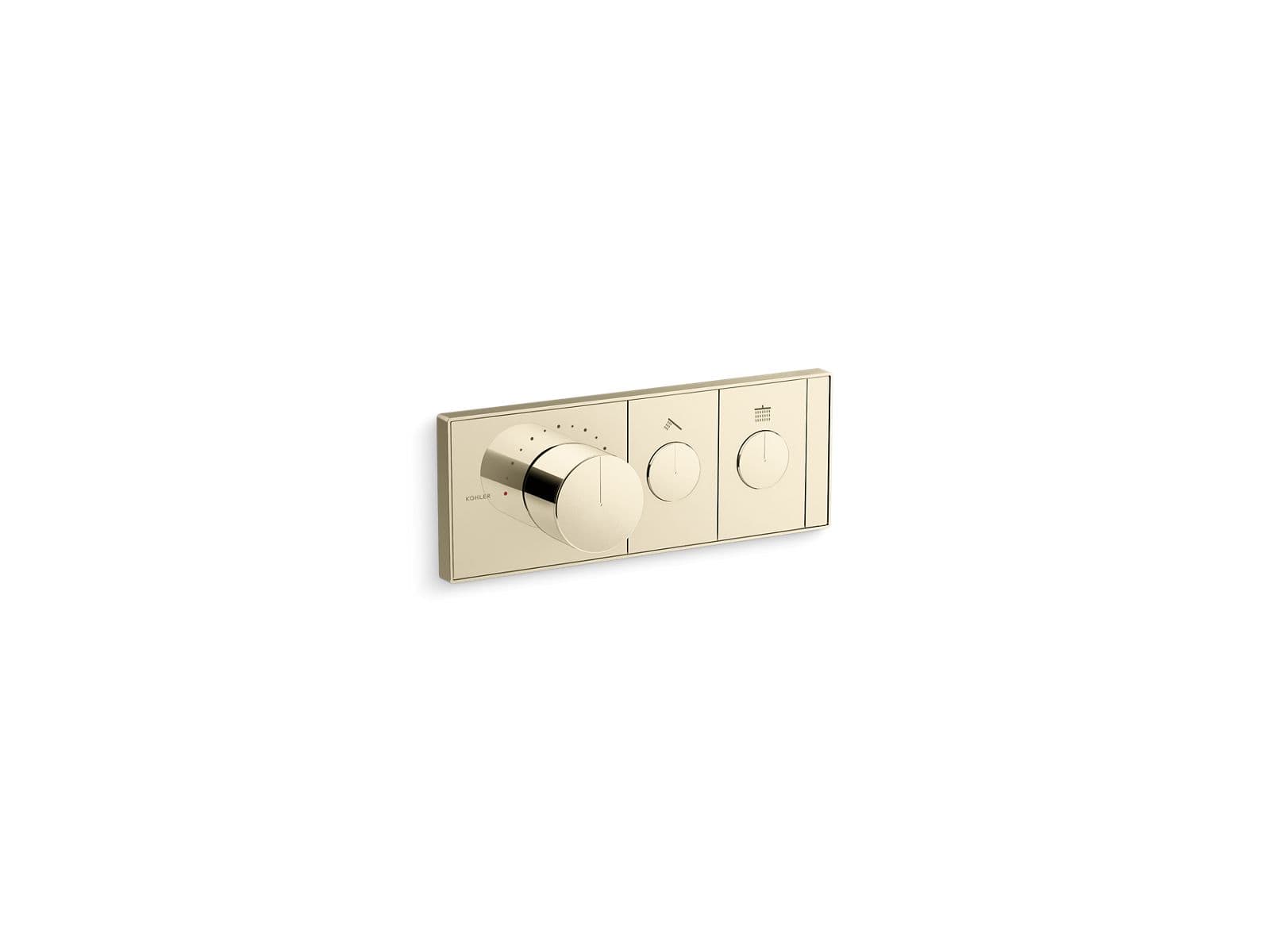

Kohler Anthem Two-Outlet Recessed Mechanical Thermostatic Valve Control in Vibrant French Gold
Item #: 26346-9-AF
UPC: 195711092854
Additional items needed for installation
Overview
Thermostatic technology allows you to maintain consistent temperature and flow control for the ultimate shower experience. This sleek KOHLER® Anthem thermostatic valve control panel with recessed push buttons is designed for use with select Anthem two-port thermostatic valves. The trim plate includes a temperature control knob with integrated adjustable high-temperature limit stop as well as shower outlet activation buttons that pop out for the adjustment of water flow (up to 8 gpm).
Two-outlet recessed mechanical thermostatic valve control
Features
- Trim plate includes temperature control knob with integrated adjustable high-temperature limit stop and shower outlet on/off buttons
- When pressed once, shower outlet turns on and button pops out, becoming a knob for water flow adjustment
- When pressed back in, water turns off and outlet button aligns with control plate surface; flow setting remains intact
- High-temperature limit setting for added safety
- Low-profile design with easy-to-clean water-resistant casing
- Requires two-port thermostatic valve with integral volume control (sold separately)
- Handles up to 8 gpm (30.3 lpm) flow capacity (rate may vary by installation)
Specifications
Product Specifications
| GTIN | 00195711092854 |
|---|---|
| Finish | Vibrant French Gold |
| Shipping | L:12.31"x W:8.94"x H:3.69" 5.07 lbs. |
| Warranty | Faucet Lifetime Limited Warranty |
| Collection | Anthem |
| Product Type | Volume Control Trim |
| Stock Status | in_stock |
| Product Style | Transitional |
| Asme Standards | ASME A112.18.1/CSA B125.1 |
| Product Warranty | KOHLER® Faucet Lifetime Limited Warranty |
| Online Product ID | 13500948 |
| Release For Shipment | 2022-01-05T00:00:00Z |
| Minimum Order Quantity | 1 |
Dimensions
| Weight | 5.07 lbs. |
|---|
Materials
| Material | Zinc |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #26346-9-AF.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Bearing | K-1391714 | $1.70 | |
 | Connector | K-1377198 | $2.30 | |
 | Handle Kit | K-1494150 | $4.90 | |
 | Handle Kit | K-1494149 | $7.60 | |
 | Kohler Genuine Parts CAP, TH Handle - French Gold Brushed Chrome | K-1391732-G | $5.05 | |
 | Kohler Genuine Parts Screw,plaster Guard | K-834560 | $2.80 | |
| — | Kohler Genuine Parts TH Handle ASSY - French Gold Brushed Graphite | K-1391727-BGP | $64.95 | |
| — | Kohler Genuine Parts TRIM Plate - French Gold Brushed Graphite | K-1391726-BGP | $26.25 | |
 | Kohler Genuine Parts TRIM Plate - French Gold Brushed Graphite | K-1391725-BGP | $43.00 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold Brushed Graphite | K-1413568-BGP | $44.85 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold French Gold | K-1413570-AF | $32.95 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold Brushed Graphite | K-1413576-BGP | $44.85 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold Brushed Graphite | K-1413575-BGP | $44.85 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold French Gold | K-1413574-AF | $32.95 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold Brushed Graphite | K-1413573-BGP | $44.85 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold French Gold | K-1413572-AF | $32.95 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold French Gold | K-1413571-AF | $32.95 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold Brushed Graphite | K-1413569-BGP | $44.85 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold Brushed Graphite | K-1413566-BGP | $44.85 | |
 | Kohler Genuine Parts TRIM Plate, ICON - French Gold Brushed Graphite | K-1413567-BGP | $44.85 | |
| — | Kohler Genuine Parts TRIM Plate, W/ ICON & LOGO - French Gold Brushed Graphite | K-1406868-BGP | $60.30 | |
 | O-Ring | K-48686 | $2.70 | |
 | O-Ring | K-51251 | $2.60 | |
| — | RETAINER RING | K-1527462 | $2.65 | |
 | Screw | K-1391711 | $2.05 | |
 | Screw, Metric | K-833438 | $2.45 | |
 | Stopper | K-1391713 | $3.25 | |
 | Washer,Spring | K-1377197 | $1.95 | |
| — | — | 1674617 | — | |
