Kohler Branham® Full-Stall Washout Urinal - Rear Spud - 0.5/1.0 GPF in White
Item #: 25039-R-0
UPC: 885612725394
Free Shipping on LTL freight orders over $99
Overview

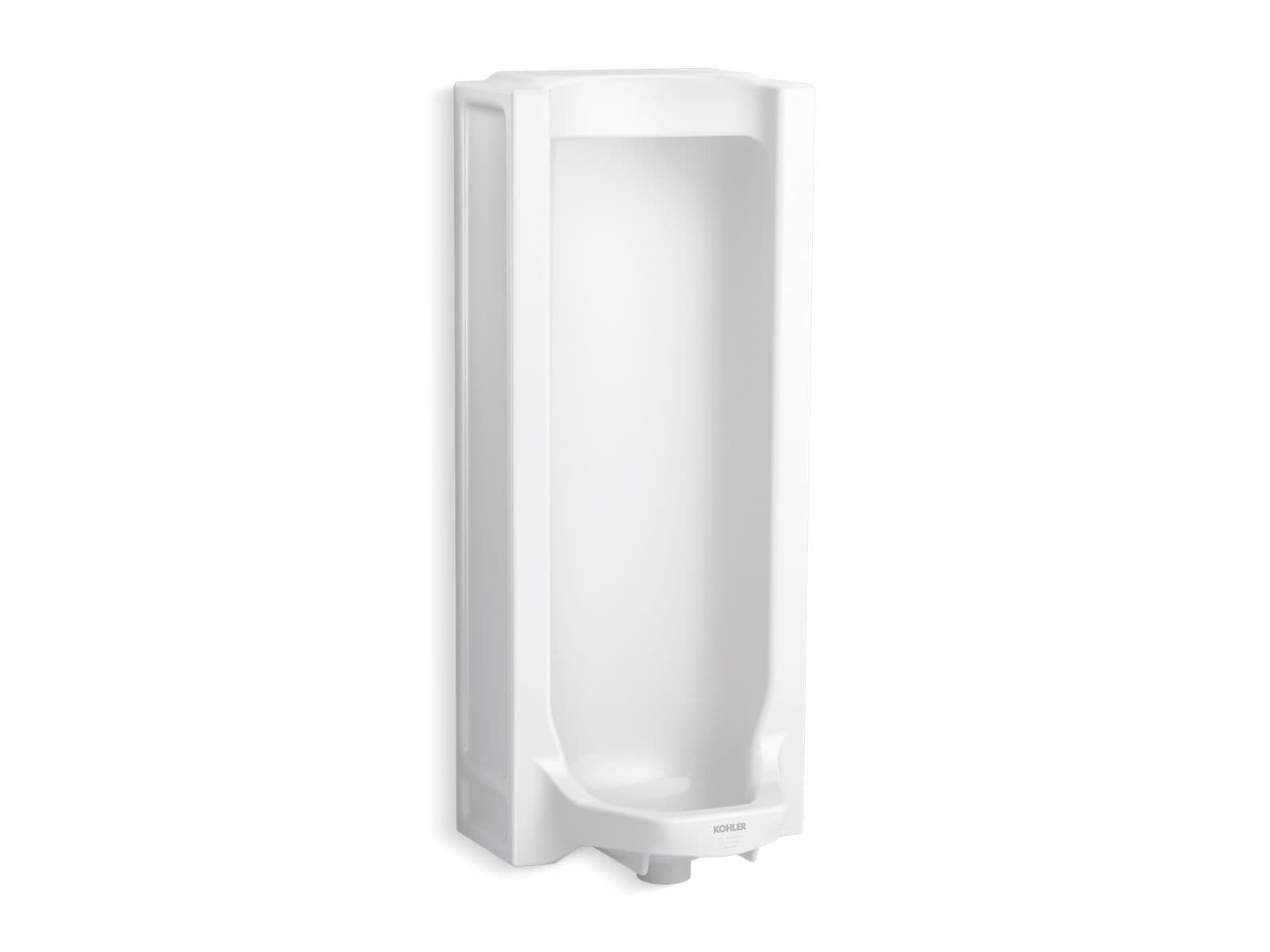

Branham™ Full stall washout urinal with rear spud
Full stall washout urinal with rear spud
Features
- Full-stall wash-down urinal
- 0.5 or 1.0 gpf (1.9 or 3.8 lpf)
- Lip of urinal installs below floor level for easier cleaning around fixture
- Full length sidewalls provide added privacy
- External trapway
- 3/4" (19 mm) rear spud
- Drain sold separately
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| GTIN | 00885612725394 |
| Finish | White |
| CALGreen | Yes |
| Shipping | L:45.63"x W:19.63"x H:19.81" 114.79 lbs. |
| Oversized | Yes |
| Collection | Branham |
| Watersense | Yes |
| Product Type | Urinal |
| Csa Compliant | Yes |
| Product Style | Transitional |
| Asme Standards | ASME A112.19.2/CSA B45.1 |
| Product Warranty | KOHLER® One-Year Limited Warranty |
| Introduction Date | 12/20/2019 |
| Online Product ID | 9460592 |
Dimensions
| Width | 18.25" |
|---|---|
| Height | 42.5" |
| Length | 16.29" |
| Weight | 114.790 |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #25039-R-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | 1 1/2-11 1/2 Npsm Nut Brushed Black Pvd | K-28504-BKB | $72.00 | |
 | Gasket | K-41550 | $2.45 | |
 | Gasket | K-41800 | $10.50 | |
 | Gasket, Rubber | K-53384 | $26.50 | |
 | Kohler Genuine Parts China Grate - White | K-53411-0 | $122.58 | |
 | Kohler Genuine Parts Screw, 8 - 32 X 1.125 - Polished Stainless | K-53382-S | $5.55 | |
 | Kohler Genuine Parts Strainer, Urinal, Passivated, Buffed - Polished Stainless | K-53415-S | $61.67 | |
 | Kohler Genuine Parts Tailpiece, 4 LONG - Polished Stainless | K-41714-S | $9.40 | |

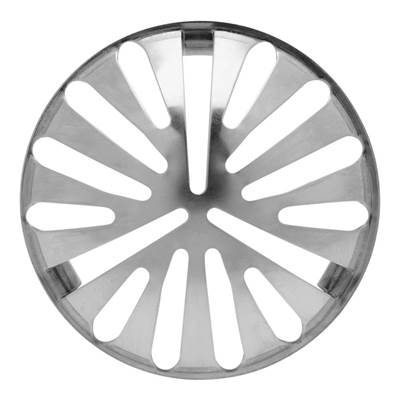

 | Kohler Genuine Parts Urinal Strainer, Snap-in (large) 1 7/8 | K-GP1211759 | $11.00 | |
 | Kohler Genuine Parts Urinal Strainer, Snap-in (small) 1 3/16- | K-GP1217811 | $11.40 | |
 | Nut, | K-50798 | $16.80 | |
 | Nut, 3.062-14Ns-2B | K-53376 | $67.50 | |
| — | Screw 1/4-20 X 2.63 | 28648 | — | |
 | Screw 8-32 X .375 | K-53416 | $3.55 | |
| — | Strainer Body | 53148 | — | |
| — | Strainer, Urinal, Passivated, Buffed | 53147 | — | |
 | Washer, Friction | K-53401 | $5.70 | |
 | Washer, Hard Fiber | K-50799 | $2.60 | |
| — | — | 53379 | — | |
| — | — | 1122585 | — | |
| — | — | GP85061 | — | |
