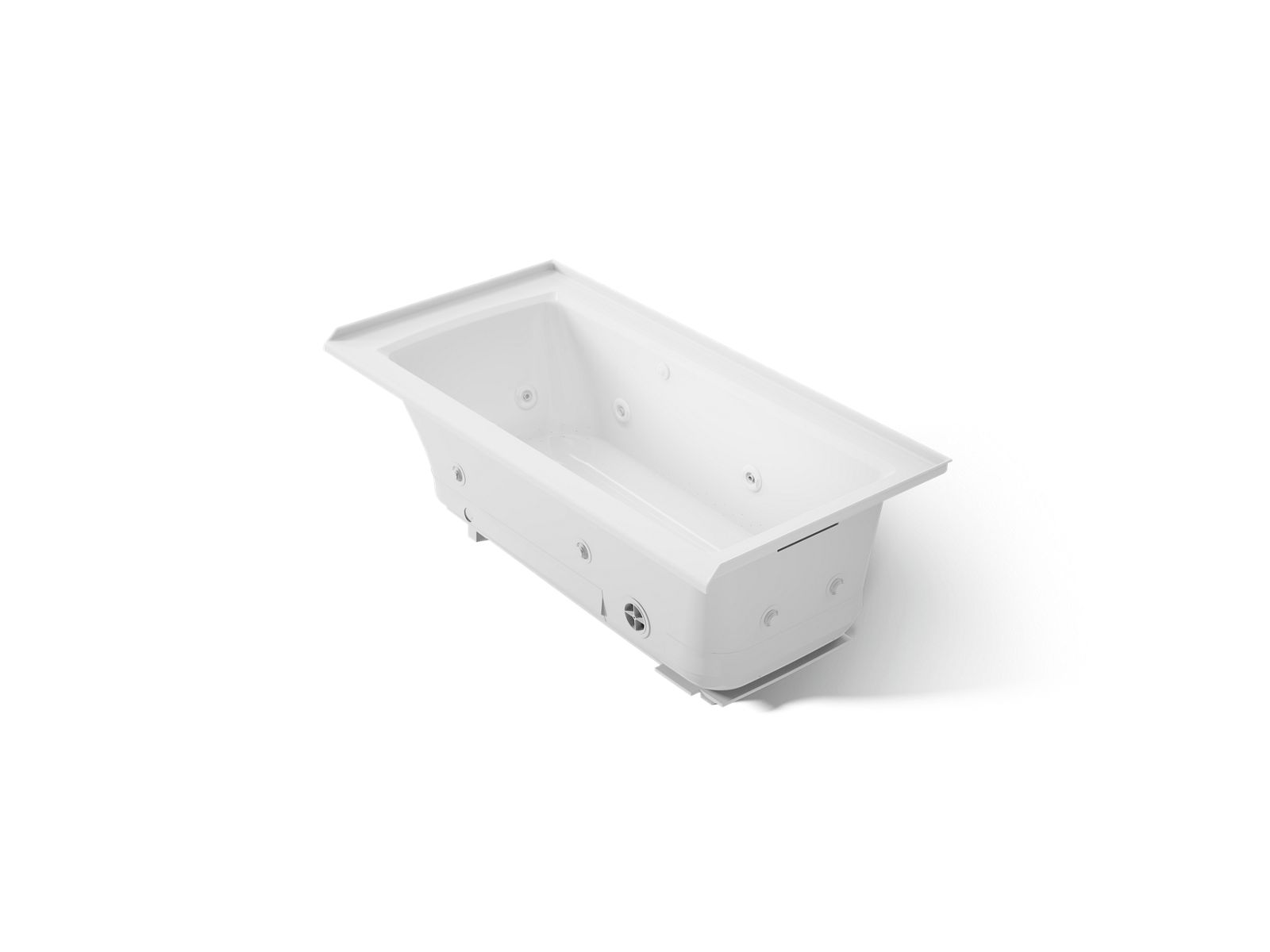

Kohler Archer 60″ x 30″ Alcove Heated BubbleMassage™ Air Bath and Whirlpool - Right Drain in White
Item #: 1947-XHGHR-0
UPC: 885612786074
Additional items needed for installation
Overview
This KOHLER® Archer bath offers both a relaxing whirlpool hydromassage and a soothing Heated BubbleMassage™, with each experience controlled independently. Whirlpool jets relax away the day's tension as you surround your body in a cushion of heated massaging bubbles. With Heated BubbleMassage™ hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage. This 60" x 30" rectangular alcove bath has a low step-over height while allowing deep, comfortable soaking.

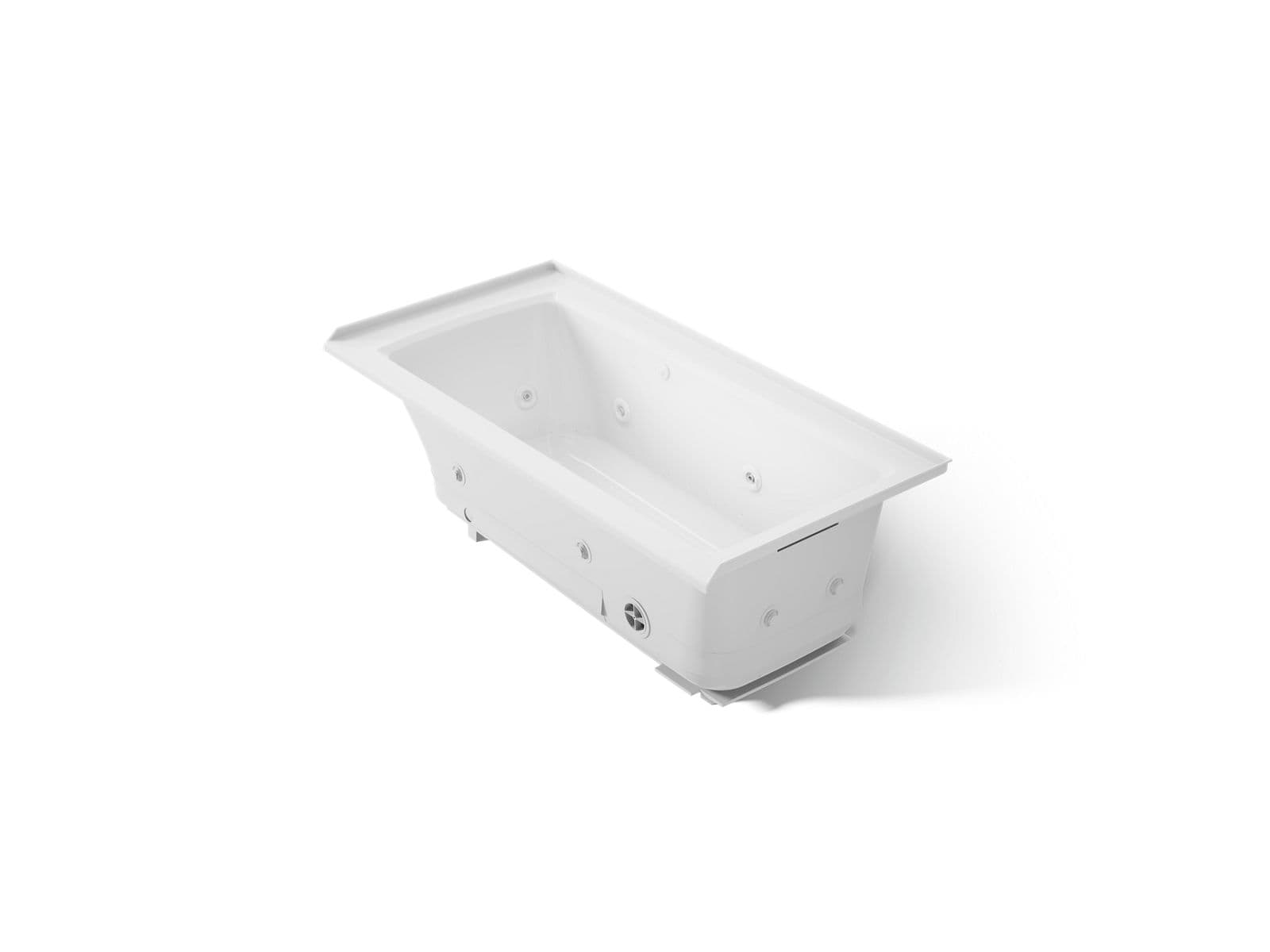

60" x 30" alcove Heated BubbleMassage™ air bath and whirlpool, right drain
Features
- 118 airjets release thousands of heated bubbles that surround and support the body in a warm massage
- Automatic and manual purge cycles remove residual water from air channels after use
- Variable-speed blower lets you adjust Heated BubbleMassage™ massage intensity to 18 levels
- Single-speed whirlpool revitalizes sore muscles
- 8 fully adjustable whirlpool jets allow users to customize hydromassage flow and direction at each jet
- Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
- Integral lumbar support
- Slotted overflow allows for deep soaking
- Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
- Textured bottom surface
- Coordinates with other products in the Archer collection
- Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| GTIN | 00885612786074 |
| Shape | Rectangle |
| Finish | White |
| Shipping | L:62.66"x W:35.31"x H:22.19" 125 lbs. |
| Oversized | Yes |
| Collection | Archer |
| Product Type | Three Wall Alcove Air Whirlpool Combo |
| Stock Status | in_stock |
| Product Style | Traditional |
| Asme Standards | ASME A112.19.7/CSA B45.10 |
| Product Warranty | KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty |
| Introduction Date | 4/1/2019 |
| Online Product ID | 5956224 |
| Freight Policy Type | 4 |
| Release For Shipment | 2019-04-01T00:00:00Z |
| Csa Product Standards | CSA B45.5/IAPMO Z124 |
Dimensions
| Width | 30" |
|---|---|
| Height | 20.25" |
| Length | 60" |
| Weight | 125.000 |
| Ship Width | 62.6600 |
| Ship Height | 22.1900 |
| Ship Length | 35.3100 |
| Ship Weight | 125.0000 |
| Overall Width Inches | 30" |
| Overall Height Inches | 20-1/4" |
| Overall Length Inches | 60" |
Materials
| Material | Acrylic |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #1947-XHGHR-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Assembly, Check Valve | K-91967 | $25.92 | |
| — | Cover, Suction | 96895 | — | |
 | Flange, Suction | K-96708 | $8.85 | |
 | Gasket, Heater | K-1222738 | $2.30 | |
 | Gasket, Tapered | K-1008241 | $3.39 | |
 | Gasket, Tapered | K-65886 | $5.05 | |
 | Heater Gasket | K-1011679 | $2.90 | |
 | Jet Flange Tool | K-1011001 | $285.57 | |
 | Jet Flange, Retail | K-1008239 | $4.95 | |
 | Jet Nozzle | K-1013249 | $4.71 | |
 | Jet Nozzle Nut | K-1013250 | $4.54 | |
 | Kohler Genuine Parts Cover, Suction - French Gold Brushed Black Pvd | K-65061-BKB | $158.15 | |
 | Kohler Genuine Parts Heater, In-line, 120V | K-1404761 | $424.40 | |
 | Kohler Genuine Parts Heater, T-style, 120V | K-1404760 | $414.58 | |
 | Kohler Genuine Parts Housing Assy, Suction | K-93685 | $30.40 | |
 | Kohler Genuine Parts JET Housing, Retail | K-1008238 | $20.09 | |
 | Kohler Genuine Parts JET TRIM KIT - White White | K-1015255-0 | $85.55 | |
 | Kohler Genuine Parts KIT, AIR Switch - White White | K-1147742-0 | $28.80 | |
 | Kohler Genuine Parts Plug, Suction Cover - White White | K-65226-0 | $4.60 | |
 | Kohler Genuine Parts Screw, 10-24 X 3.25 - Vib Bright Bronze Brushed Black Pvd | K-65054-BKB | $8.25 | |
 | Kohler Genuine Parts Tool, Suction Flange | K-1003065 | $462.04 | |
 | Pipe Plug-1" | K-67665 | $4.54 | |
 | Plug, 1.5" Pvc | K-73518 | $10.10 | |
 | Split Coupling | K-1012916 | $20.52 | |
| — | — | 60050 | — | |
| — | — | 1015161 | — | |
| — | — | 1222737 | — | |
