Kohler Veil® In-Wall Tank & Carrier - K-76395 Veil® in Not Applicable
Item #: 18647-NA
UPC: 885612514202
Free Shipping on LTL freight orders over $99
Additional items needed for installation
Overview

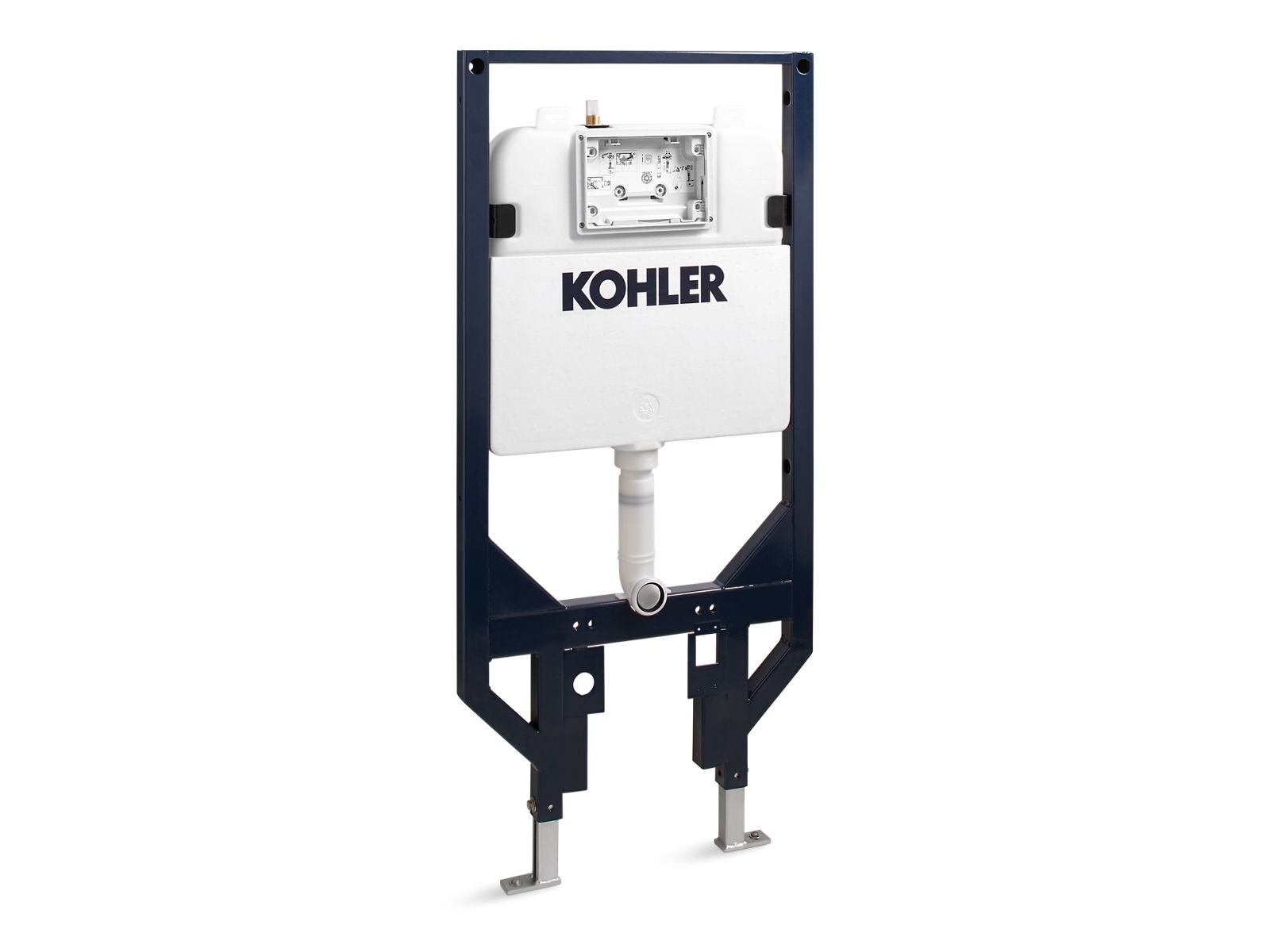

At Kohler, we make it our business to help you create the bathroom space of your dreams. This KOHLER® Veil dual-flush in-wall toilet tank and carrier completes select Veil wall-hung smart toilets. Designed with a large, easy-access actuator plate opening, the insulated tank is completely concealed within the wall and provides economical water savings with 0.8/1.6 gallon dual flushing.
In-wall tank and carrier for K-76395 Veil® wall-hung smart toilet
Features
- Robust steel frame
- Insulated tank to prevent sweating
- Large flush actuator plate opening can be removed for easy access to inner tank
- Adjustable height allows bowl to be set anywhere from 15" to 23" (381 to 584 mm) from floor
- Dual-flush actuator offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0 lpf)
- Requires K-76395 Veil smart wall-hung toilet (sold separately)
- Dual-flush technology allows you to choose between a full or partial flush
- Eligible for consumer rebates in some municipalities
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| GTIN | 00885612514202 |
| Finish | Not Applicable |
| Shipping | L:52.36"x W:19.49"x H:6.93" 35.27 lbs. |
| Collection | Veil |
| Product Type | In Wall Carrier |
| Stock Status | in_stock |
| Csa Compliant | Yes |
| Product Style | Contemporary |
| Asme Standards | ASME A112.6.2;ASME A112.19.14 |
| Prop65 Warning | Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Product Warranty | KOHLER® Intelligent Toilet and C3® Cleansing Seat Three-Year Limited Warranty |
| Introduction Date | 10/26/2016 |
| Online Product ID | 2920400 |
| Freight Policy Type | 1 |
| Release For Shipment | 2016-10-26T00:00:00Z |
Dimensions
| Width | 3.99" |
|---|---|
| Height | 51.68" |
| Length | 23.33" |
| Weight | 35.270 |
| Overall Width Inches | 4" |
| Overall Height Inches | 51-11/16" |
| Overall Length Inches | 23-5/16" |
Materials
| Material | Steel |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
Other Documents
Replacement Parts
Genuine Kohler replacement parts compatible with Item #18647-NA.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Guard, Plaster | K-1242501 | $8.40 | |

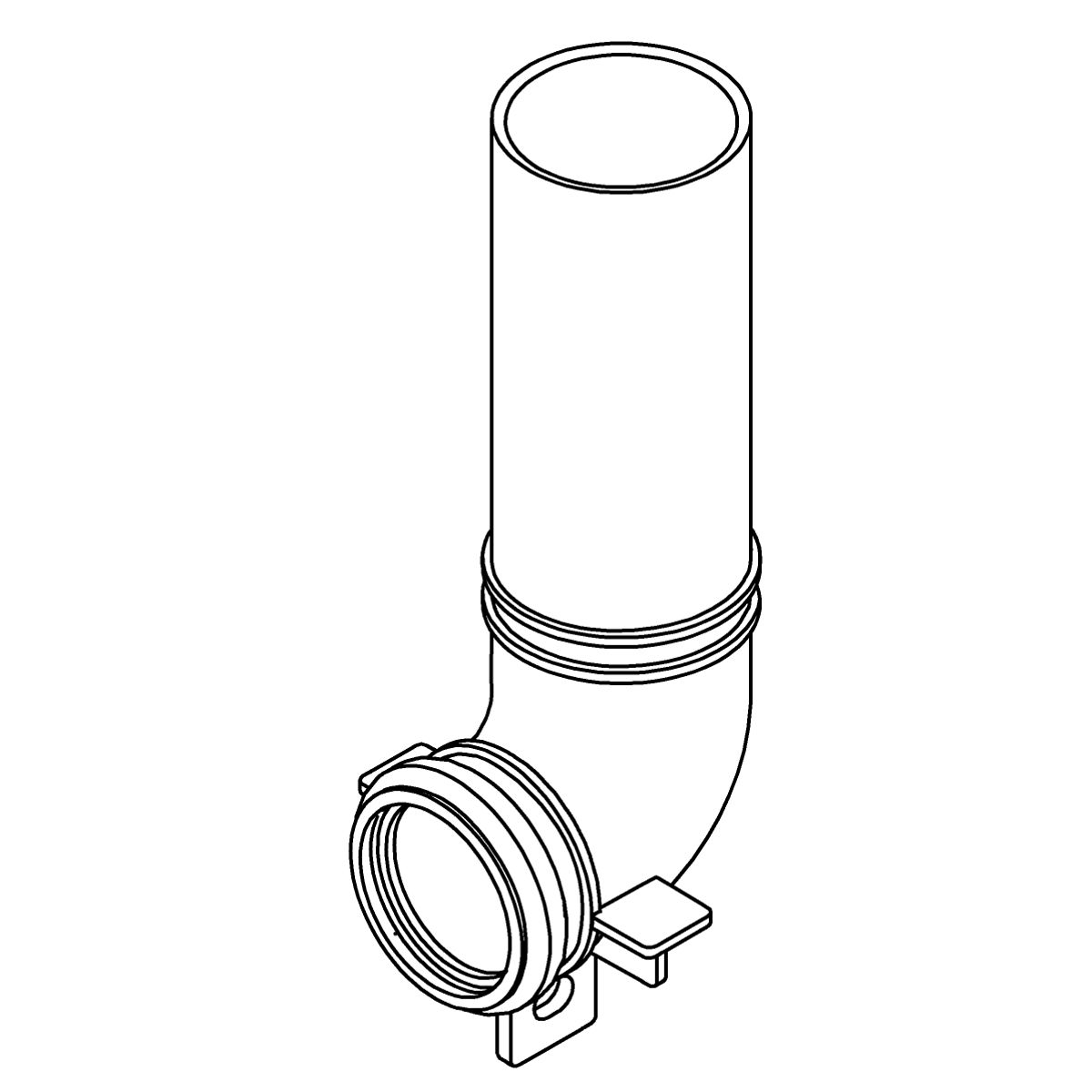

 | Kit, Down Pipe | K-1301167 | $13.59 | |
 | Kit, Drain Pipe | K-1242546 | $35.60 | |
 | Kit, Npt Adapter | K-1242548 | $8.02 | |

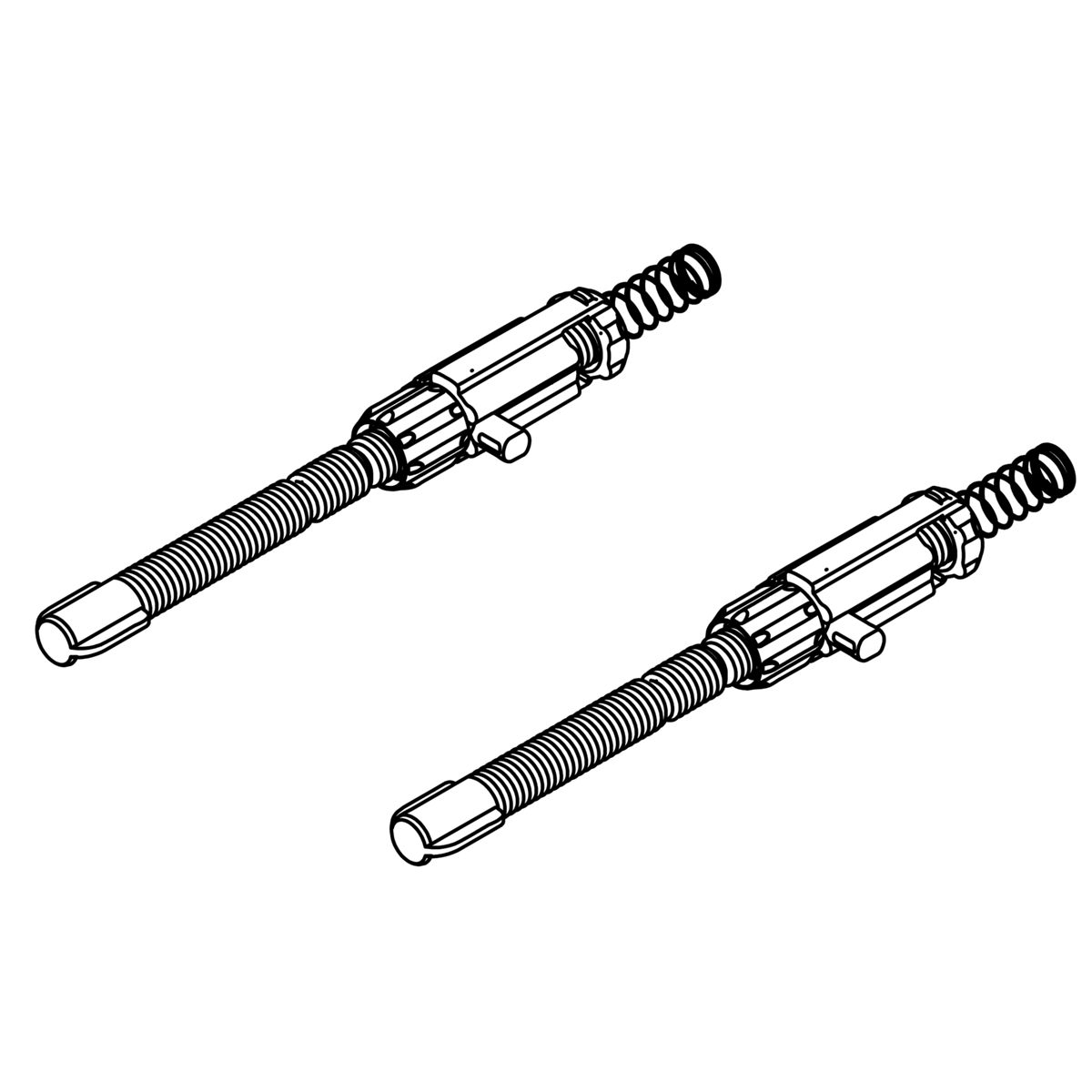

 | Kit, Push Rods | K-1242549 | $2.84 | |
 | Kit, Straight Pipe | K-1242555 | $8.39 | |
 | Kit, Tank Clips | K-1242553 | $13.24 | |
 | Kit, Tank Cover | K-1301166 | $8.37 | |

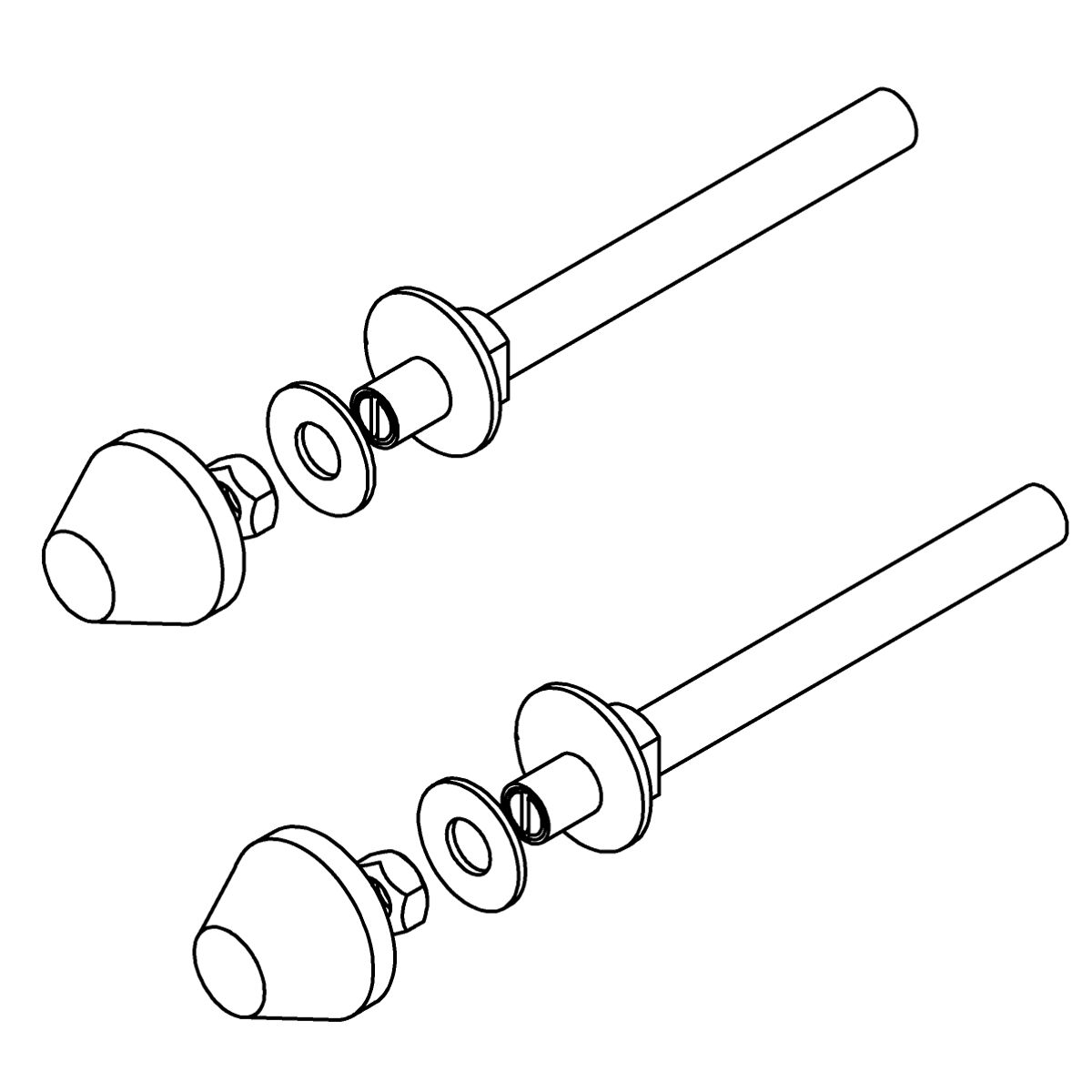

 | Kit, Toilet Bolts | K-1301168 | $19.98 | |
 | Kohler Genuine Parts KIT, Actuator Frame | K-1242552 | $5.70 | |
 | Kohler Genuine Parts KIT, Connecting PIPE | K-1242554 | $17.18 | |

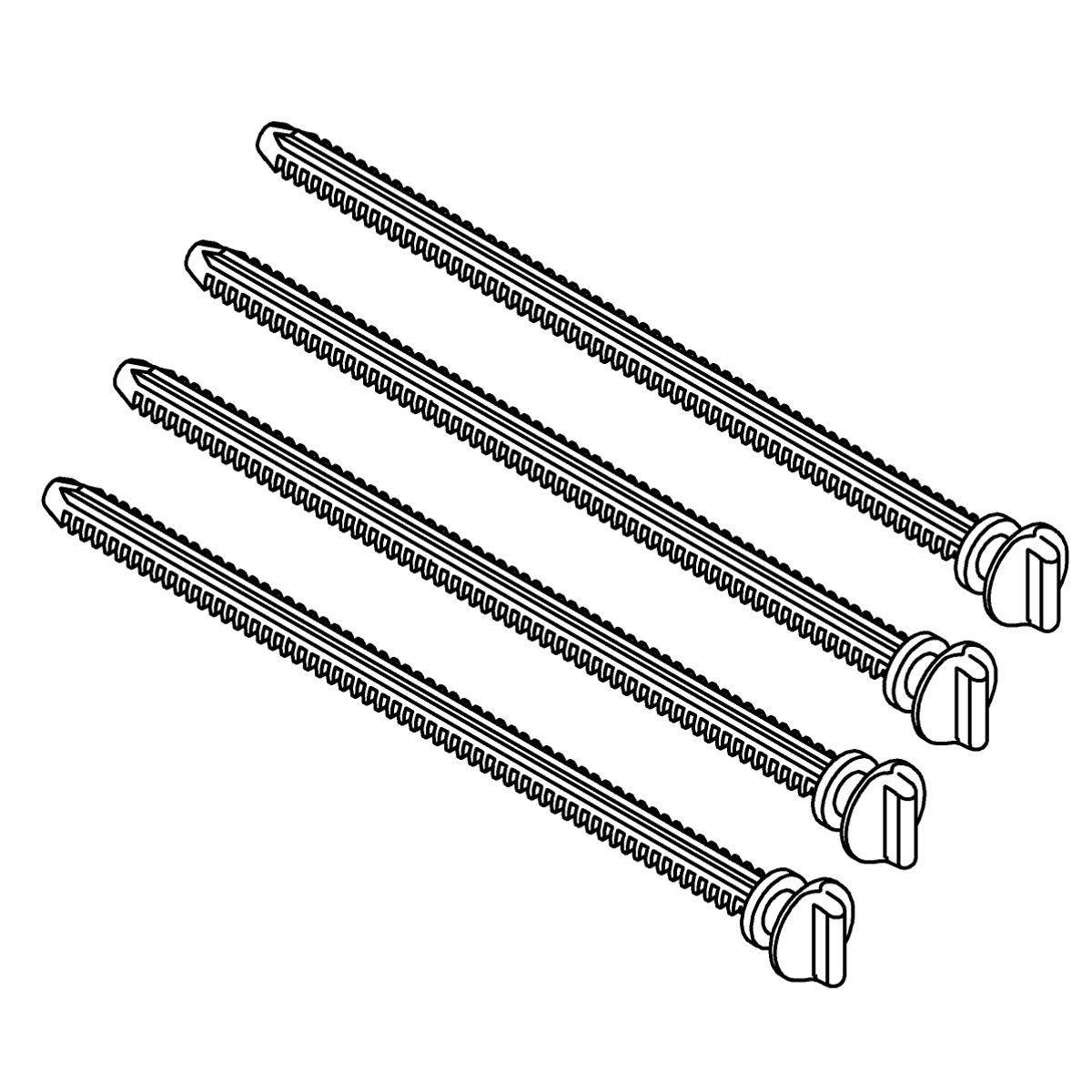

 | Kohler Genuine Parts KIT, Locking Screws | K-1301169 | $2.30 | |
 | Kohler Genuine Parts KIT, Mounting Bracket | K-1242547 | $7.40 | |

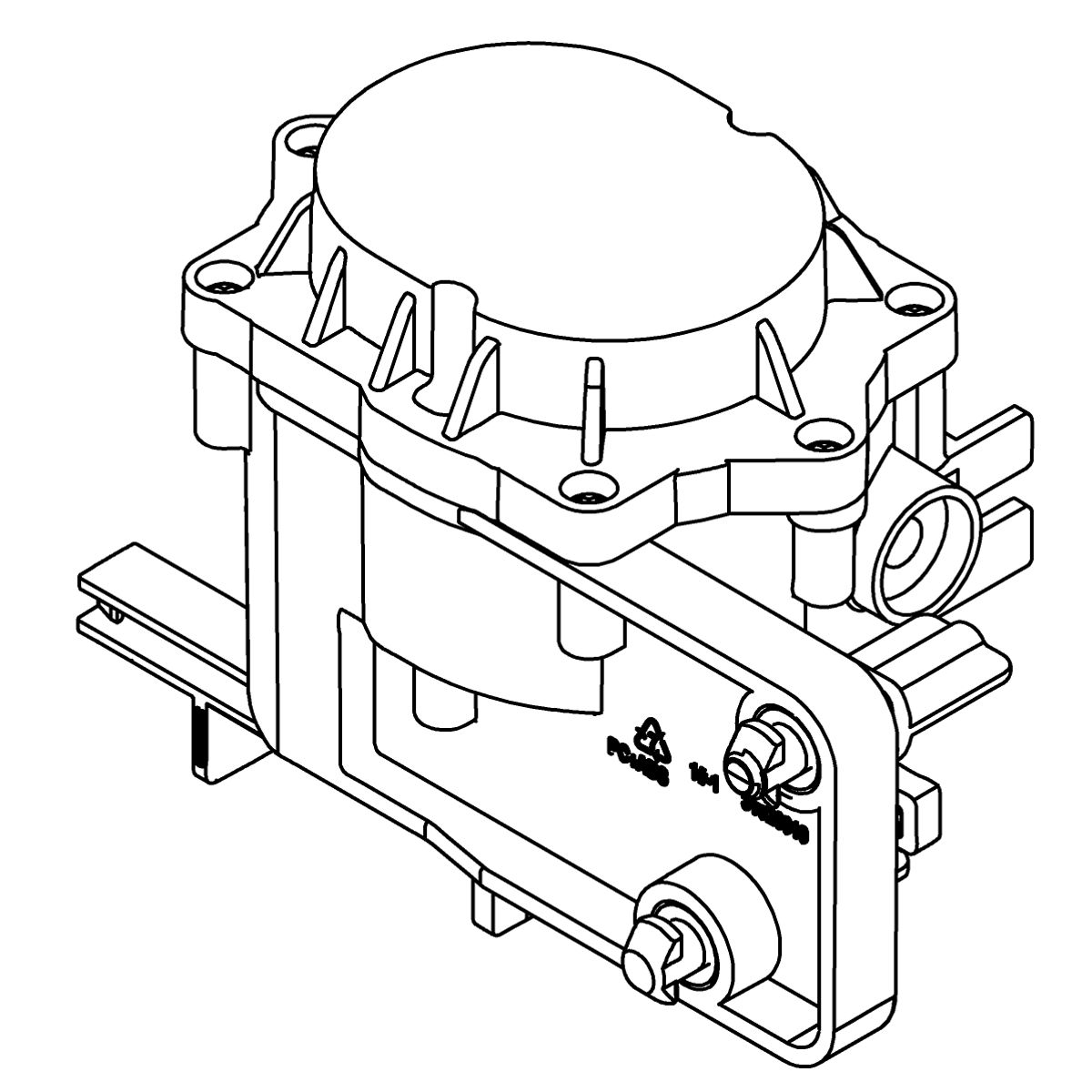

 | Motor, Flush | K-1301170 | $125.44 | |

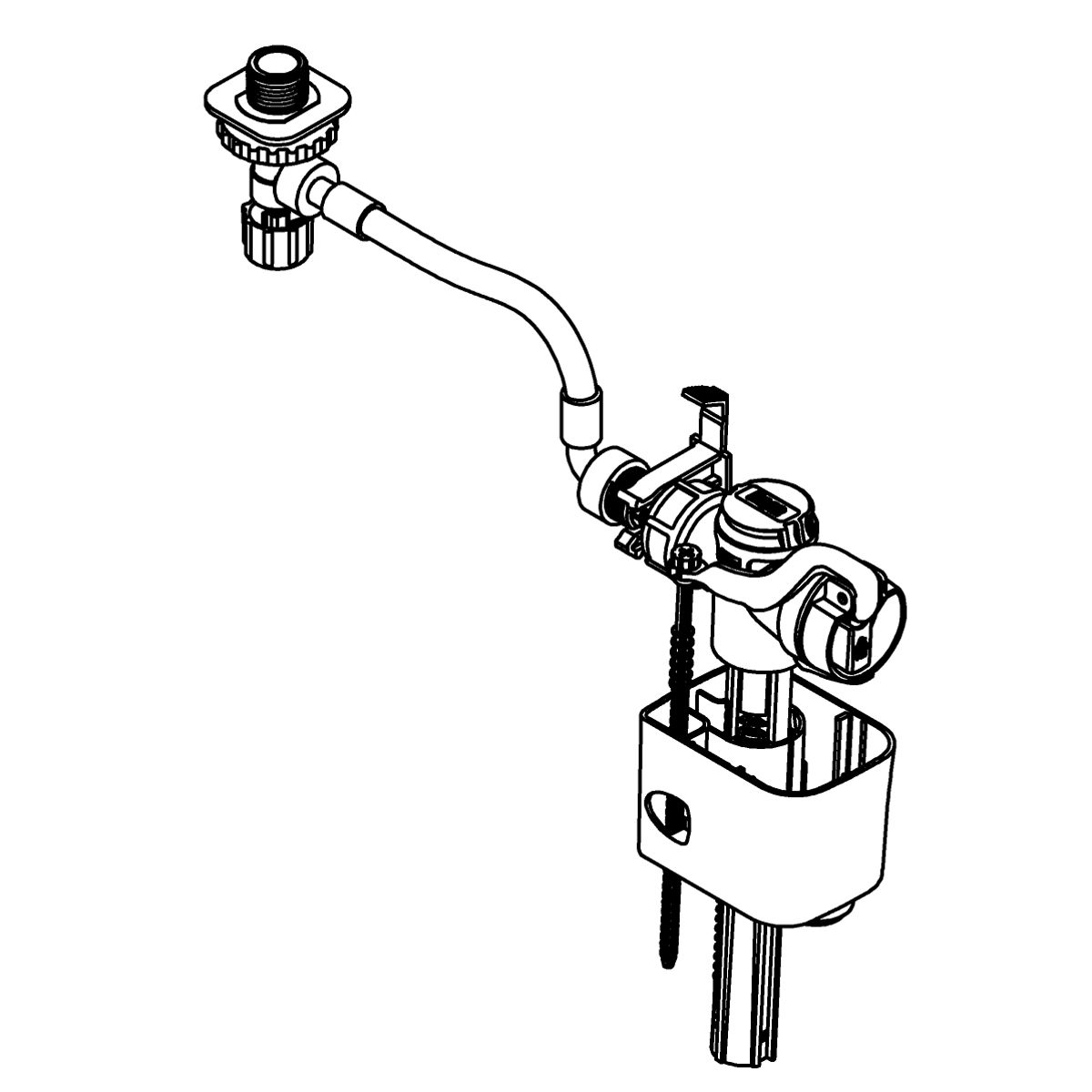

 | Valve, Fill | K-1301165 | $136.16 | |
 | Valve, Flush | K-1301164 | $34.95 | |
