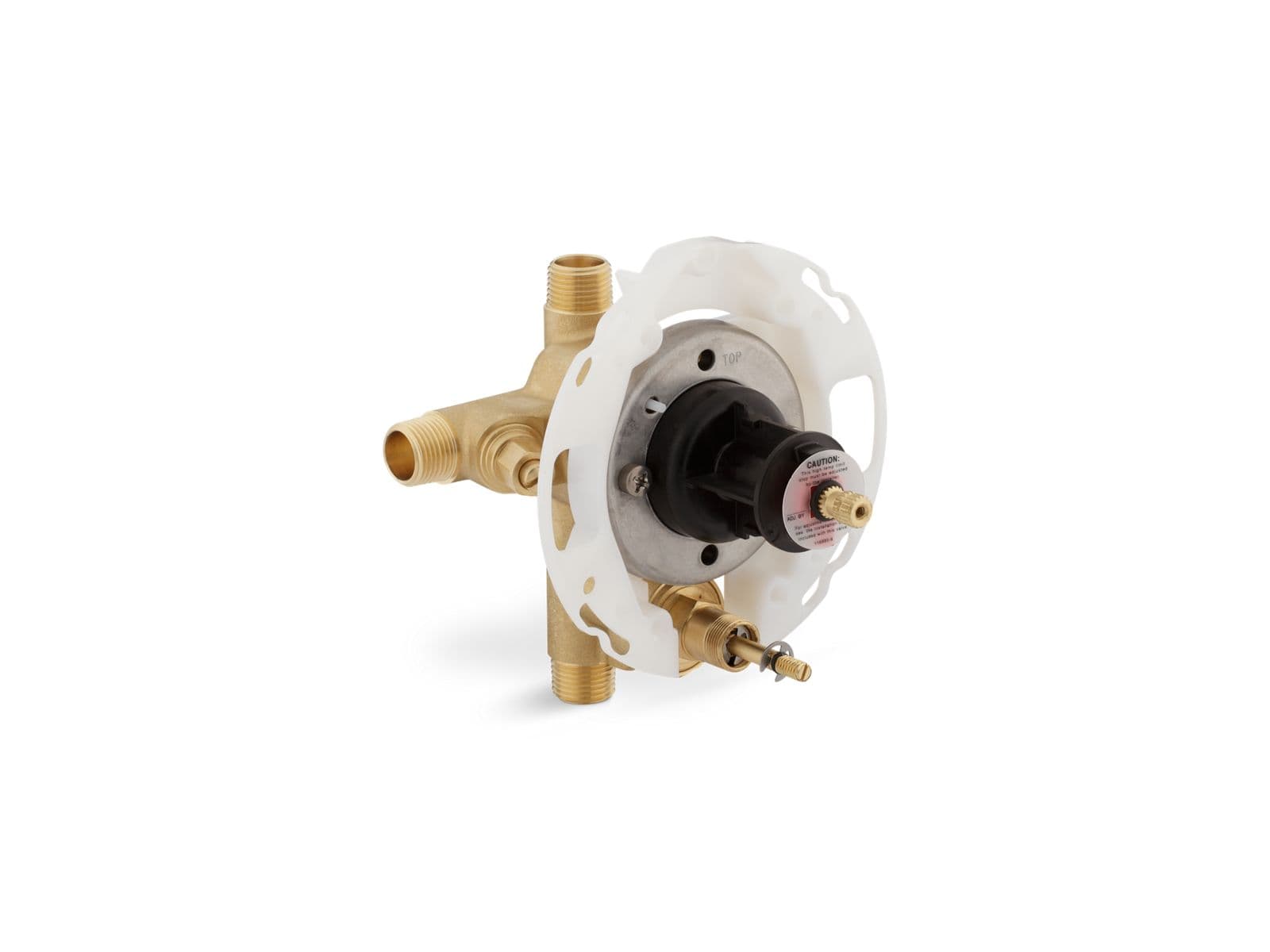

Kohler Rite-Temp® 1/2″ Pressure Balancing Valve - Push-Button Diverter - Screwdriver Stops in Not Applicable
Item #: 11748-KS-NA
UPC: 650531867001
Free Shipping on LTL freight orders over $99
Overview
This KOHLER® Rite-Temp pressure-balancing valve works behind the scenes to prevent scalding and thermal shock for optimal comfort. Additionally, the unit features a diaphragm design that virtually eliminates freeze-ups from contamination and water debris. When paired with compatible trim, this valve delivers a high-temperature limit stop and an optimal comfort zone, so you can set a maximum high and then find and maintain your desired water temperature
1/2" pressure-balancing valve with push-button diverter and screwdriver stops
Features
- Rite-Temp® pressure-balancing diaphragm design
- Pressure-balancing mechanism of one-piece diaphragm cartridge design for ease of maintenance
- Mixing valve cycles from "cold" to "hot"
- Integral diverter mechanism
- High-temperature limit setting for added safety
- Available with or without screwdriver stops
- Designed for showerhead and handshower applications
Specifications
Product Specifications
| CEC | Yes |
|---|---|
| GTIN | 00650531867001 |
| Finish | Not Applicable |
| Shipping | L:7"x W:7"x H:6.5" 4.53 lbs. |
| Collection | Rite-Temp |
| Product Type | Pressure Balancing Valve |
| Stock Status | in_stock |
| Product Style | Transitional |
| Asme Standards | ASME A112.18.1/CSA B125.1 |
| Flow Rate (GPM) | 5.0 gal/min |
| Product Warranty | KOHLER® Faucet Lifetime Limited Warranty |
| Introduction Date | 4/16/2010 |
| Online Product ID | 546464 |
| Freight Policy Type | 1 |
| Release For Shipment | 2010-04-16T00:00:00Z |
Dimensions
| Height | 15.813" |
|---|---|
| Length | 2.75" |
| Weight | 4.534 |
| Overall Height Inches | 15-13/16" |
| Overall Length Inches | 2-3/4" |
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
Other Documents
Replacement Parts
Genuine Kohler replacement parts compatible with Item #11748-KS-NA.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Backing Plate | K-1095944 | $4.30 | |
 | Collar | K-79478 | $11.20 | |
| — | Diverter For Pressure Balance Valve | 1081410 | — | |
 | Diverter Stem, Top | K-1081404 | $27.45 | |
 | E-Ring | K-50715 | $5.20 | |
 | Kohler Genuine Parts Assy, Adjustment Collar | K-75740 | $7.25 | |
 | Kohler Genuine Parts Diverter Stem, Bottom | K-1081405 | $3.70 | |
 | Kohler Genuine Parts Pbu/cap Service KIT | K-GP876851 | $106.35 | |
 | Kohler Genuine Parts Screw, .250-20 X .50, Fillister | K-21980 | $2.90 | |
 | Kohler Genuine Parts Screw, 6-32 X .38, Countersunk | K-1081408 | $4.65 | |
 | O-Ring | K-73933 | $4.90 | |
 | O-Ring | K-1081406 | $2.50 | |
 | O-Ring | K-1102227 | $2.35 | |
 | O-Ring | K-1103069 | $2.85 | |
 | O-Ring | K-1107155 | $2.60 | |
 | O-Ring | K-1131910 | $2.60 | |
 | O-Ring | K-77585 | $2.80 | |
 | O-Ring | K-29296 | $3.00 | |
 | O-Ring, Seals | K-1149594 | $2.45 | |
 | Rite-Temp Pressure-Balancing Mixer Cap | K-GP77759 | $44.50 | |
 | Rite-Temp Pressure-Balancing Unit Cartridge | K-GP800820 | $55.75 | |
 | Sleeve, Diverter | K-1081403 | $71.80 | |
 | Spring | K-20494 | $2.30 | |
 | Valve Stop Assembly | K-1083638 | $28.30 | |
| — | — | GP500520 | — | |
