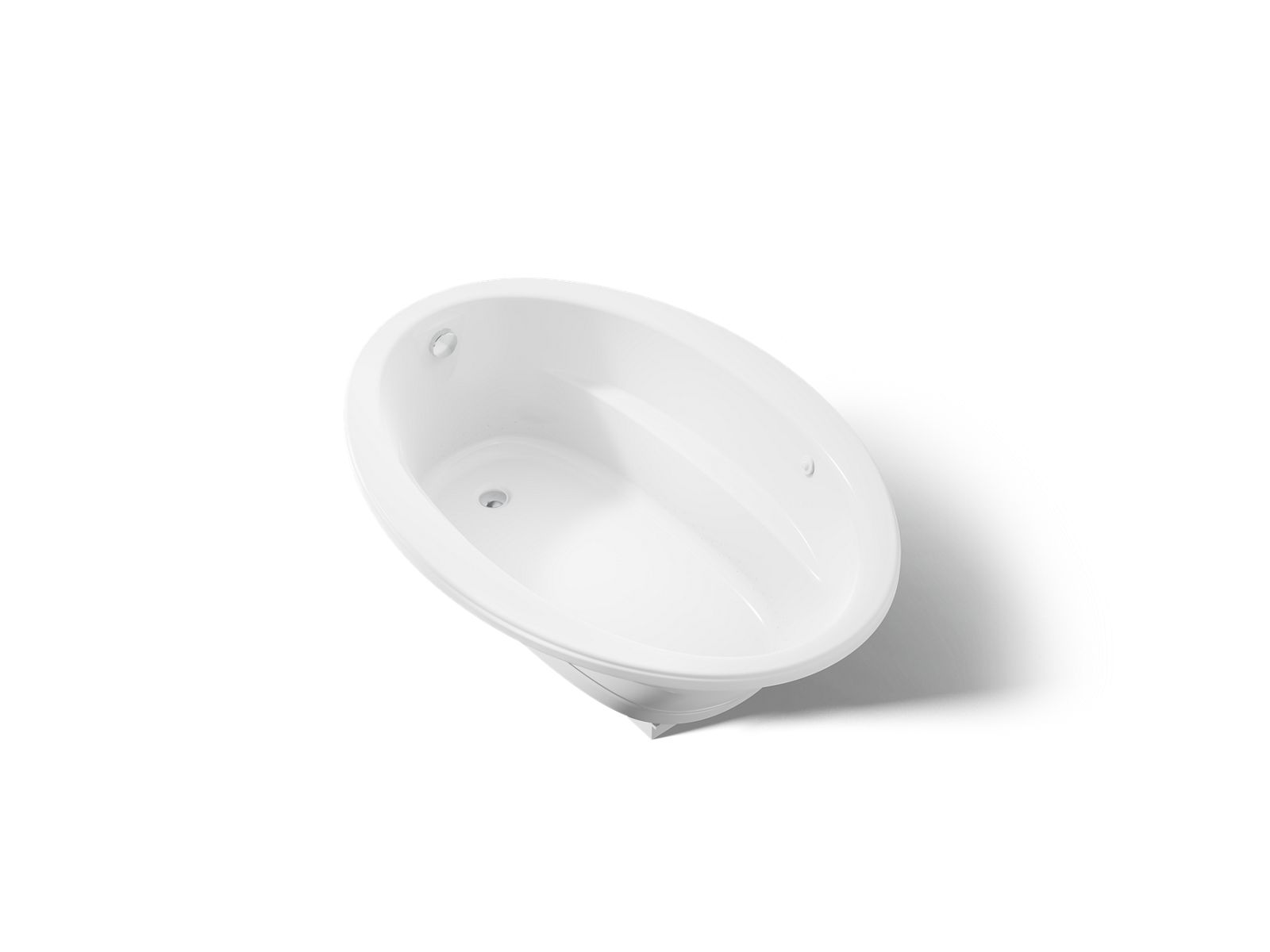

Kohler Sunward 60″ x 42″ Drop-In Whirlpool Bath in White
Item #: 1162-S1-0
UPC: 885612121226
Free Shipping on LTL freight orders over $99
Overview
Surround yourself with the comfortable contours and hydromassage features of the KOHLER® Sunward oval bath. This two-person 60" x 42" oval drop-in bath's built-in back support and armrests encourage you to fully sink in, while adjustable whirlpool jets relax away the day's tension. At Kohler, we make it our business to help you create the bathroom space of your dreams.
60" x 42" drop-in whirlpool bath
Features
- Single-speed whirlpool offers performance and value, with six fully adjustable jets
- Hydromassage flow and direction can be controlled at each jet
- Integral lumbar support and armrests offer extra comfort while bathing
- Textured bottom surface
Specifications
Product Specifications
| GTIN | 00885612121226 |
|---|---|
| Shape | Oval |
| Finish | White |
| Shipping | L:62.5"x W:44.5"x H:23.06" 128.75 lbs. |
| Oversized | Yes |
| Collection | Sunward |
| Product Type | Soaking Tub |
| Stock Status | in_stock |
| Product Style | Transitional |
| Asme Standards | ASME A112.19.7/CSA B45.10 |
| Product Warranty | KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty |
| Introduction Date | 2/7/2012 |
| Online Product ID | 545823 |
| Freight Policy Type | 4 |
| Release For Shipment | 2012-02-07T00:00:00Z |
| Csa Product Standards | CSA B45.5/IAPMO Z124 |
Dimensions
| Width | 42" |
|---|---|
| Height | 20" |
| Length | 60" |
| Weight | 128.750 |
| Overall Width Inches | 42" |
| Overall Height Inches | 20" |
| Overall Length Inches | 60" |
Materials
| Material | Acrylic |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #1162-S1-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Air Switch Assembly | 90105 | — | |
 | Assembly, Check Valve | K-91967 | $25.92 | |
| — | Bracket, Pump, 4.31 | 73508-E | — | |
| — | Clip, Pump | 95517 | — | |
 | Cover, 230V Pump | K-1015058 | $18.85 | |
| — | Cover, Suction | 96895 | — | |
 | Flange | K-67429 | $7.95 | |
 | Flange, Suction | K-96708 | $8.85 | |
| — | Flange, Switch | 65156 | — | |
| — | Flange, Switch | 91575 | — | |
 | Flex Tube, 3/8" | K-1146912 | $2.28 | |
 | Gasket, Tapered | K-65885 | $6.17 | |
| — | Gasket, Tapered | 67668 | — | |
 | Gasket, Tapered | K-65886 | $5.05 | |
 | Gasket, Tapered | K-1008241 | $3.39 | |
 | Impeller | K-1013755 | $31.95 | |
 | Jet Flange Tool | K-1011001 | $285.57 | |
 | Jet Flange, Retail | K-1008239 | $4.95 | |
 | Jet Nozzle | K-1013249 | $4.71 | |
 | Jet Nozzle Nut | K-1013250 | $4.54 | |
 | Kit, Manifold | K-1287280 | $193.80 | |
 | Kohler Genuine Parts 1 PVC Tube, Service KIT | K-93838 | $53.58 | |
 | Kohler Genuine Parts 1.25 PVC TUBE Service KIT | K-93839 | $264.57 | |
 | Kohler Genuine Parts 1/2 PVC TUBE Service KIT | K-93836 | $46.16 | |
 | Kohler Genuine Parts AIR Pressure Switch | K-1010672 | $40.50 | |
 | Kohler Genuine Parts Bracket, Pump, 4.06 | K-73508-D | $486.95 | |
 | Kohler Genuine Parts Cover Assy, ITT PUMP | K-1010676 | $35.90 | |
 | Kohler Genuine Parts Cover, Suction - French Gold Brushed Black Pvd | K-65061-BKB | $158.15 | |
 | Kohler Genuine Parts Housing Assy, PVC JET | K-67889 | $23.40 | |
 | Kohler Genuine Parts Housing Assy, Suction | K-93685 | $30.40 | |
 | Kohler Genuine Parts JET Handle Assembly - Dune | K-1101695-NY | $12.87 | |
 | Kohler Genuine Parts JET Housing, Retail | K-1008238 | $20.09 | |
 | Kohler Genuine Parts JET TRIM KIT - White White | K-1015255-0 | $85.55 | |
 | Kohler Genuine Parts KIT, AIR Switch - White White | K-1147742-0 | $28.80 | |
 | Kohler Genuine Parts KIT, Manifold, 2 BARB | K-1330132 | $452.70 | |
 | Kohler Genuine Parts NUT, 1.5625-16UNR-2B | K-65157 | $7.45 | |
| — | Kohler Genuine Parts PUMP Assy, 230V, 50/60 HZ | K-1008235 | $1,100.46 | |
 | Kohler Genuine Parts Packet, Dc-111 LUBE | K-1045715-P | $3.40 | |
 | Kohler Genuine Parts Plug, Suction Cover - White White | K-65226-0 | $4.60 | |
 | Kohler Genuine Parts Removal Tool, DIR. BALL | K-30739 | $8.20 | |
 | Kohler Genuine Parts Screw, 10-24 X 3.25 - Vib Bright Bronze Brushed Black Pvd | K-65054-BKB | $8.25 | |
 | Kohler Genuine Parts Service KIT, 1 1/2 FLEX | K-94853 | $40.30 | |
 | Kohler Genuine Parts Shaft Seal, ITT PUMP | K-1010673 | $65.43 | |
 | Kohler Genuine Parts TRIM RING KIT - Brushed Black Pvd Brushed Black Pvd | K-88531-BKB | $254.10 | |
 | Kohler Genuine Parts TRIM RING KIT - French Gold Brushed Black Pvd | K-88529-BKB | $260.40 | |
 | Kohler Genuine Parts TRIM RING KIT - White White | K-88532-0 | $34.42 | |
 | Kohler Genuine Parts TRIM RING KIT - White White | K-88530-0 | $37.10 | |
 | Kohler Genuine Parts TRIM RING KIT, Large Orifice - White White | K-1011031-0 | $30.60 | |
 | Kohler Genuine Parts TRIM RING KIT, Large Orifice - White White | K-1011032-0 | $34.42 | |
 | Kohler Genuine Parts Tool, Suction Flange | K-1003065 | $462.04 | |
 | Kohler Genuine Parts Tube, 1/16 ID, 6 FT. LONG | K-1020609 | $3.87 | |
 | Kohler Genuine Parts Wrench, Flange Removal | K-1086350 | $200.43 | |
 | O-Ring | K-94821 | $2.30 | |
 | O-Ring | K-60980 | $2.30 | |
 | O-Ring | K-65451 | $2.30 | |
 | O-Ring, Itt Pump | K-1010675 | $3.31 | |
 | Pipe Plug-1" | K-67665 | $4.54 | |
 | Plug, 1.5" Pvc | K-73518 | $10.10 | |
 | Screw, Itt Pump | K-1010677 | $2.75 | |
 | Sterling Plumbing 25R Fitting Union TEE, 3/8 | 1145781 | $2.37 | |
 | Tee Assembly | K-1080775 | $21.06 | |
 | Tool, Jet Removal | K-1265445 | $11.20 | |
 | Union Assembly | K-1080774 | $10.10 | |
 | V-Jet Housing | K-1226809 | $10.55 | |
| — | — | 73508-B | — | |
| — | — | 92145 | — | |
| — | — | 92146 | — | |
| — | — | 93000 | — | |
| — | — | 93003 | — | |
| — | — | 73508-A | — | |
| — | — | 93766 | — | |
| — | — | 1010548 | — | |
| — | — | 93837 | — | |
| — | — | 1010571 | — | |
| — | — | 1015057 | — | |
| — | — | 73513 | — | |
| — | — | 95594 | — | |
| — | — | 1009763 | — | |
| — | — | 67594 | — | |
| — | — | 1005363 | — | |
| — | — | 73521 | — | |
| — | — | 73524 | — | |
| — | — | 73525 | — | |
| — | — | 60985 | — | |
| — | — | 73529 | — | |
| — | — | 60912 | — | |
| — | — | 60050 | — | |
| — | — | 73552 | — | |
| — | — | 73558 | — | |
| — | — | 73559 | — | |
| — | — | 73584 | — | |
| — | — | 1010029 | — | |
| — | — | 73508-C | — | |
