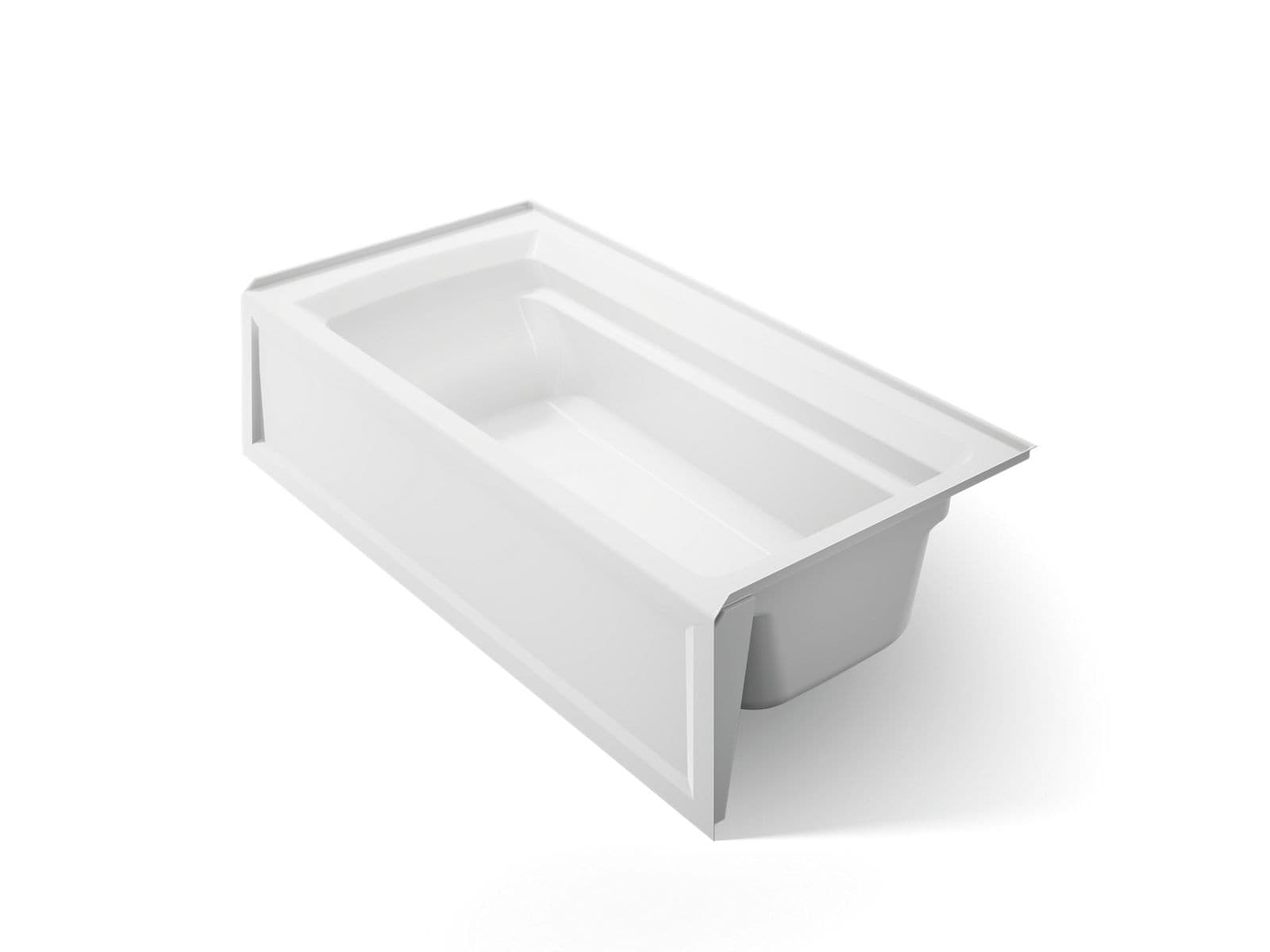

Kohler Archer 72″ x 36″ Alcove Bath - Right Drain in White
Item #: 1125-RA-0
UPC: 650531508454
Finish: White
Offered in 3 colors
Free Shipping on LTL freight orders over $99
Additional items needed for installation
Overview
Taking its design cues from traditional Craftsman furniture, the KOHLER® Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This 72" x 36" rectangular drop-in bath offers a low step-over height while allowing for deep, comfortable soaking. Lumbar arch gently support the natural curves of your body.
72" x 36" drop-in bath
Features
- Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
- Generous length provides a spacious bathing area
- Integral lumbar support
- Slotted overflow allows for deep soaking
- Textured bottom surface
- Coordinates with other products in the Archer collection
- 72" (1829 mm) x 36" (914 mm) x 19" (483 mm)
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| GTIN | 00650531508454 |
| Shape | Rectangle |
| Finish | White |
| Shipping | L:74.78"x W:38.84"x H:22.44" 179 lbs. |
| Oversized | Yes |
| Collection | Archer |
| Product Line | Archer |
| Product Type | Three Wall Alcove Soaking Tub |
| Stock Status | in_stock |
| Product Style | Traditional |
| Product Warranty | KOHLER® Plastic Baths and Receptors Lifetime Limited Warranty |
| Introduction Date | 2/6/2007 |
| Online Product ID | 544819 |
| Freight Policy Type | 4 |
| Release For Shipment | 2007-02-06T00:00:00Z |
| Csa Product Standards | CSA B45.5/IAPMO Z124 |
Dimensions
| Width | 36" |
|---|---|
| Height | 20.25" |
| Length | 72" |
| Weight | 179.000 |
| Overall Width Inches | 36" |
| Overall Height Inches | 19" |
| Overall Length Inches | 72" |
Materials
| Material | Acrylic |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
CAD Drawing - Front ViewDWG downloadCAD Drawing - Front View (DXF)DXF downloadCAD Drawing - Plan ViewDWG downloadCAD Drawing - Plan View (DXF)DXF downloadCAD Drawing - Side ViewDWG downloadCAD Drawing - Side View (DXF)DXF downloadDWG Front ViewDWG downloadDWG Plan ViewDWG downloadDWG Side ViewDWG downloadDXF Front ViewDXF downloadDXF Plan ViewDXF downloadDXF Side ViewDXF download
Other Documents
3D DWG SymbolDWG download3D DXF SymbolDXF download3D Model (3DS)3DS download3D Model (3DS)3DS download3D Model (DWG)DWG download3D Model (DXF)DXF download3D Model (OBJ)OBJ download3D Model (Sketchup)SKP downloadRevit Family (RFA)RFA downloadSketchUp Model (SKP)SKP downloadParts DiagramSVG downloadRevit/BIM ModelZIP download
Replacement Parts
Genuine Kohler replacement parts compatible with Item #1125-RA-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Assembly, Overflow | K-1069647 | $80.50 | |
 | Cartridge Assembly for Drain | K-1068204 | $10.65 | |
 | Drain Elbow | K-1069646 | $3.20 | |
 | Gasket | K-1068203 | $2.45 | |
 | Gasket | K-1064431 | $13.60 | |
 | Hex Wrench | K-1070940 | $2.35 | |
 | Kohler Genuine Parts Assembly, Cover - Vibrant Brushed Moderne Brass French Gold | K-1068525-AF | $80.40 | |
 | Kohler Genuine Parts PVC TEE - 1 1/2 SCH. 40 | K-1052481 | $6.17 | |
 | Kohler Genuine Parts Stopper - Blackened Bronze Blackened Bronze | K-1068202-2BL | $74.95 | |
 | Nut | K-1044609 | $3.09 | |
 | Plate, Mounting | K-1065165 | $10.75 | |
 | Screw 8-32 X 1.13 | K-43165 | $4.70 | |
 | Seal | K-1044607 | $2.30 | |
 | Seal | K-1070521 | $2.35 | |
 | Socket Joint | K-1044608 | $2.75 | |
| — | — | 1067596 | — | |
| — | — | 1068201 | — | |
