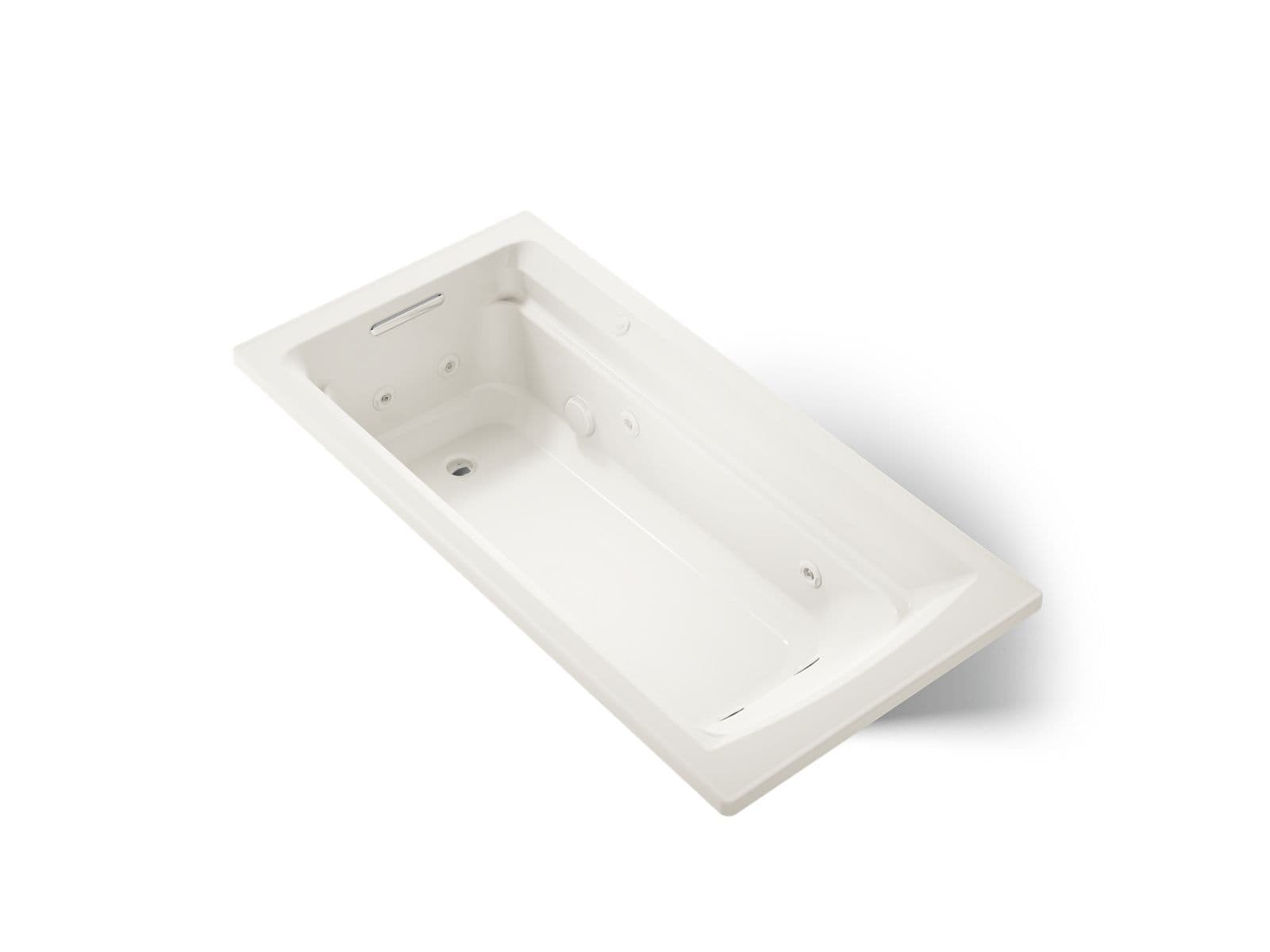

Kohler Archer 72″ x 36″ Drop-In Whirlpool Bath - Built-In Heater in Biscuit
Item #: 1124-H-96
UPC: 650531520920
Finish: Biscuit
Offered in 2 colors
Free Shipping on LTL freight orders over $99
Additional items needed for installation
Overview
Taking its design cues from traditional Craftsman furniture, the KOHLER® Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This 72" x 36" rectangular drop-in bath offers a low step-over height while allowing for deep, comfortable soaking. Whirlpool jets relax away the day's tension.
72" x 36" drop-in whirlpool bath
Features
- Single-speed whirlpool offers performance and value with 8 fully adjustable jets
- Hydromassage flow and direction can be controlled at each jet
- Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
- Generous length provides a spacious bathing area
- Integral lumbar support
- Slotted overflow allows for deep soaking
- Textured bottom surface
- Coordinates with other products in the Archer collection
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| GTIN | 00650531520920 |
| Shape | Rectangle |
| Finish | Biscuit |
| Shipping | L:74.78"x W:38.84"x H:22.44" 145 lbs. |
| Oversized | Yes |
| Collection | Archer |
| Product Line | Archer |
| Product Type | Drop In Whirlpool Bathtub |
| Stock Status | in_stock |
| Product Style | Traditional |
| Asme Standards | ASME A112.19.7/CSA B45.10 |
| Product Warranty | KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty |
| Introduction Date | 2/6/2007 |
| Online Product ID | 544538 |
| Freight Policy Type | 4 |
| Release For Shipment | 2007-02-06T00:00:00Z |
| Csa Product Standards | CSA B45.5/IAPMO Z124 |
Dimensions
| Width | 36" |
|---|---|
| Height | 19" |
| Length | 72" |
| Weight | 145.000 |
| Overall Width Inches | 36" |
| Overall Height Inches | 19" |
| Overall Length Inches | 72" |
Materials
| Material | Acrylic |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Other Documents
3D DWG SymbolDWG download3D DXF SymbolDXF download3D Model (3DS)3DS download3D Model (3DS)3DS download3D Model (DWG)DWG download3D Model (DXF)DXF download3D Model (OBJ)OBJ download3D Model (OBJ)OBJ download3D Model (Sketchup)SKP downloadRevit Family (RFA)RFA downloadSketchUp Model (SKP)SKP downloadParts DiagramSVG downloadParts DiagramSVG downloadRevit/BIM ModelRFA downloadOwner's ManualPDF download
Replacement Parts
Genuine Kohler replacement parts compatible with Item #1124-H-96.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Air Switch Assembly | 90105 | — | |
 | Assembly, Check Valve | K-91967 | $25.92 | |
 | Assembly, Overflow | K-1069647 | $80.50 | |
 | Cartridge Assembly for Drain | K-1068204 | $10.65 | |
| — | Cover, Suction | 96895 | — | |
 | Drain Elbow | K-1069646 | $3.20 | |
 | Flange | K-67429 | $7.95 | |
 | Flange, Suction | K-96708 | $8.85 | |
| — | Flange, Switch | 65156 | — | |
| — | Flange, Switch | 91575 | — | |
 | Flex Tube, 3/8" | K-1146912 | $2.28 | |
 | Gasket | K-1068203 | $2.45 | |
 | Gasket | K-1064431 | $13.60 | |
 | Gasket, Tapered | K-1008241 | $3.39 | |
 | Gasket, Tapered | K-65885 | $6.17 | |
 | Gasket, Tapered | K-65886 | $5.05 | |
| — | Gasket, Tapered | 67668 | — | |
 | Hex Wrench | K-1070940 | $2.35 | |
 | Jet Flange Tool | K-1011001 | $285.57 | |
 | Jet Flange, Retail | K-1008239 | $4.95 | |
 | Jet Nozzle | K-1013249 | $4.71 | |
 | Jet Nozzle Nut | K-1013250 | $4.54 | |
 | Kit, Manifold | K-1287280 | $193.80 | |
 | Kohler Genuine Parts 1 PVC Tube, Service KIT | K-93838 | $53.58 | |
 | Kohler Genuine Parts 1.25 PVC TUBE Service KIT | K-93839 | $264.57 | |
 | Kohler Genuine Parts 1/2 PVC TUBE Service KIT | K-93836 | $46.16 | |
 | Kohler Genuine Parts Assembly, Cover - Vibrant Brushed Moderne Brass French Gold | K-1068525-AF | $80.40 | |
 | Kohler Genuine Parts Cover, Suction - French Gold Brushed Black Pvd | K-65061-BKB | $158.15 | |
 | Kohler Genuine Parts Housing Assy, PVC JET | K-67889 | $23.40 | |
 | Kohler Genuine Parts Housing Assy, Suction | K-93685 | $30.40 | |
 | Kohler Genuine Parts JET Handle Assembly - Dune | K-1101695-NY | $12.87 | |
 | Kohler Genuine Parts JET Housing, Retail | K-1008238 | $20.09 | |
 | Kohler Genuine Parts JET TRIM KIT - Biscuit Biscuit | K-1015255-96 | $86.85 | |
 | Kohler Genuine Parts KIT, AIR Switch - Biscuit Biscuit | K-1147742-96 | $24.75 | |
 | Kohler Genuine Parts KIT, Manifold, 2 BARB | K-1330132 | $452.70 | |
 | Kohler Genuine Parts NUT, 1.5625-16UNR-2B | K-65157 | $7.45 | |
 | Kohler Genuine Parts PVC TEE - 1 1/2 SCH. 40 | K-1052481 | $6.17 | |
 | Kohler Genuine Parts Packet, Dc-111 LUBE | K-1045715-P | $3.40 | |
 | Kohler Genuine Parts Plug, Suction Cover - Biscuit Biscuit | K-65226-96 | $4.38 | |
 | Kohler Genuine Parts Removal Tool, DIR. BALL | K-30739 | $8.20 | |
 | Kohler Genuine Parts Screw, 10-24 X 3.25 - Vib Bright Bronze Brushed Black Pvd | K-65054-BKB | $8.25 | |
 | Kohler Genuine Parts Service KIT, 1 1/2 FLEX | K-94853 | $40.30 | |
 | Kohler Genuine Parts Stopper - Blackened Bronze Blackened Bronze | K-1068202-2BL | $74.95 | |
 | Kohler Genuine Parts TRIM RING KIT - Biscuit Biscuit | K-88532-96 | $34.62 | |
 | Kohler Genuine Parts TRIM RING KIT - Biscuit Biscuit | K-88530-96 | $41.10 | |
 | Kohler Genuine Parts TRIM RING KIT - Brushed Black Pvd Brushed Black Pvd | K-88531-BKB | $254.10 | |
 | Kohler Genuine Parts TRIM RING KIT - French Gold Brushed Black Pvd | K-88529-BKB | $260.40 | |
 | Kohler Genuine Parts TRIM RING KIT, Large Orifice - Biscuit Biscuit | K-1011031-96 | $44.64 | |
 | Kohler Genuine Parts TRIM RING KIT, Large Orifice - Biscuit Biscuit | K-1011032-96 | $37.93 | |
 | Kohler Genuine Parts Tool, Suction Flange | K-1003065 | $462.04 | |
 | Kohler Genuine Parts Tube, 1/16 ID, 6 FT. LONG | K-1020609 | $3.87 | |
 | Kohler Genuine Parts Wrench, Flange Removal | K-1086350 | $200.43 | |
 | Nut | K-1044609 | $3.09 | |
 | O-Ring | K-65451 | $2.30 | |
 | Pipe Plug-1" | K-67665 | $4.54 | |
 | Plate, Mounting | K-1065165 | $10.75 | |
 | Plug, 1.5" Pvc | K-73518 | $10.10 | |
 | Screw 8-32 X 1.13 | K-43165 | $4.70 | |
 | Seal | K-1070521 | $2.35 | |
 | Seal | K-1044607 | $2.30 | |
 | Socket Joint | K-1044608 | $2.75 | |
 | Sterling Plumbing 25R Fitting Union TEE, 3/8 | 1145781 | $2.37 | |
 | Tool, Jet Removal | K-1265445 | $11.20 | |
 | V-Jet Housing | K-1226809 | $10.55 | |
| — | — | 73521 | — | |
| — | — | 73513 | — | |
| — | — | 93837 | — | |
| — | — | 73584 | — | |
| — | — | 1068201 | — | |
| — | — | 1010571 | — | |
| — | — | 67594 | — | |
| — | — | 93766 | — | |
| — | — | 60050 | — | |
| — | — | 1067596 | — | |
