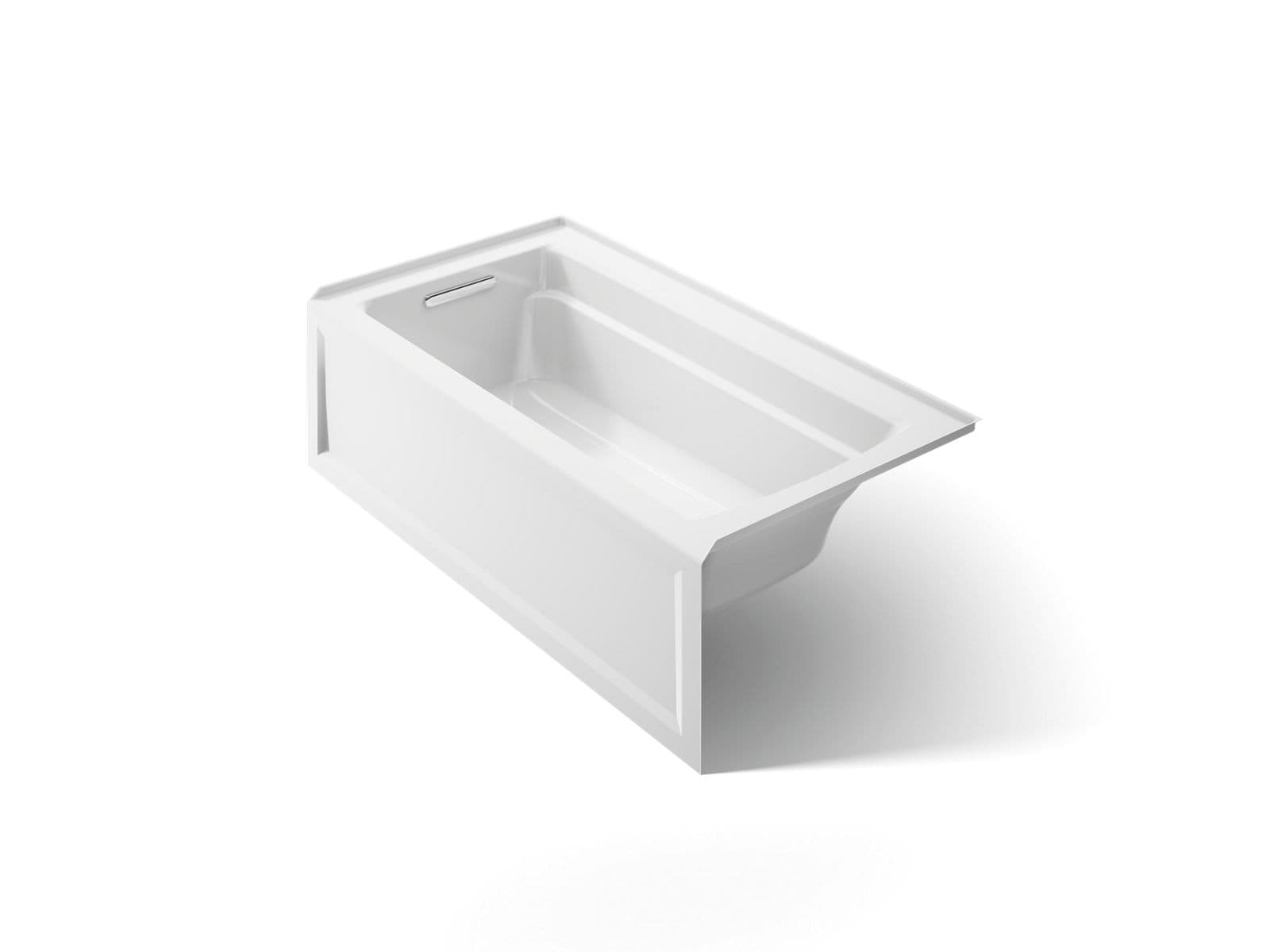

Kohler Archer 60″ x 32″ Alcove Bath - Left Drain in White
Item #: 1123-LA-0
UPC: 650531507945
Finish: White
Offered in 2 colors
Free Shipping on LTL freight orders over $99
Additional items needed for installation
Overview
Taking its design cues from traditional Craftsman furniture, the KOHLER® Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This 60" x 32" rectangular alcove bath offers a low step-over height while allowing for deep, comfortable soaking. A lumbar arch gently supports the natural curves of your body.
60" x 32" alcove bath, left drain
Features
- Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
- Integral lumbar support
- Slotted overflow allows for deep soaking
- Integral apron
- Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
- Textured bottom surface
- Coordinates with other products in the Archer collection
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| GTIN | 00650531507945 |
| Shape | Rectangle |
| Finish | White |
| Shipping | L:62.66"x W:35.31"x H:22.19" 78 lbs. |
| Oversized | Yes |
| Collection | Archer |
| Product Line | Archer |
| Product Type | Three Wall Alcove Soaking Tub |
| Stock Status | in_stock |
| Product Style | Traditional |
| Product Warranty | KOHLER® Plastic Baths and Receptors Lifetime Limited Warranty |
| Introduction Date | 2/6/2007 |
| Online Product ID | 544400 |
| Freight Policy Type | 4 |
| Release For Shipment | 2007-02-06T00:00:00Z |
| Csa Product Standards | CSA B45.5/IAPMO Z124 |
Dimensions
| Width | 32" |
|---|---|
| Height | 19" |
| Length | 60" |
| Weight | 78.000 |
| Overall Width Inches | 32" |
| Overall Height Inches | 19" |
| Overall Length Inches | 60" |
Materials
| Material | Acrylic |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #1123-LA-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Assembly, Overflow | K-1069647 | $80.50 | |
 | Cartridge Assembly for Drain | K-1068204 | $10.65 | |
 | Drain Elbow | K-1069646 | $3.20 | |
 | Gasket | K-1068203 | $2.45 | |
 | Gasket | K-1064431 | $13.60 | |
 | Hex Wrench | K-1070940 | $2.35 | |
 | Kohler Genuine Parts Assembly, Cover - Vibrant Brushed Moderne Brass French Gold | K-1068525-AF | $80.40 | |
 | Kohler Genuine Parts PVC TEE - 1 1/2 SCH. 40 | K-1052481 | $6.17 | |
 | Kohler Genuine Parts Stopper - Blackened Bronze Blackened Bronze | K-1068202-2BL | $74.95 | |
 | Nut | K-1044609 | $3.09 | |
 | Plate, Mounting | K-1065165 | $10.75 | |
 | Screw 8-32 X 1.13 | K-43165 | $4.70 | |
 | Seal | K-1044607 | $2.30 | |
 | Seal | K-1070521 | $2.35 | |
 | Socket Joint | K-1044608 | $2.75 | |
| — | — | 1067596 | — | |
| — | — | 1068201 | — | |
