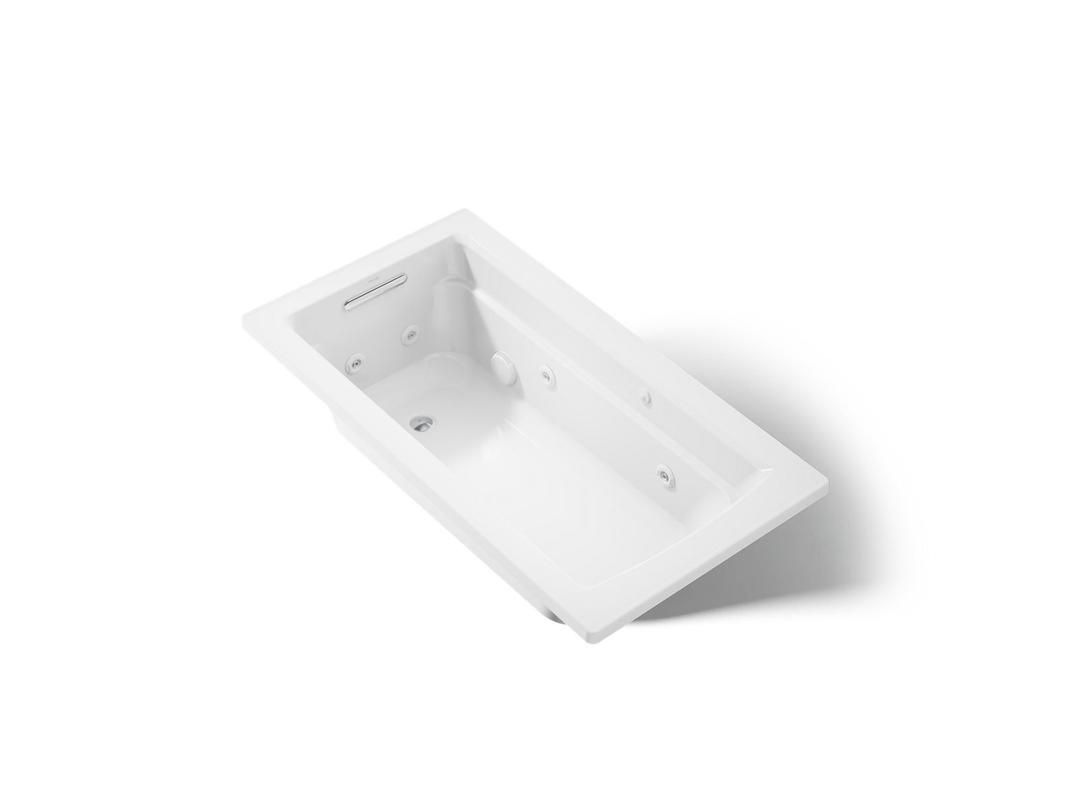

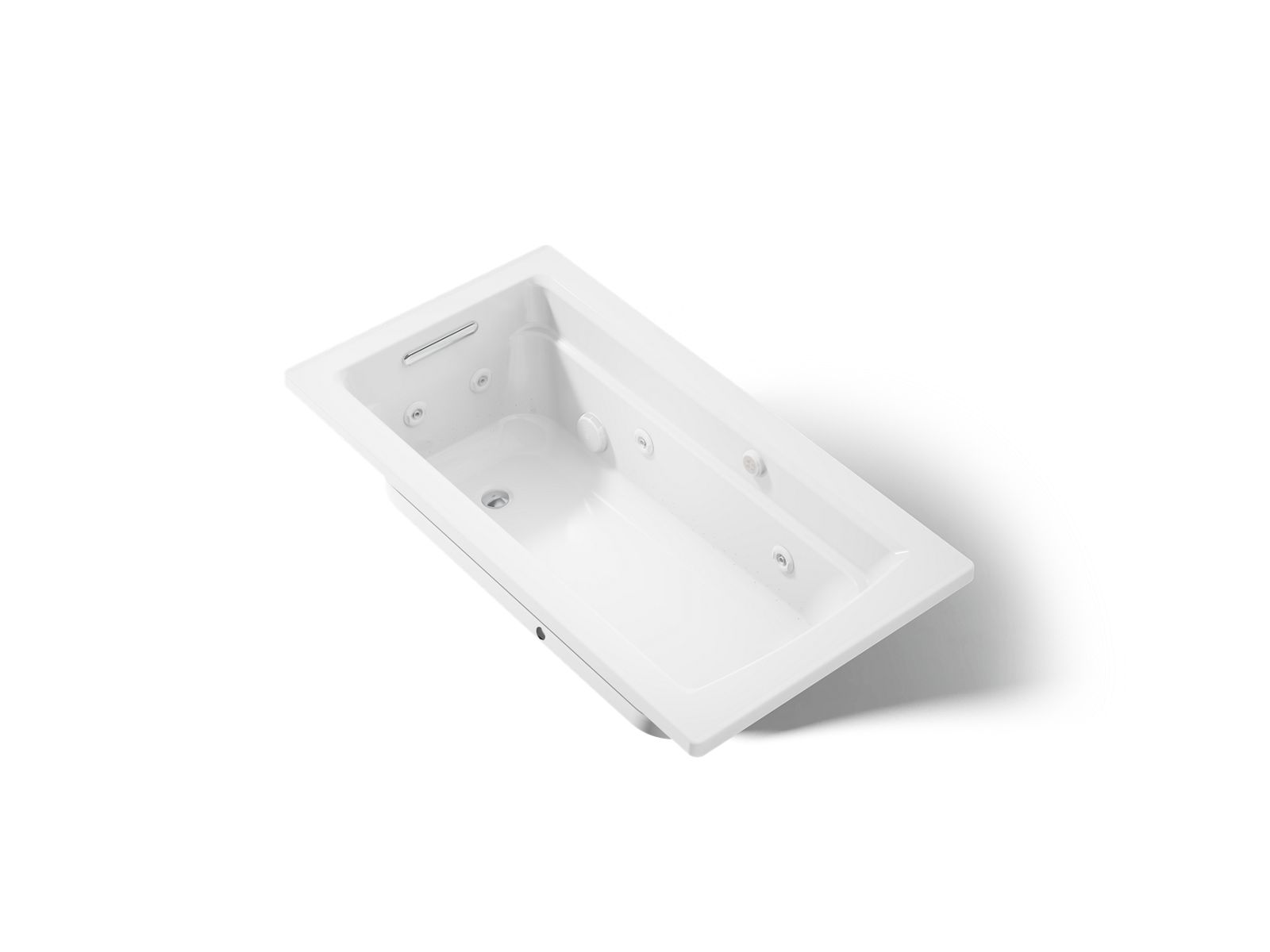

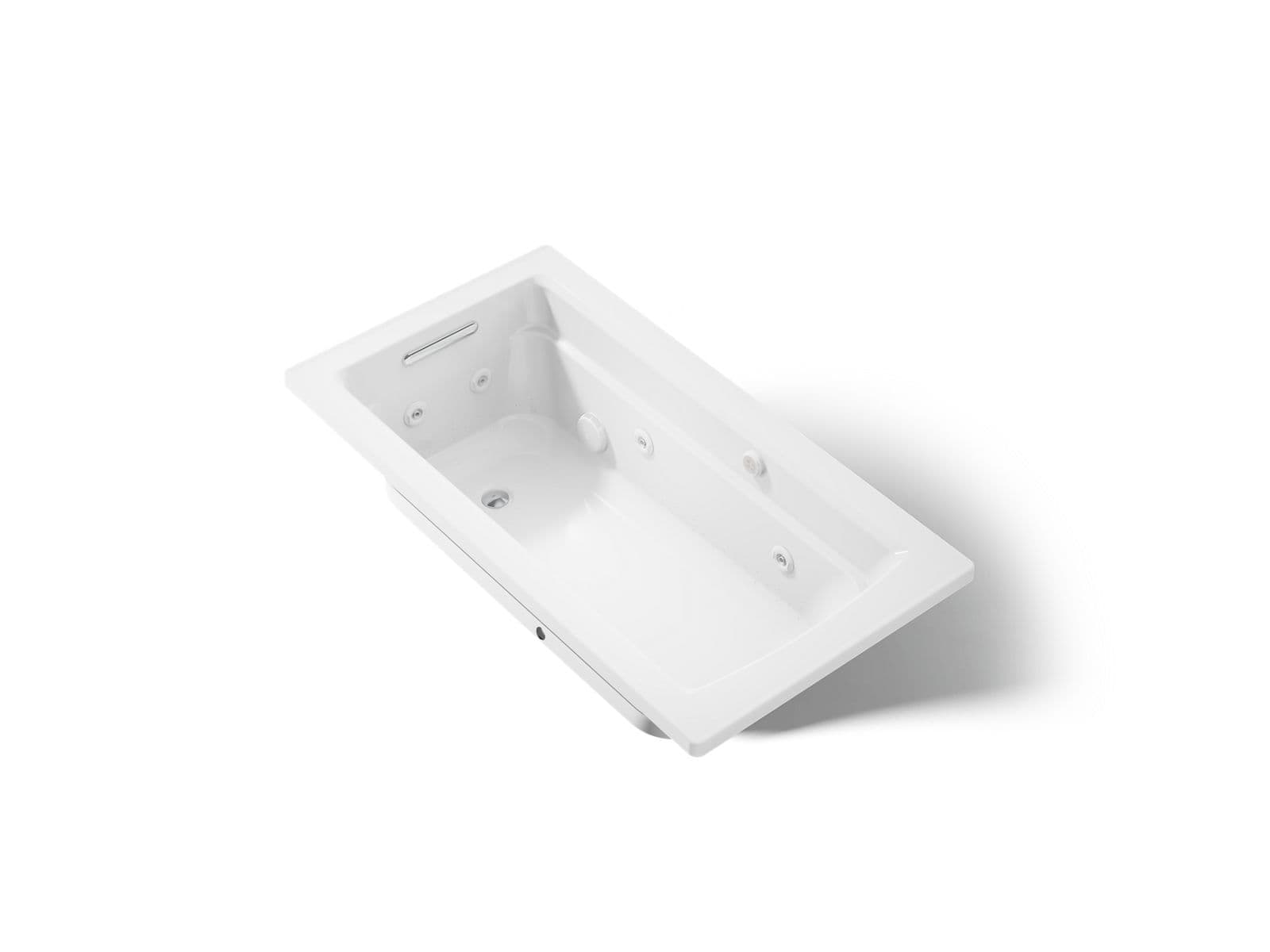

Kohler Archer 60″ x 32″ Drop-In Heated BubbleMassage™ Air Bath - Whirlpool in White
Item #: 1122-XHGH-0
UPC: 885612785442
Finish: White
Offered in 2 colors
Free Shipping on LTL freight orders over $99
Additional items needed for installation
Overview
Taking its design cues from traditional Craftsman furniture, the KOHLER® Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This 60" x 32" rectangular drop-in bath offers a low step-over height while allowing for deep, comfortable soaking. Whirlpool jets relax away the day's tension as armrests and a lumbar arch gently support the natural curves of your body.
60" x 32" drop-in whirlpool bath
Features
- Single-speed whirlpool offers performance and value with 8 fully adjustable jets
- Hydromassage flow and direction can be controlled at each jet
- Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
- Integral lumbar support
- Slotted overflow allows for deep soaking
- Textured bottom surface
- Coordinates with other products in the Archer collection
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| GTIN | 00885612785442 |
| Shape | Rectangle |
| Finish | White |
| Shipping | L:62.94"x W:34.94"x H:22.75" 130 lbs. |
| Oversized | Yes |
| Collection | Archer |
| Product Type | Drop In Air Bathtub |
| Stock Status | in_stock |
| Product Style | Traditional |
| Asme Standards | ASME A112.19.7/CSA B45.10 |
| Product Warranty | KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty |
| Introduction Date | 4/1/2019 |
| Online Product ID | 5956065 |
| Freight Policy Type | 4 |
| Release For Shipment | 2007-02-06T00:00:00Z |
| Csa Product Standards | CSA B45.5/IAPMO Z124 |
Dimensions
| Width | 32" |
|---|---|
| Height | 19" |
| Length | 60" |
| Weight | 130.000 |
| Ship Width | 62.9400 |
| Ship Height | 22.7500 |
| Ship Length | 34.9400 |
| Ship Weight | 130.0000 |
| Overall Width Inches | 32" |
| Overall Height Inches | 19" |
| Overall Length Inches | 60" |
Materials
| Material | Acrylic |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
CAD Drawing - Front ViewDWG downloadCAD Drawing - Front View (DXF)DXF downloadCAD Drawing - Plan ViewDWG downloadCAD Drawing - Plan View (DXF)DXF downloadCAD Drawing - Side ViewDWG downloadCAD Drawing - Side View (DXF)DXF downloadDWG Front ViewDWG downloadDWG Plan ViewDWG downloadDWG Side ViewDWG downloadDXF Front ViewDXF downloadDXF Plan ViewDXF downloadDXF Side ViewDXF download
Replacement Parts
Genuine Kohler replacement parts compatible with Item #1122-XHGH-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Assembly, Check Valve | K-91967 | $25.92 | |
| — | Assembly, Power Supply | 1198993 | — | |
 | BASK HEATER KIT | K-1197576 | $699.46 | |
| — | Cover, Suction | 96895 | — | |
 | Cover/Circuit Board Assembly | K-1036221 | $372.11 | |
| — | Decal, Bubblebath | 1032495 | — | |
 | Flange, Suction | K-96708 | $8.85 | |
 | Gasket, Interface | K-1020677 | $5.50 | |
 | Gasket, Tapered | K-65886 | $5.05 | |
 | Gasket, Tapered | K-1008241 | $3.39 | |
 | Jet Flange Tool | K-1011001 | $285.57 | |
 | Jet Flange, Retail | K-1008239 | $4.95 | |
 | Jet Nozzle | K-1013249 | $4.71 | |
 | Jet Nozzle Nut | K-1013250 | $4.54 | |
 | Kohler Genuine Parts Assy, Interface Heated Surface | K-1264000 | $175.88 | |
 | Kohler Genuine Parts Assy. Cable, Heated TUB | K-1195687 | $52.79 | |
 | Kohler Genuine Parts Cover, Suction - French Gold Brushed Black Pvd | K-65061-BKB | $158.15 | |
 | Kohler Genuine Parts Housing Assy, Suction | K-93685 | $30.40 | |
 | Kohler Genuine Parts JET Housing, Retail | K-1008238 | $20.09 | |
 | Kohler Genuine Parts JET TRIM KIT - White White | K-1015255-0 | $85.55 | |
 | Kohler Genuine Parts KIT, AIR Switch - White White | K-1147742-0 | $28.80 | |
 | Kohler Genuine Parts NUT, 1.5625-16UNR-2B | K-65157 | $7.45 | |
 | Kohler Genuine Parts Plug, Suction Cover - White White | K-65226-0 | $4.60 | |
 | Kohler Genuine Parts Screw, 10-24 X 3.25 - Vib Bright Bronze Brushed Black Pvd | K-65054-BKB | $8.25 | |
 | Kohler Genuine Parts TRIM Ring, Interface, CORE - White White | K-1013469-0 | $13.62 | |
 | Kohler Genuine Parts Tool, Suction Flange | K-1003065 | $462.04 | |
 | O-Ring | K-94110 | $2.50 | |
 | Pipe Plug-1" | K-67665 | $4.54 | |
 | Plug, 1.5" Pvc | K-73518 | $10.10 | |
| — | Screw 6-32 X .25 | 59588 | — | |
| — | — | 1013459-E | — | |
| — | — | 1015161 | — | |
| — | — | 60050 | — | |
| — | — | 1153862 | — | |
