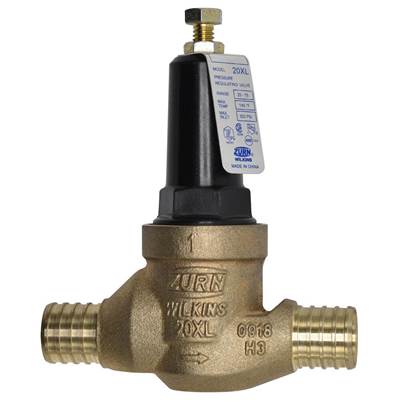

Zurn Industries 20XL Pressure Reducing Valve - 1″ - 25-75 PSI - Integral Crimp PEX - Lead Free in Rough Bronze
Item #: 1-20XLPEX
UPC: 612052300542
Overview
The 1'' 20XLPEX Pressure Reducing Valve with integral male crimp PEX (ASTM F1807) connections is designed to reduce high inlet pressure to lower outlet pressure on potable water lines. It’s short lay length and compact design ensures ease of installation in residential applications from new construction to replacement. The 20XL's balanced stem design enables the PRV to react in a smooth and responsive manner when changes to system flow occur. At the same time, it protects from inlet pressure changes. The composite cartridge and bell housing deliver superior strength and corrosion resistance. The stainless steel strainer screen catches debris, while the cartridge ensures easy repairs. The 20XL Pressure Reducing Valve is compact and versatile, making it an ideal solution for any application.
Features
- Compact design and short lay length ensures ease of installation in any application from new construction to replacement
- Versatile crimp PEX connection option minimizes installation time and the potential for leaks
- Cartridge-loaded design simplifies repairs
- Quality integral stainless steel strainer screen holds up over time
- Highly durable and UV resistant, threaded bell resists corrosion and provides easy access to cartridge internals
- ASSE Listed 1003
- IAPMO Listed
- CSA Certified B356
- Lead free
- Compact dimensions with short lay length to fit applications with tight spaces
Specifications
Product Specifications
| Size | 1'' |
|---|---|
| Finish | Rough Bronze |
| Shipping | L:2.63"x W:5.5"x H:5.5" 0.99 lbs. |
| Valve Style | In-line (Backflow, PRVs, TMVs, RVs, etc.) |
| Max Pressure | 300 |
| Product Type | Plumbing Part |
| Mounting Type | Horizontal,Vertical |
| Pressure Type | Adjustable Pressure |
| End Connection | Crimp PEX |
| Fits Pipe Size | 1 |
| Fitting Size 2 | 1 |
| Prop65 Warning | Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Temp Range Low | 33 |
| Temp Range High | 140 |
| End Connection 2 | Crimp PEX |
| Online Product ID | 6724721 |
| Fitting Size (In.) | 1 |
| Pressure Range Low | 25 |
| Pressure Range High | 75 |
| Minimum Order Quantity | 1 |
| Reduced Pressure Range | 25-75 psi (standard) |
Dimensions
| Width | 1.75" |
|---|---|
| Height | 4.38" |
| Length | 4.25" |
| Weight | 0.87 lbs. |
| Ship Width | 2.7500 |
| Ship Height | 5.6300 |
| Ship Length | 5.5000 |
| Ship Weight | 0.9900 |
Materials
| Material | Bronze,Polymer |
|---|---|
| Valve Body Material | Low Lead Cast Bronze |
