Kohler

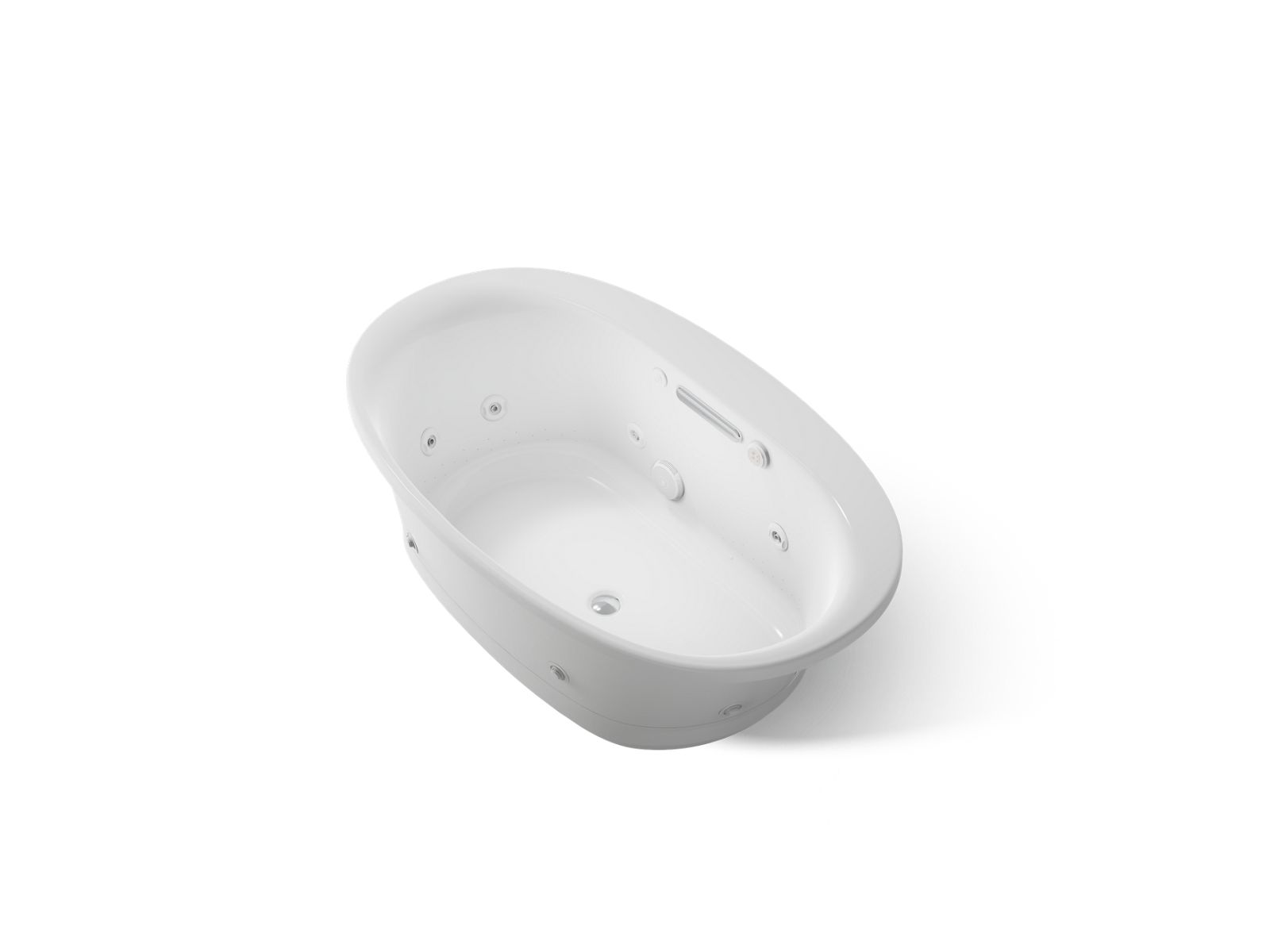

Kohler Underscore 59-3/4'' x 35-3/4'' drop-in Heated BubbleMassageE air bath with whirlpool - Ice Grey

Name: Kohler Underscore 59-3/4'' x 35-3/4'' drop-in Heated BubbleMassageE air bath with whirlpool - Ice Grey
Brand: Kohler
SKU: 5714-XHGH-95
Price: 6390.59 USD
Availability: OutOfStock

Item #: 5714-XHGH-95UPC: 885612857330Finish: Ice Grey

$7,518.35 MSRP

Offered in 4 finishes

Selected: Ice Grey

PROP65

Description

With clean, smooth lines, the KOHLER® Underscore Heated BubbleMassage™ 59-3/4" x 35-3/4" rectangular drop-in air bath and whirlpool is a welcome retreat to soak away the day’s tension and center your mind. Lie back and melt in the deep bath as strategically-placed airjets release thousands of bubbles to massage your body at the level of intensity you prefer, while another eight fully-adjustable jets deliver a powerful hydromassage to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger…

Features

122 airjets release thousands of heated bubbles that surround, support, and massage the body
Variable-speed blower lets you adjust massage intensity to 18 levels
Eight Proflex® hydromassage jets can be individually adjusted for water flow and direction
Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Automatic and manual purge cycles remove residual water from air channels after use
60-minute automatic shutoff timer
Built-in heater
Slotted overflow allows for deep soaking
Oval basin creates a spacious bathing experience
Integral lumbar support
Keypad control
Textured bottom surface

Materials

Acrylic

Specifications

UOMeach

UPC885612857330

GTIN00885612857330

ShapeOval

Width35.625"

FinishIce Grey

Height21"

Length59.687"

Weight69.000

MaterialAcrylic

ShippingL:63.5"x W:38.5"x H:23" 69 lbs.

OversizedYes

backorderfalse

CollectionUnderscore

Made in USAYes

Product TypeWhirlpool Bathtub

review_count0

stock_statusin_stock

variant_skus5714-XHGH-0,5714-XHGH-7,5714-XHGH-95,5714-XHGH-96

Product StyleContemporary

special_orderfalse

Asme StandardsASME A112.19.7/CSA B45.10

Product WarrantyKOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty

Country of OriginUS

Introduction Date1/16/2020

Online Product ID7624879

review_rating_range5

Overall Width Inches35-5/8"

release_for_shipment2020-01-16T00:00:00Z

Csa Product StandardsCSA B45.5/IAPMO Z124

Overall Height Inches21"

Overall Length Inches59-11/16"

Documents

3D DWG Symbol 3D DXF Symbol 3D Model (3DS)3D Model (OBJ)Revit Family (RFA)SketchUp Model (SKP)DWG Front View DWG Plan View DWG Side View DXF Front View DXF Plan View DXF Side View Installation Guide Installation Guide Parts Diagram Technical Specifications

gerhardsstore.comItem #: 5714-XHGH-95

Kohler Underscore 59-3/4'' x 35-3/4'' drop-in Heated BubbleMassageE air bath with whirlpool - Ice Grey by Kohler

Hover to zoom

Kohler Underscore 59-3/4″ x 35-3/4″ drop-in Heated BubbleMassageE air bath with whirlpool - Ice Grey

Item #: 5714-XHGH-95

UPC: 885612857330

Finish: Ice Grey

Offered in 4 finishes

Selected: Ice Grey

Underscore® 59-3/4'' x 35-3/4'' drop-in Heated BubbleMassage™ air bath with whirlpool

Features

122 airjets release thousands of heated bubbles that surround, support, and massage the body
Variable-speed blower lets you adjust massage intensity to 18 levels
Eight Proflex® hydromassage jets can be individually adjusted for water flow and direction
Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Automatic and manual purge cycles remove residual water from air channels after use
60-minute automatic shutoff timer
Built-in heater
Slotted overflow allows for deep soaking
Oval basin creates a spacious bathing experience
Integral lumbar support
Keypad control
Textured bottom surface

Materials

Acrylic

Installation

Drop-in

Certifications & Compliance

PROP 65

Warranty	KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty\|KOHLER® Hydrotherapy Components Five-Year Limited Warranty
Country of Origin	US

Replacement Parts

	Part Number	Description	Price
	K-1539975	Kohler Genuine Parts Adapter Screen Nipple Service KIT	$149.80	View
	K-1366015	Kohler Genuine Parts Assembly NO Connnections,heated Conduit	$1,953.51	View
	K-1366016	Kohler Genuine Parts Assembly, Inlet Connection	$180.40	View
	K-1366017	Kohler Genuine Parts Assembly, Outlet Connection	$191.18	View
	K-1335464	Kohler Genuine Parts Assembly,water Injection	$342.99	View
—	1369986	—	—
