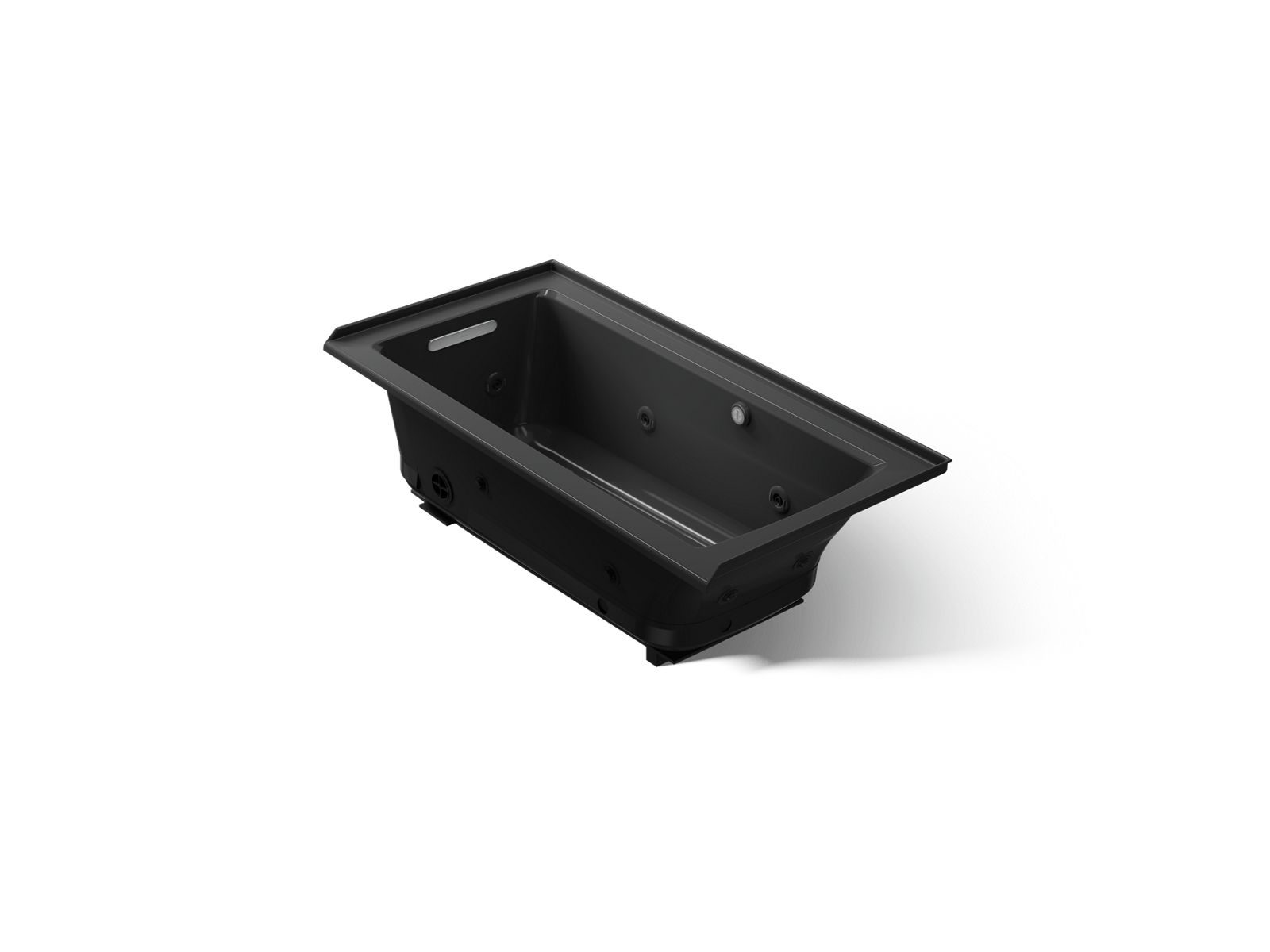

Kohler Archer 60'' x 30'' alcove Heated BubbleMassageE air bath and whirlpool, left drain - Black

Name: Kohler Archer 60'' x 30'' alcove Heated BubbleMassageE air bath and whirlpool, left drain - Black
Brand: Kohler
SKU: 1947-XHGHL-7
Price: 5891.01 USD
Availability: OutOfStock

Item #: 1947-XHGHL-7UPC: 885612785961Finish: Black

$6,930.60 MSRP

Offered in 4 finishes

Selected: Black

ADAPROP65TITLE24

Description

This KOHLER® Archer bath offers both a relaxing whirlpool hydromassage and a soothing Heated BubbleMassage™, with each experience controlled independently. Whirlpool jets relax away the day's tension as you surround your body in a cushion of heated massaging bubbles. With Heated BubbleMassage™ hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage. This 60" x 30" rectangular alcove bath has a low step-over height while allowing deep, comfortable soaking.

Features

118 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust Heated BubbleMassage™ massage intensity to 18 levels
Single-speed whirlpool revitalizes sore muscles
8 fully adjustable whirlpool jets allow users to customize hydromassage flow and direction at each jet
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Coordinates with other products in the Archer collection
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath

Materials

Acrylic

Specifications

ADAYes

UOMeach

UPC885612785961

GTIN00885612785961

ShapeRectangle

Width30"

FinishBlack

Height20.25"

Length60"

Weight125.000

MaterialAcrylic

ShippingL:62.66"x W:35.31"x H:22.19" 125 lbs.

OversizedYes

backorderfalse

CollectionArcher

Ship Width62.6600

Made in USAYes

Ship Height22.1900

Ship Length35.3100

Ship Weight125.0000

Product TypeThree Wall Alcove Air Whirlpool Combo

review_count0

stock_statusout_of_stock

variant_skus1947-XHGHL-0,1947-XHGHL-7,1947-XHGHL-95,1947-XHGHL-96

Product StyleTraditional

special_orderfalse

Asme StandardsASME A112.19.7/CSA B45.10

Product WarrantyKOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty

Country of OriginUS

Introduction Date4/1/2019

Online Product ID5956220

freight_policy_type4

review_rating_range5

Overall Width Inches30"

release_for_shipment2019-04-01T00:00:00Z

Csa Product StandardsCSA B45.5/IAPMO Z124

Overall Height Inches20-1/4"

Overall Length Inches60"

Documents

3D DWG Symbol 3D DXF Symbol 3D Model (3DS)3D Model (OBJ)Revit Family (RFA)SketchUp Model (SKP)DWG Front View DWG Plan View DWG Side View DXF Front View DXF Plan View DXF Side View Installation Guide Installation Guide Installation Guide Parts Diagram Parts Diagram Homeowners Guide Technical Specifications

gerhardsstore.comItem #: 1947-XHGHL-7

Kohler Archer 60'' x 30'' alcove Heated BubbleMassageE air bath and whirlpool, left drain - Black by Kohler

Hover to zoom

Kohler Archer 60″ x 30″ alcove Heated BubbleMassageE air bath and whirlpool, left drain - Black

Item #: 1947-XHGHL-7

UPC: 885612785961

Finish: Black

Offered in 4 finishes

Selected: Black

Archer® 60'' x 30'' alcove Heated BubbleMassage™ air bath and whirlpool, left drain

Features

118 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust Heated BubbleMassage™ massage intensity to 18 levels
Single-speed whirlpool revitalizes sore muscles
8 fully adjustable whirlpool jets allow users to customize hydromassage flow and direction at each jet
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Coordinates with other products in the Archer collection
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath

Materials

Acrylic

Installation

Alcove

Certifications & Compliance

ADA CompliantPROP 65Title 24

Warranty	KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty\|KOHLER® Hydrotherapy Components Five-Year Limited Warranty
Country of Origin	US

Replacement Parts

	Part Number	Description	Price
	K-91967	Assembly, Check Valve	$25.92	View
—	96895	Cover, Suction	—
	K-96708	Flange, Suction	$8.85	View
	K-1222738	Gasket, Heater	$2.30	View
	K-65886	Gasket, Tapered	$5.05	View
	K-1008241	Gasket, Tapered	$3.39	View
	K-1011679	Heater Gasket	$2.90	View
	K-1011001	Jet Flange Tool	$285.57	View
	K-1008239	Jet Flange, Retail	$4.95	View
	K-1013249	Jet Nozzle	$4.71	View
	K-1013250	Jet Nozzle Nut	$4.54	View
	K-65061-AF	Kohler Genuine Parts Cover, Suction - French Gold	from $106.95	Brushed Black Pvd — $158.15 Brushed Chrome — $163.50 French Gold — $111.95 Polished Chrome — $106.95 Polished Nickel — $195.90 Vibrant Brushed Bronze — $180.30 Vibrant Brushed Nickel — $162.27 Vibrant Finish — $195.90
	K-1404761	Kohler Genuine Parts Heater, In-line, 120V	$424.40	View
	K-1404760	Kohler Genuine Parts Heater, T-style, 120V	$414.58	View
	K-93685	Kohler Genuine Parts Housing Assy, Suction	$30.40	View
	K-1008238	Kohler Genuine Parts JET Housing, Retail	$20.09	View
	K-1015255-7	Kohler Genuine Parts JET TRIM KIT - Black Black	from $73.89	Almond — $76.24 Biscuit — $86.85 Black Black — $73.89 Ice Grey — $73.89 White — $85.55
	K-1147742-7	Kohler Genuine Parts KIT, AIR Switch - Black Black	from $24.75	Almond — $34.02 Biscuit — $24.75 Black Black — $41.40 Cashmere — $41.40 Dune — $42.90 White — $28.80
	K-65226-7	Kohler Genuine Parts Plug, Suction Cover - Black Black	from $4.10	Biscuit — $4.38 Black Black — $4.38 Desert Bloom — $4.38 Ice Grey — $4.38 Tender Grey — $4.38 Thunder Grey — $4.10 White — $4.60
	K-65054-BA	Kohler Genuine Parts Screw, 10-24 X 3.25 - Vib Bright Bronze	from $4.50	Brushed Black Pvd — $8.25 Polished Stainless — $7.63 Vib Bright Bronze — $5.60 Vib Bright Nickel — $7.29 Vibrant Bright French Gold — $4.50 Vibrant Finish — $8.15
	K-1003065	Kohler Genuine Parts Tool, Suction Flange	$462.04	View
	K-67665	Pipe Plug-1"	$4.54	View
	K-73518	Plug, 1.5" Pvc	$10.10	View
	K-1012916	Split Coupling	$20.52	View
—	1015161	—	—
—	60050	—	—
—	1222737	—	—
