Item #: 1947-L-96
UPC: 885612200068
Finish: Biscuit
Taking its design cues from traditional Craftsman furniture, the KOHLER® Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This 60" x 30" rectangular alcove bath offers a low step-over height while allowing deep, comfortable soaking. Whirlpool jets relax away the day's tension as a lumbar arch gently supports the natural curves of your body.

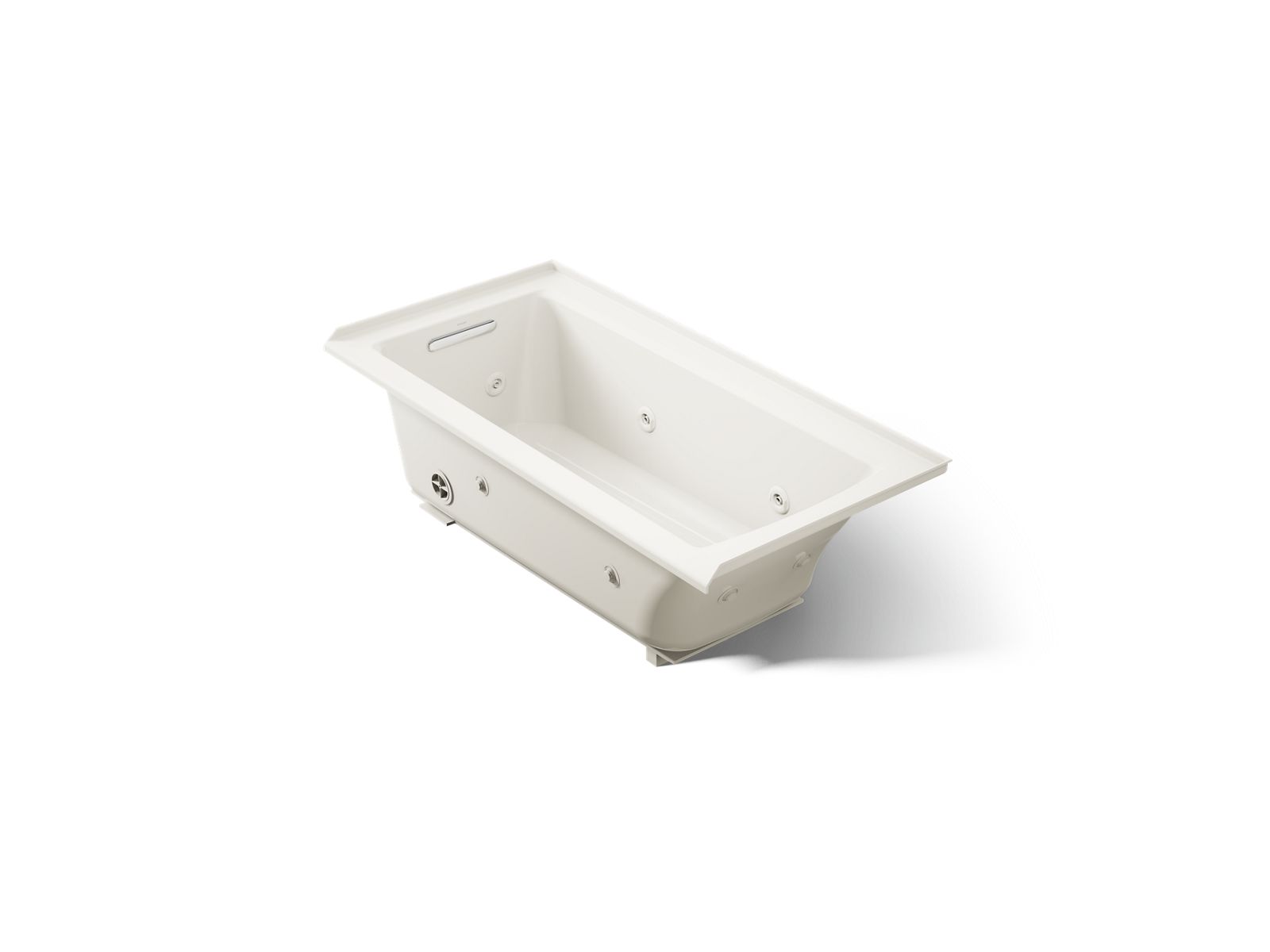

Archer® 60'' x 30'' alcove whirlpool bath, left drain
| Warranty | KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty |
|---|---|
| Country of Origin | US |
| Part Number | Description | Price | ||
|---|---|---|---|---|
| — | 90105 | Air Switch Assembly | — | |
| — | 73508-E | Bracket, Pump, 4.31 | — | |
| — | 95517 | Clip, Pump | — | |
 | K-1015058 | Cover, 230V Pump | $18.85 | View |
| — | 91575 | Flange, Switch | — | |
| — | 65156 | Flange, Switch | — | |
 | K-1013755 | Impeller | $31.95 | View |
 | K-1010672 | Kohler Genuine Parts AIR Pressure Switch | $40.50 | View |
 | K-73508-D | Kohler Genuine Parts Bracket, Pump, 4.06 | $486.95 | View |
 | K-1010676 | Kohler Genuine Parts Cover Assy, ITT PUMP | $35.90 | View |
 | K-65157 | Kohler Genuine Parts NUT, 1.5625-16UNR-2B | $7.45 | View |
| — | K-1008235 | Kohler Genuine Parts PUMP Assy, 230V, 50/60 HZ | $1,100.46 | View |
 | K-1010673 | Kohler Genuine Parts Shaft Seal, ITT PUMP | $65.43 | View |
 | K-1020609 | Kohler Genuine Parts Tube, 1/16 ID, 6 FT. LONG | $3.87 | View |
 | K-73515-A | Mount, Isolation | $3.65 | View |
 | K-60980 | O-Ring | $2.30 | View |
 | K-65451 | O-Ring | $2.30 | View |
 | K-94821 | O-Ring | $2.30 | View |
 | K-1010675 | O-Ring, Itt Pump | $3.31 | View |
 | K-1010677 | Screw, Itt Pump | $2.75 | View |
 | K-1080775 | Tee Assembly | $21.06 | View |
 | K-1080774 | Union Assembly | $10.10 | View |
| — | 93003 | — | — | |
| — | 95594 | — | — | |
| — | 1005363 | — | — | |
| — | 1008228 | — | — | |
| — | 1009763 | — | — | |
| — | 1010029 | — | — | |
| — | 1010548 | — | — | |
| — | 1010571 | — | — | |
| — | 1015057 | — | — | |
| — | 1219651 | — | — | |
| — | 60912 | — | — | |
| — | 60985 | — | — | |
| — | 73508-A | — | — | |
| — | 73508-B | — | — | |
| — | 73508-C | — | — | |
| — | 73524 | — | — | |
| — | 73525 | — | — | |
| — | 73529 | — | — | |
| — | 73552 | — | — | |
| — | 73558 | — | — | |
| — | 73559 | — | — | |
| — | 92145 | — | — | |
| — | 92146 | — | — | |
| — | 93000 | — | — |
| Part Number | Description | Price | ||
|---|---|---|---|---|
 | EC23732-NA | Kohler Tub & shower cleaner - Not Applicable | $17.00 | View |
