Kohler

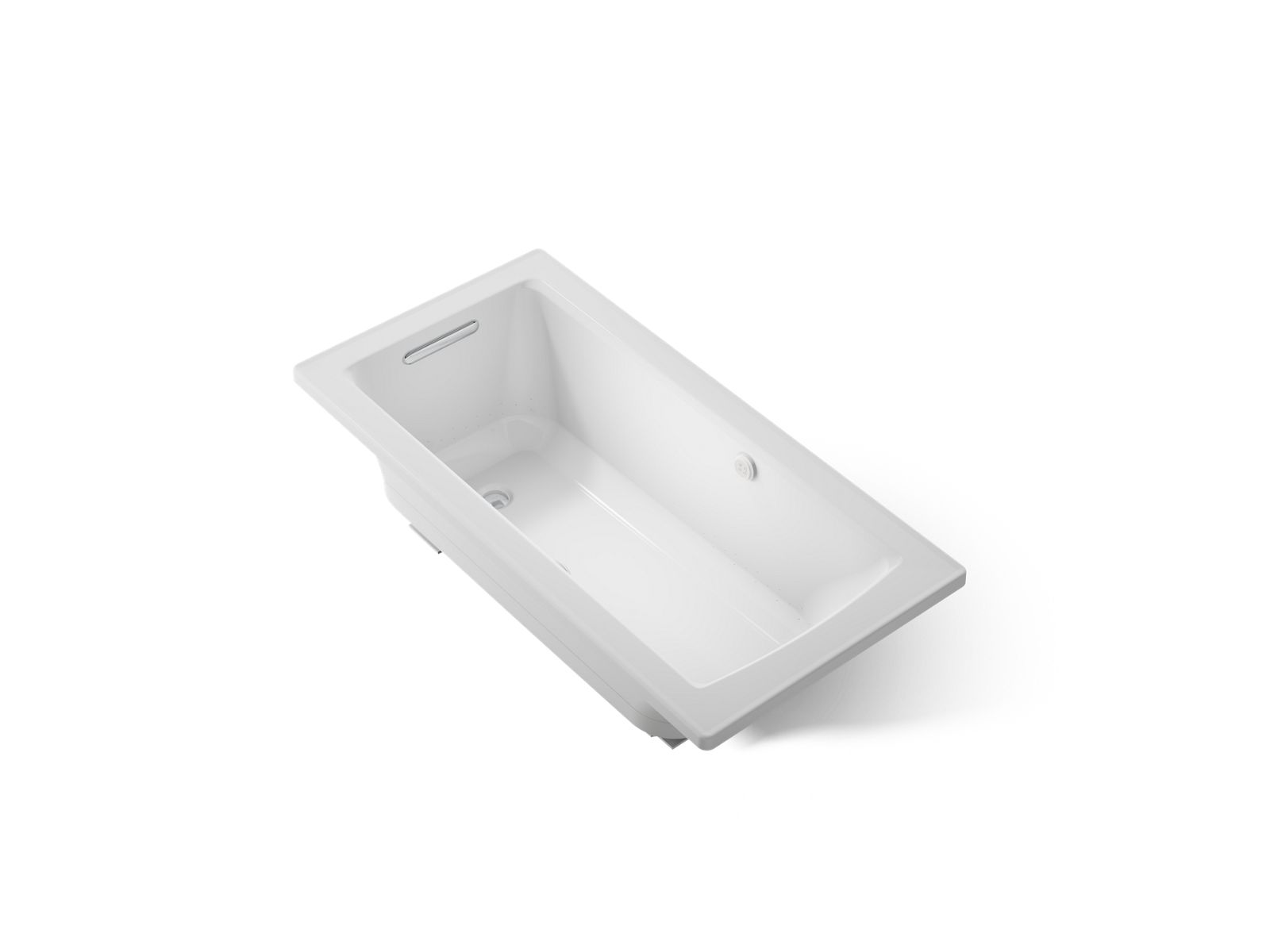

Kohler Archer 60'' x 30'' drop-in Heated BubbleMassageE air bath with Bask heated surface - Ice Grey

Name: Kohler Archer 60'' x 30'' drop-in Heated BubbleMassageE air bath with Bask heated surface - Ice Grey
Brand: Kohler
SKU: 1947-GHW-95
Price: 4589.53 USD
Availability: OutOfStock

Item #: 1947-GHW-95UPC: 885612784421Finish: Ice Grey

$5,399.45 MSRP

Offered in 4 finishes

Selected: Ice Grey

ADAPROP65TITLE24

Description

With Heated BubbleMassage™ hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage experience. This air bath's heated surface warms the back, shoulders and neck with adjustable temperature settings to create a soothing, spa-like environment. Taking its design cues from traditional Craftsman furniture, the KOHLER® Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This 60" x 30" rectangular drop-in air bath offers a low step-over height while allowing for deep, comfortable soaking.

Features

Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust massage intensity to 18 levels
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Textured bottom surface
Coordinates with other products in the Archer collection
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Built-in 60W electric heater included to keep bath surface warm

Materials

Acrylic

Specifications

ADAYes

UOMeach

UPC885612784421

GTIN00885612784421

ShapeRectangle

Width30"

FinishIce Grey

Height19"

Length60"

Weight122.000

MaterialAcrylic

ShippingL:62.66"x W:35.31"x H:22.19" 122 lbs.

OversizedYes

backorderfalse

CollectionArcher

Ship Width62.6600

Made in USAYes

Ship Height22.1900

Ship Length35.3100

Ship Weight122.0000

Product TypeDrop In Air Bathtub

review_count0

stock_statusin_stock

variant_skus1947-GHW-0,1947-GHW-7,1947-GHW-95,1947-GHW-96

Product StyleTraditional

special_orderfalse

Asme StandardsASME A112.19.7/CSA B45.10

Product WarrantyKOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty

Country of OriginUS

Introduction Date4/1/2019

Online Product ID5956193

freight_policy_type4

review_rating_range5

Overall Width Inches30"

release_for_shipment2019-04-01T00:00:00Z

Csa Product StandardsCSA B45.5/IAPMO Z124

Overall Height Inches19"

Overall Length Inches60"

Documents

Revit Family (RFA)DWG Front View DWG Plan View DWG Side View DXF Front View DXF Plan View DXF Side View Installation Guide Installation Guide Parts Diagram Parts Diagram Homeowners Guide Technical Specifications

gerhardsstore.comItem #: 1947-GHW-95

Kohler Archer 60'' x 30'' drop-in Heated BubbleMassageE air bath with Bask heated surface - Ice Grey by Kohler

Hover to zoom

Kohler Archer 60″ x 30″ drop-in Heated BubbleMassageE air bath with Bask heated surface - Ice Grey

Item #: 1947-GHW-95

UPC: 885612784421

Finish: Ice Grey

Offered in 4 finishes

Selected: Ice Grey

Archer® 60'' x 30'' drop-in Heated BubbleMassage™ air bath with Bask® heated surface

Features

Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust massage intensity to 18 levels
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Textured bottom surface
Coordinates with other products in the Archer collection
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Built-in 60W electric heater included to keep bath surface warm

Materials

Acrylic

Installation

Drop-in

Certifications & Compliance

ADA CompliantPROP 65Title 24

Warranty	KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty\|KOHLER® Hydrotherapy Components Five-Year Limited Warranty
Country of Origin	US

Replacement Parts

	Part Number	Description	Price
—	1198993	Assembly, Power Supply	—
	K-1197576	BASK HEATER KIT	$699.46	View
	K-1036221	Cover/Circuit Board Assembly	$372.11	View
—	1032495	Decal, Bubblebath	—
	K-1020677	Gasket, Interface	$5.50	View
	K-1539975	Kohler Genuine Parts Adapter Screen Nipple Service KIT	$149.80	View
	K-1366015	Kohler Genuine Parts Assembly NO Connnections,heated Conduit	$1,953.51	View
	K-1366016	Kohler Genuine Parts Assembly, Inlet Connection	$180.40	View
	K-1366017	Kohler Genuine Parts Assembly, Outlet Connection	$191.18	View
	K-1335464	Kohler Genuine Parts Assembly,water Injection	$342.99	View
	K-1264000	Kohler Genuine Parts Assy, Interface Heated Surface	$175.88	View
	K-1195687	Kohler Genuine Parts Assy. Cable, Heated TUB	$52.79	View
	K-65157	Kohler Genuine Parts NUT, 1.5625-16UNR-2B	$7.45	View
	K-1013469-95	Kohler Genuine Parts TRIM Ring, Interface, CORE - Ice Grey	from $13.15	Biscuit — $13.15 Black Black — $40.54 Dune — $28.67 Ice Grey — $23.77 Thunder Grey — $28.49 White — $13.62
	K-94110	O-Ring	$2.50	View
—	59588	Screw 6-32 X .25	—
—	1013459-E	—	—
—	1153862	—	—
—	1369986	—	—
