Kohler

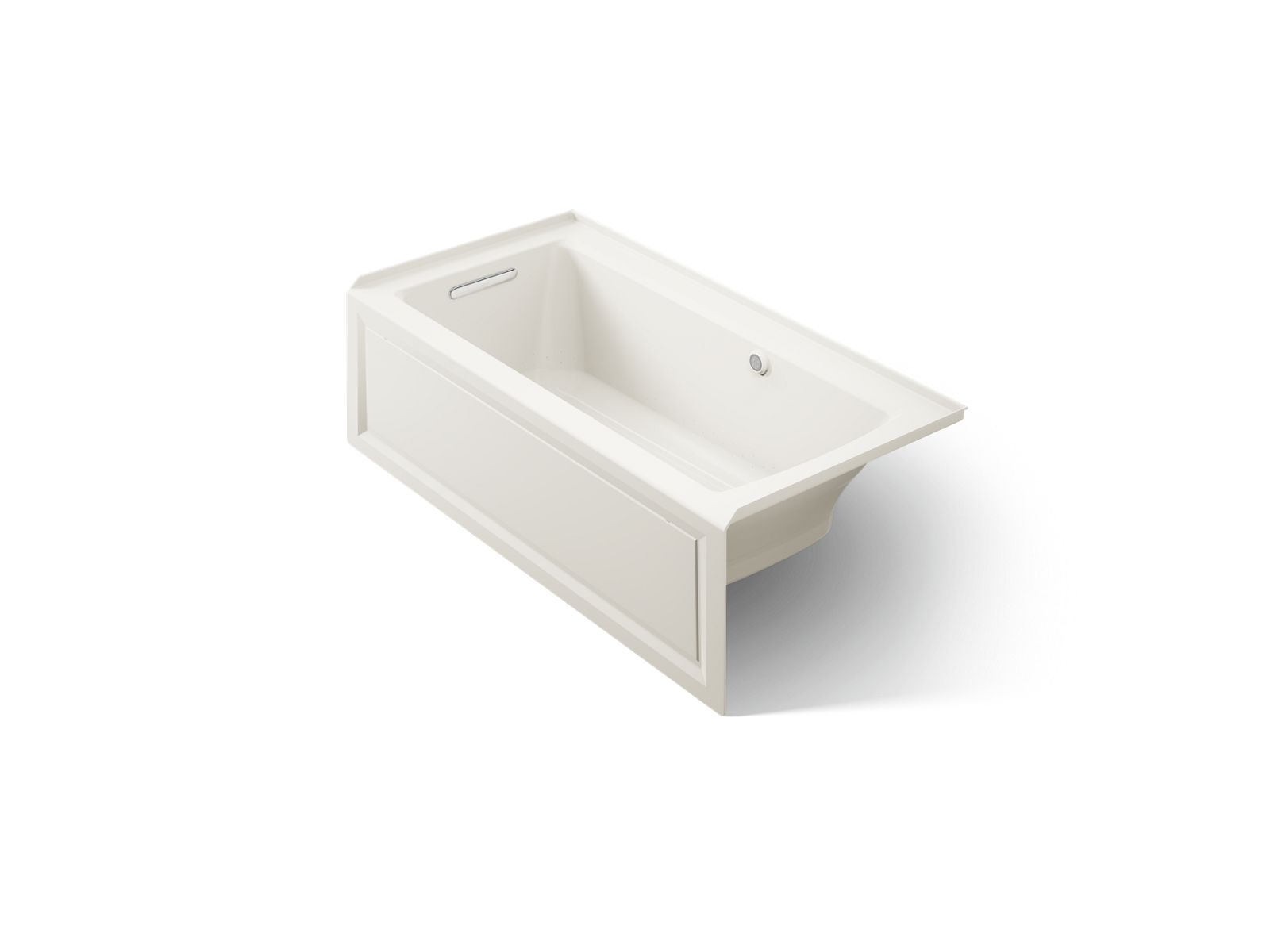

Kohler Archer 60'' x 30'' integral apron Heated BubbleMassageE air bath with Bask heated surface and left-hand drain - Biscuit

Name: Kohler Archer 60'' x 30'' integral apron Heated BubbleMassageE air bath with Bask heated surface and left-hand drain - Biscuit
Brand: Kohler
SKU: 1947-GHLAW-96
Price: 4832.71 USD
Availability: OutOfStock

Item #: 1947-GHLAW-96UPC: 885612783943Finish: Biscuit

$5,685.55 MSRP

Offered in 3 finishes

Selected: Biscuit

ADAPROP65TITLE24

Description

With Heated BubbleMassage™ hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage experience. This air bath's heated surface warms the back, shoulders and neck with adjustable temperature settings to create a soothing, spa-like environment. Taking its design cues from traditional Craftsman furniture, the KOHLER® Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This 60" x 30" rectangular alcove air bath offers a low step-over height while allowing for deep, comfortable soaking.

Features

Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust massage intensity to 18 levels
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Coordinates with other products in the Archer collection
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Built-in 60W electric heater included to keep bath surface warm

Materials

Acrylic

Specifications

ADAYes

UOMeach

UPC885612783943

GTIN00885612783943

ShapeRectangle

Width30"

FinishBiscuit

Height20.25"

Length60"

Weight129.000

MaterialAcrylic

ShippingL:62.66"x W:35.31"x H:22.19" 129 lbs.

OversizedYes

backorderfalse

CollectionArcher

Ship Width62.6600

Made in USAYes

Ship Height22.1900

Ship Length35.3100

Ship Weight129.0000

Product TypeThree Wall Alcove Air Bathtub

review_count0

stock_statusin_stock

variant_skus1947-GHLAW-0,1947-GHLAW-7,1947-GHLAW-95,1947-GHLAW-96

Product StyleTraditional

special_orderfalse

Asme StandardsASME A112.19.7/CSA B45.10

Product WarrantyKOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty

Country of OriginUS

Introduction Date4/1/2019

Online Product ID5956145

freight_policy_type4

review_rating_range5

Overall Width Inches30"

release_for_shipment2019-04-01T00:00:00Z

Csa Product StandardsCSA B45.5/IAPMO Z124

Overall Height Inches20-1/4"

Overall Length Inches60"

Documents

Revit Family (RFA)DWG Front View DWG Plan View DWG Side View DXF Front View DXF Plan View DXF Side View Installation Guide Installation Guide Parts Diagram Parts Diagram Homeowners Guide Technical Specifications

gerhardsstore.comItem #: 1947-GHLAW-96

Kohler Archer 60'' x 30'' integral apron Heated BubbleMassageE air bath with Bask heated surface and left-hand drain - Biscuit by Kohler

Hover to zoom

Kohler Archer 60″ x 30″ integral apron Heated BubbleMassageE air bath with Bask heated surface and left-hand drain - Biscuit

Item #: 1947-GHLAW-96

UPC: 885612783943

Finish: Biscuit

Offered in 3 finishes

Selected: Biscuit

Archer® 60'' x 30'' integral apron Heated BubbleMassage™ air bath with Bask® heated surface and left-hand drain

Features

Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust massage intensity to 18 levels
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface
Coordinates with other products in the Archer collection
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Built-in 60W electric heater included to keep bath surface warm

Materials

Acrylic

Installation

Alcove

Certifications & Compliance

ADA CompliantPROP 65Title 24

Warranty	KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty\|KOHLER® Hydrotherapy Components Five-Year Limited Warranty
Country of Origin	US

Replacement Parts

	Part Number	Description	Price
—	1198993	Assembly, Power Supply	—
	K-1038690	Assembly, Vent	$223.56	View
	K-1197576	BASK HEATER KIT	$699.46	View
	K-1036210	Blower Kit	$1,412.09	View
	K-1194940	Cable, Keypad	$45.45	View
—	K-1363972	Cable, Network	$36.64	View
	K-1036221	Cover/Circuit Board Assembly	$372.11	View
—	1032495	Decal, Bubblebath	—
	K-1020677	Gasket, Interface	$5.50	View
	K-1036214	Kit, Blower - Csa	$985.84	View
	K-1264000	Kohler Genuine Parts Assy, Interface Heated Surface	$175.88	View
	K-1195687	Kohler Genuine Parts Assy. Cable, Heated TUB	$52.79	View
	K-1407096	Kohler Genuine Parts Blower, 120V NO HEAT	$605.45	View
	K-1201762	Kohler Genuine Parts Coupler, Inline RJ45	$17.40	View
	K-1249210	Kohler Genuine Parts KIT, Blower 1-1/2 Union	$40.50	View
	K-1036218	Kohler Genuine Parts KIT, Check Valve Assembly	$434.38	View
	K-65157	Kohler Genuine Parts NUT, 1.5625-16UNR-2B	$7.45	View
	K-1022368	Kohler Genuine Parts Reducer, 1.5 X 1.0 PVC	$5.90	View
	K-1013469-96	Kohler Genuine Parts TRIM Ring, Interface, CORE - Biscuit	from $13.15	Biscuit — $13.15 Black Black — $40.54 Dune — $28.67 Ice Grey — $23.77 Thunder Grey — $28.49 White — $13.62
	K-94110	O-Ring	$2.50	View
—	1036212	RITE-TEMP(r) DEEP ROUGH-IN	—
—	59588	Screw 6-32 X .25	—
	K-95045	Screw, 8 X .75	$2.30	View
—	1013459-E	—	—
—	902049	—	—
—	1153862	—	—
