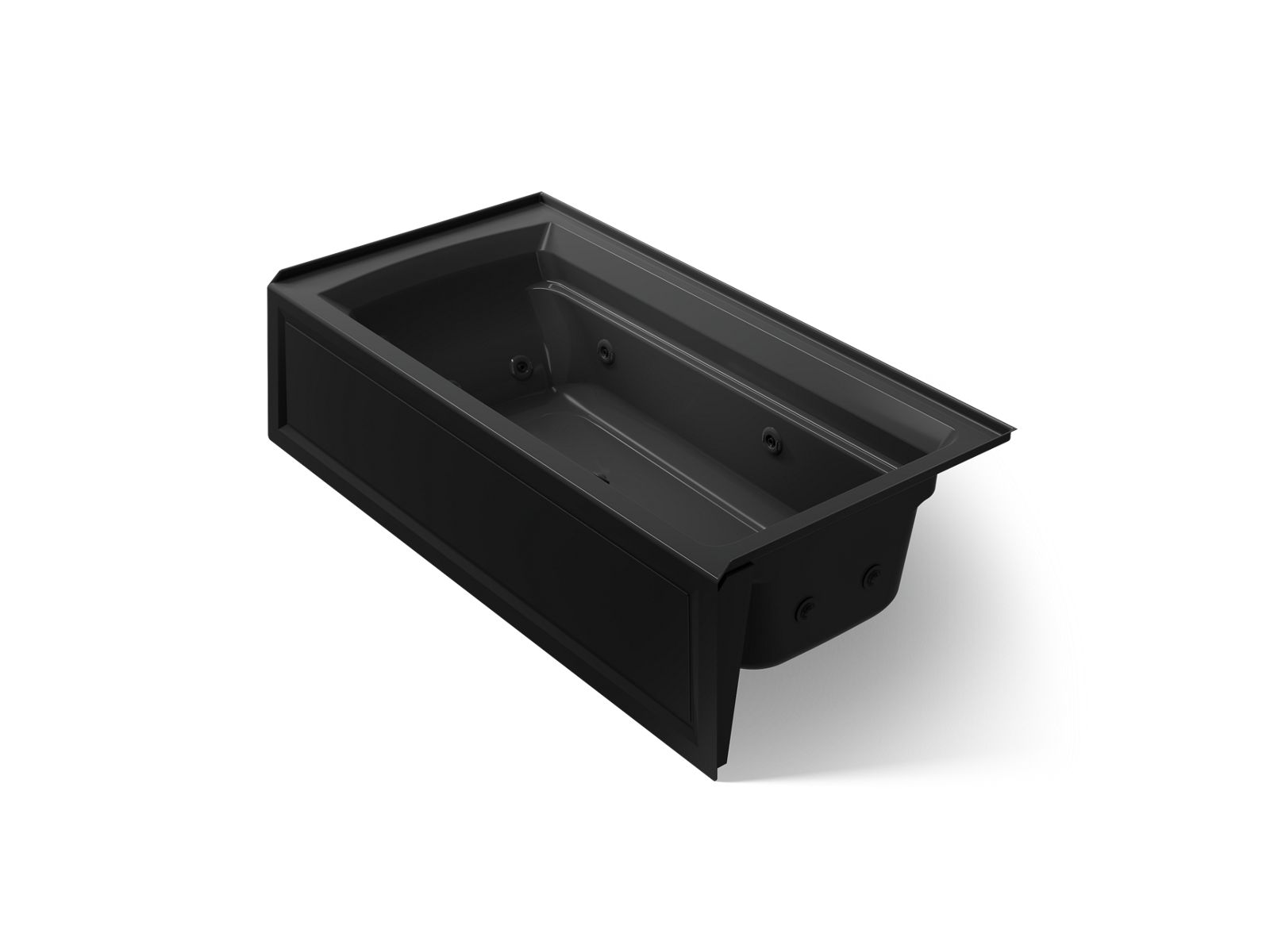

Kohler Archer 72'' x 36'' alcove whirlpool bath, right drain - Black

Name: Kohler Archer 72'' x 36'' alcove whirlpool bath, right drain - Black
Brand: Kohler
SKU: 1124-HR-7
Price: 4403.72 USD
Availability: OutOfStock

Item #: 1124-HR-7UPC: 650531521439Finish: Black

$5,180.85 MSRP

Offered in 4 finishes

Selected: Black

ADAPROP65TITLE24

Description

Taking its design cues from traditional Craftsman furniture, the KOHLER® Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This 72" x 36" rectangular alcove bath offers a low step-over height while allowing for deep, comfortable soaking. Whirlpool jets relax away the day's tension as a built-in heater keeps your water at the perfect temperature.

Features

Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Built-in heater
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Generous length provides a spacious bathing area
Integral lumbar support
Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface

Materials

Acrylic

Specifications

ADAYes

UOMeach

UPC650531521439

GTIN00650531521439

ShapeRectangle

Width36"

FinishBlack

Height20.5"

Length72"

Weight160.000

MaterialAcrylic

ShippingL:74.78"x W:38.84"x H:22.44" 160 lbs.

OversizedYes

backorderfalse

CollectionArcher

Product LineArcher

Product TypeThree Wall Alcove Whirlpool Bathtub

review_count0

stock_statusout_of_stock

variant_skus1124-HR-0,1124-HR-7,1124-HR-95,1124-HR-96

Product StyleTraditional

special_orderfalse

Asme StandardsASME A112.19.7/CSA B45.10

Product WarrantyKOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty

Country of OriginUS

Introduction Date2/6/2007

Online Product ID544558

freight_policy_type4

review_rating_range5

Overall Width Inches36"

release_for_shipment2007-02-06T00:00:00Z

Csa Product StandardsCSA B45.5/IAPMO Z124

Overall Height Inches20-1/2"

Overall Length Inches72"

Documents

3D DWG Symbol 3D DXF Symbol 3D Model (3DS)3D Model (OBJ)Revit Family (RFA)SketchUp Model (SKP)DWG Front View DWG Front View DWG Plan View DWG Plan View DWG Side View DWG Side View DXF Front View DXF Front View DXF Plan View DXF Plan View DXF Side View DXF Side View Installation Guide Parts Diagram Parts Diagram Homeowners Guide Homeowners Guide Technical Specifications

gerhardsstore.comItem #: 1124-HR-7

Kohler Archer 72'' x 36'' alcove whirlpool bath, right drain - Black by Kohler

Hover to zoom

Kohler Archer 72″ x 36″ alcove whirlpool bath, right drain - Black

Item #: 1124-HR-7

UPC: 650531521439

Finish: Black

Offered in 4 finishes

Selected: Black

Archer® 72'' x 36'' alcove whirlpool bath, right drain

Features

Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Built-in heater
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Generous length provides a spacious bathing area
Integral lumbar support
Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Textured bottom surface

Materials

Acrylic

Installation

Alcove

Certifications & Compliance

ADA CompliantPROP 65Title 24

Warranty	KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty\|KOHLER® Hydrotherapy Components Five-Year Limited Warranty
Country of Origin	US

Replacement Parts

	Part Number	Description	Price
—	90105	Air Switch Assembly	—
	K-91967	Assembly, Check Valve	$25.92	View
	K-1069647	Assembly, Overflow	$80.50	View
	K-1068204	Cartridge Assembly for Drain	$10.65	View
—	96895	Cover, Suction	—
	K-1069646	Drain Elbow	$3.20	View
	K-67429	Flange	$7.95	View
	K-96708	Flange, Suction	$8.85	View
—	65156	Flange, Switch	—
—	91575	Flange, Switch	—
	K-1146912	Flex Tube, 3/8"	$2.28	View
	K-1068203	Gasket	$2.45	View
	K-1064431	Gasket	$13.60	View
	K-65886	Gasket, Tapered	$5.05	View
	K-65885	Gasket, Tapered	$6.17	View
	K-1008241	Gasket, Tapered	$3.39	View
—	67668	Gasket, Tapered	—
	K-1070940	Hex Wrench	$2.35	View
	K-1011001	Jet Flange Tool	$285.57	View
	K-1008239	Jet Flange, Retail	$4.95	View
	K-1013249	Jet Nozzle	$4.71	View
	K-1013250	Jet Nozzle Nut	$4.54	View
	K-1287280	Kit, Manifold	$193.80	View
	K-93838	Kohler Genuine Parts 1 PVC Tube, Service KIT	$53.58	View
	K-93839	Kohler Genuine Parts 1.25 PVC TUBE Service KIT	$264.57	View
	K-93836	Kohler Genuine Parts 1/2 PVC TUBE Service KIT	$46.16	View
	K-1068525-2MB	Kohler Genuine Parts Assembly, Cover - Vibrant Brushed Moderne Brass	from $65.05	French Gold — $80.40 Matte Black — $154.65 Polished Chrome — $65.05 Polished Nickel — $80.30 Vibrant Brushed Bronze — $85.30 Vibrant Brushed Moderne Brass — $105.90 Vibrant Brushed Nickel — $82.00 Vibrant Finish — $77.65 Vibrant Polished Rose Gold — $134.85 Vibrant Titanium — $94.35
	K-65061-AF	Kohler Genuine Parts Cover, Suction - French Gold	from $106.95	Brushed Black Pvd — $158.15 Brushed Chrome — $163.50 French Gold — $111.95 Polished Chrome — $106.95 Polished Nickel — $195.90 Vibrant Brushed Bronze — $180.30 Vibrant Brushed Nickel — $162.27 Vibrant Finish — $195.90
	K-67889	Kohler Genuine Parts Housing Assy, PVC JET	$23.40	View
	K-93685	Kohler Genuine Parts Housing Assy, Suction	$30.40	View
	K-1101695-NY	Kohler Genuine Parts JET Handle Assembly - Dune	$12.87	View
	K-1008238	Kohler Genuine Parts JET Housing, Retail	$20.09	View
	K-1015255-7	Kohler Genuine Parts JET TRIM KIT - Black Black	from $73.89	Almond — $76.24 Biscuit — $86.85 Black Black — $73.89 Ice Grey — $73.89 White — $85.55
	K-1147742-7	Kohler Genuine Parts KIT, AIR Switch - Black Black	from $24.75	Almond — $34.02 Biscuit — $24.75 Black Black — $41.40 Cashmere — $41.40 Dune — $42.90 White — $28.80
	K-1330132	Kohler Genuine Parts KIT, Manifold, 2 BARB	$452.70	View
	K-65157	Kohler Genuine Parts NUT, 1.5625-16UNR-2B	$7.45	View
	K-1052481	Kohler Genuine Parts PVC TEE - 1 1/2 SCH. 40	$6.17	View
	K-1045715-P	Kohler Genuine Parts Packet, Dc-111 LUBE	$3.40	View
	K-65226-7	Kohler Genuine Parts Plug, Suction Cover - Black Black	from $4.10	Biscuit — $4.38 Black Black — $4.38 Desert Bloom — $4.38 Ice Grey — $4.38 Tender Grey — $4.38 Thunder Grey — $4.10 White — $4.60
	K-30739	Kohler Genuine Parts Removal Tool, DIR. BALL	$8.20	View
	K-65054-BA	Kohler Genuine Parts Screw, 10-24 X 3.25 - Vib Bright Bronze	from $4.50	Brushed Black Pvd — $8.25 Polished Stainless — $7.63 Vib Bright Bronze — $5.60 Vib Bright Nickel — $7.29 Vibrant Bright French Gold — $4.50 Vibrant Finish — $8.15
	K-94853	Kohler Genuine Parts Service KIT, 1 1/2 FLEX	$40.30	View
	K-1068202-2BL	Kohler Genuine Parts Stopper - Blackened Bronze	from $33.95	Blackened Bronze — $74.95 Brushed Chrome — $39.50 French Gold — $43.30 Matte Black — $62.30 Polished Chrome — $33.95 Polished Nickel — $41.40 Vibrant Brushed Bronze — $37.30 Vibrant Brushed Moderne Brass — $49.65 Vibrant Brushed Nickel — $39.05 Vibrant Finish — $43.40 Vibrant Moderne Brushed Gold — $53.20 Vibrant Moderne Polished Gold — $47.70 Vibrant Polished Rose Gold — $49.05 Vibrant Titanium — $47.05
	K-88532-7	Kohler Genuine Parts TRIM RING KIT - Black Black	from $34.42	Almond — $50.13 Biscuit — $34.62 Black Black — $50.13 Dune — $50.13 Ice Grey — $50.13 Sandbar — $50.13 White — $34.42
	K-88530-7	Kohler Genuine Parts TRIM RING KIT - Black Black	from $37.10	Almond — $55.89 Biscuit — $41.10 Black Black — $89.55 Cashmere — $62.10 Ice Grey — $55.89 Sandbar — $55.89 White — $37.10
	K-88531-BKB	Kohler Genuine Parts TRIM RING KIT - Brushed Black Pvd	from $179.28	Brushed Black Pvd — $254.10 Polished Chrome — $179.28 Vibrant Brushed Nickel — $250.20 Vibrant Finish — $244.00
	K-88529-AF	Kohler Genuine Parts TRIM RING KIT - French Gold	from $137.85	Brushed Black Pvd — $260.40 French Gold — $250.30 Polished Chrome — $137.85 Polished Nickel — $250.30 Vibrant Brushed Bronze — $256.60 Vibrant Brushed Nickel — $256.60 Vibrant Finish — $250.30
	K-1011032-0	Kohler Genuine Parts TRIM RING KIT, Large Orifice - White	from $34.42	Biscuit — $37.93 White — $34.42
	K-1011031-0	Kohler Genuine Parts TRIM RING KIT, Large Orifice - White	from $30.60	Biscuit — $44.64 White — $30.60
	K-1003065	Kohler Genuine Parts Tool, Suction Flange	$462.04	View
	K-1020609	Kohler Genuine Parts Tube, 1/16 ID, 6 FT. LONG	$3.87	View
	K-1086350	Kohler Genuine Parts Wrench, Flange Removal	$200.43	View
	K-1044609	Nut	$3.09	View
	K-65451	O-Ring	$2.30	View
	K-67665	Pipe Plug-1"	$4.54	View
	K-1065165	Plate, Mounting	$10.75	View
	K-73518	Plug, 1.5" Pvc	$10.10	View
	K-43165	Screw 8-32 X 1.13	$4.70	View
	K-1044607	Seal	$2.30	View
	K-1070521	Seal	$2.35	View
	K-1044608	Socket Joint	$2.75	View
	1145781	Sterling Plumbing 25R Fitting Union TEE, 3/8	$2.37	View
	K-1265445	Tool, Jet Removal	$11.20	View
	K-1226809	V-Jet Housing	$10.55	View
—	73584	—	—
—	73521	—	—
—	93766	—	—
—	93837	—	—
—	73513	—	—
—	67594	—	—
—	1068201	—	—
—	1067596	—	—
—	1010571	—	—
—	60050	—	—
